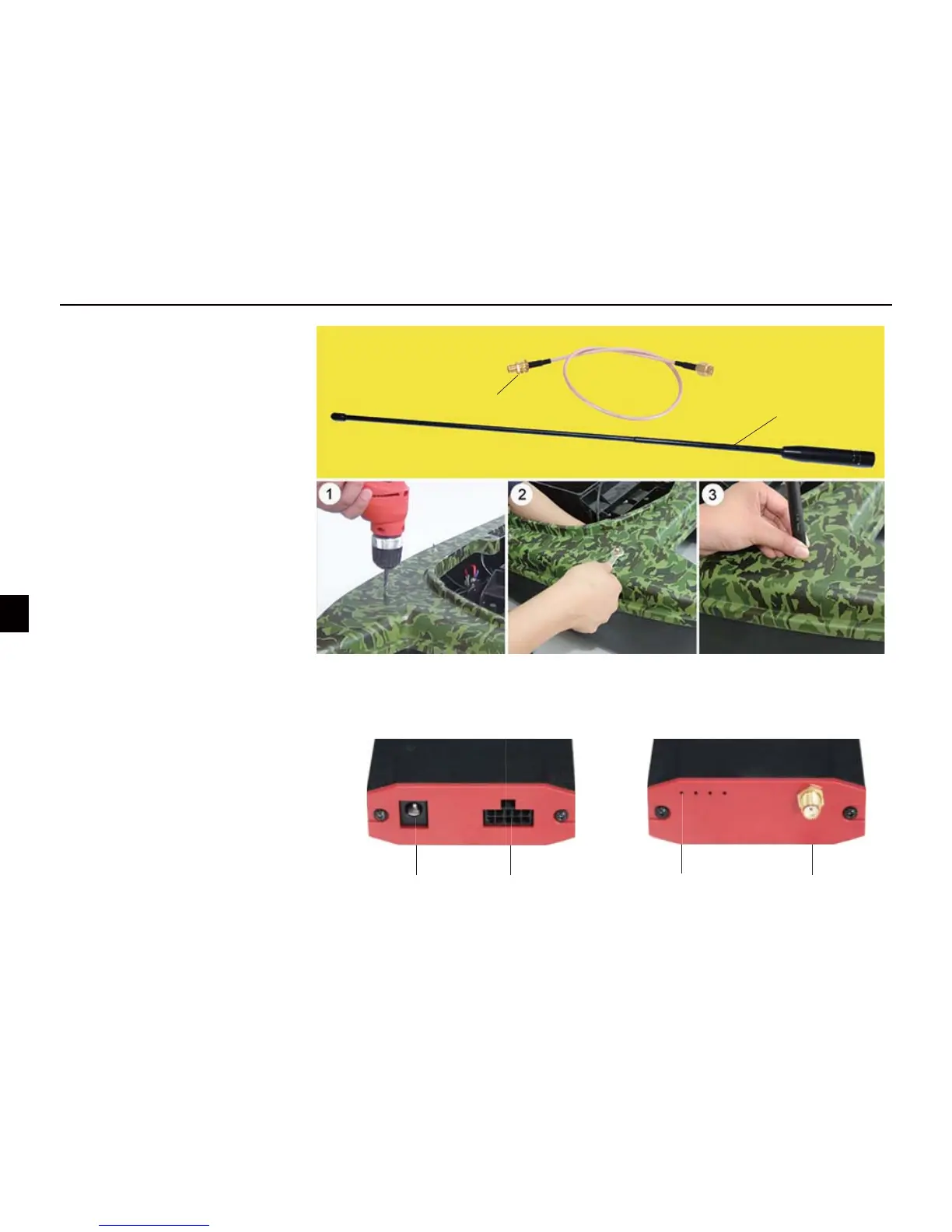

1) Drill an hole (5mm diameter)
on the selected position.
2) Screw down the wisher and
nut from the feeder cable , then
hold the cable through the hole
from inner housing, and Screw
tighted the nut by an wrench.
3) Screw the antenna on boat
feeder cable
signal
indicator
connected to
antenna with
feeder cable
antenna for CCU
Antenna Installation
After all the installatiion are
nished, please connect the
parts (transducer, antenna,
battery) to the CCU.
Then x the CCU inner the
boat.
Wiring
Installation (antenna & wiring)
connected
to battery
connected to
transducer with
converision cable
To Next Page
