19
T
echnical Information
Service Manual

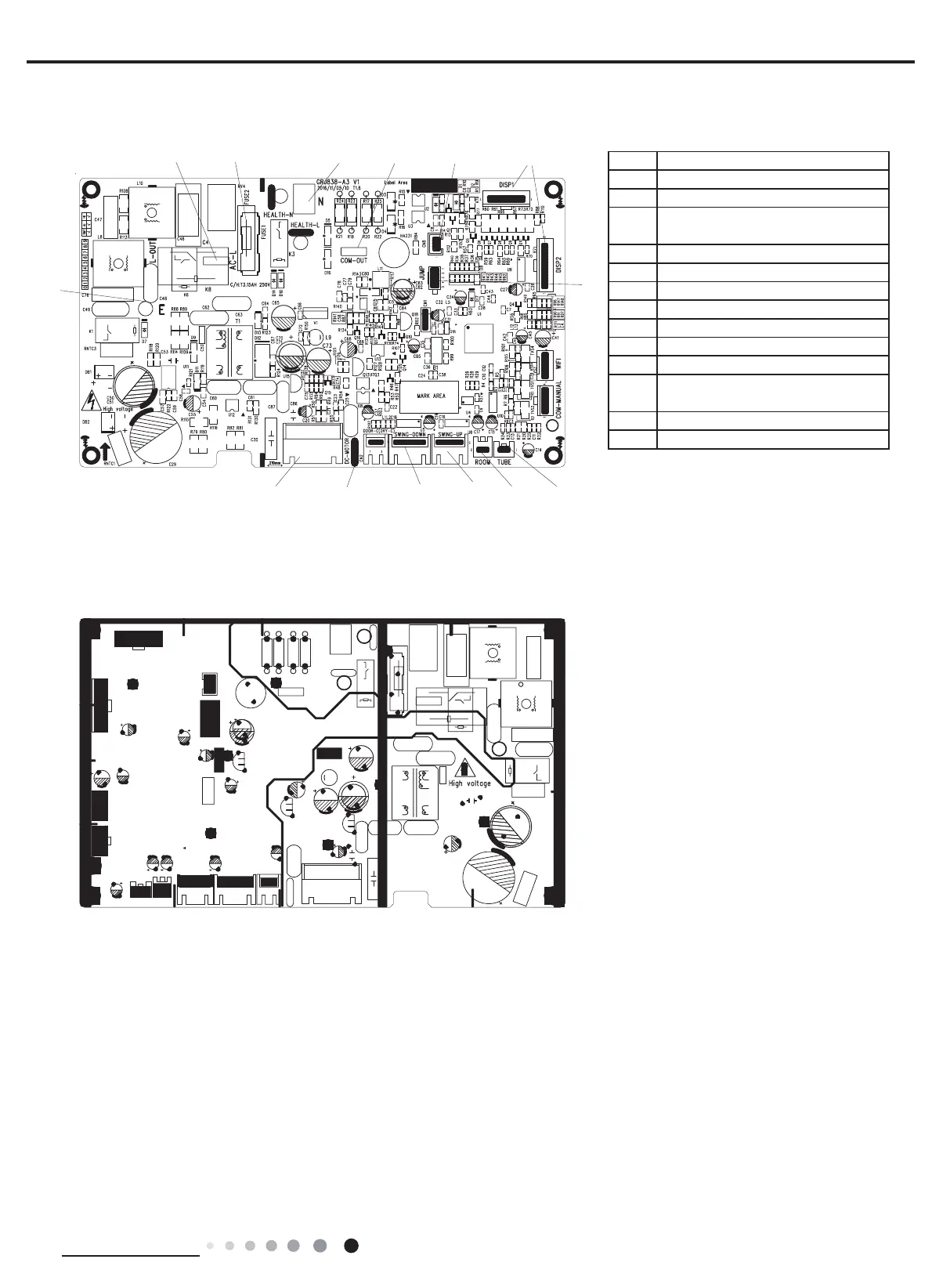

CONSOLE type for 09/12/18K Unit
●TOP
VIEW
●BOTTOM VIEW
12
34
56
7
8
9
10
11
12
13
14
1
live wire
2
Fuse
3
neutral wire
4
Interface of indoor unit and outdoor
unit communication
5
down swing
6
Interface of display
7
Jumper cap
8
tube temperature sensor
9
Ambient temperature sensor
10
Up swing
11
Down swing
12
Interface of shielding wire of motor
cover
13
Interface of DC motor
14
Earthing wire
20
22
Table of Contents
Table of Contents
2
Part Ⅰ : Technical Information
3
Summary
3
Specifications
4
Specification Sheet
4
Noise Criteria Curve Tables for both Models
9
Outline Dimension Diagram
11
Refrigerant System Diagram
13
Electrical Part
14
Wiring Diagram
14
PCB Printed Diagram
17
Function and Control
22
Remote Controller Introduction off YAA1FB1F
22
Remote Controller Introduction off YT1FF(MOTO)
26
Brief Description of Modes and Functions
30
Part Ⅱ : Installation and Maintenance
33
Notes for Installation and Maintenance
33
Installation
36
Maintenance
50
Trouble Table
50
Maintenance Method for Normal Malfunction
56
Exploded View and Parts List
58
Removal Procedure
74
Appendix
83
Appendix 1: Reference Sheet of Celsius and Fahrenheit
83
Appendix 2: Pipe Expanding Method
83
Appendix 3: List of Resistance for Temperature Sensor
85
