Installation and Maintenance
Service Manual

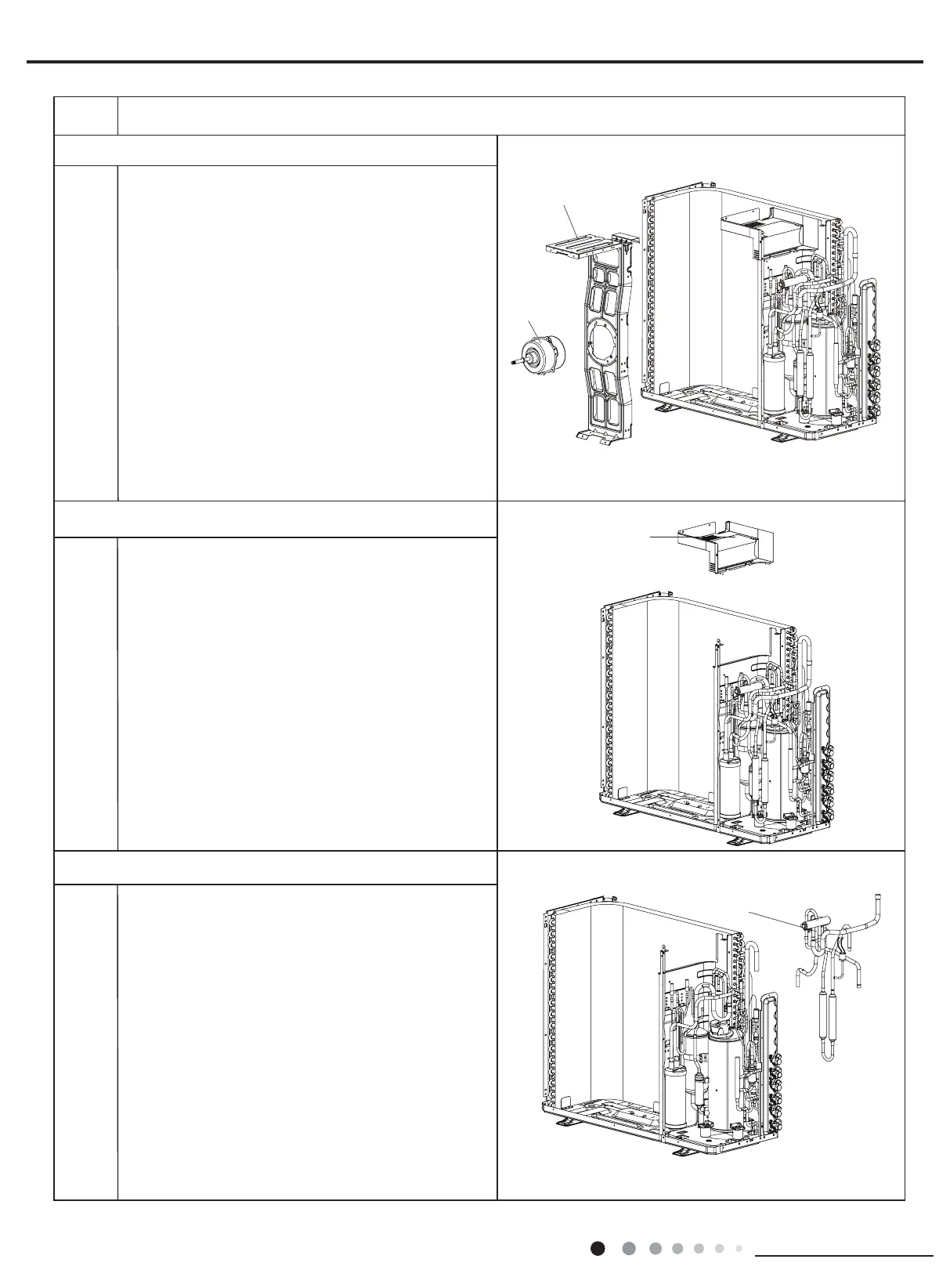

Steps Procedure
motor support
clapboard sub-assy
Remove 4 screws fixing clapboard sub-assy,and
then remove the clapboard sub-assy.
8. Remove clapboard sub-assy
7. Remove motor and motor support
motor
Remove 4 screws xing motor,and then remove the
motor;
Remove 2 screws connecting motor support and
chassis, loosen damper block and then remove the
motor support.
4-way valve
Unsolder the spot weld between 4-way valve and
vapour liquid separator, compressor cut-off valve
sub-assy and condenser, and then remove the 4-way
valve.
Note: When unsoldering the spot weld, wrap the
4-way valve with wet cloth completely to avoid
damage to valve due to high temperature.
9. Remove 4-way valve
