Installation and Maintenance
Service Manual
Steps Procedure
grille
right side plate

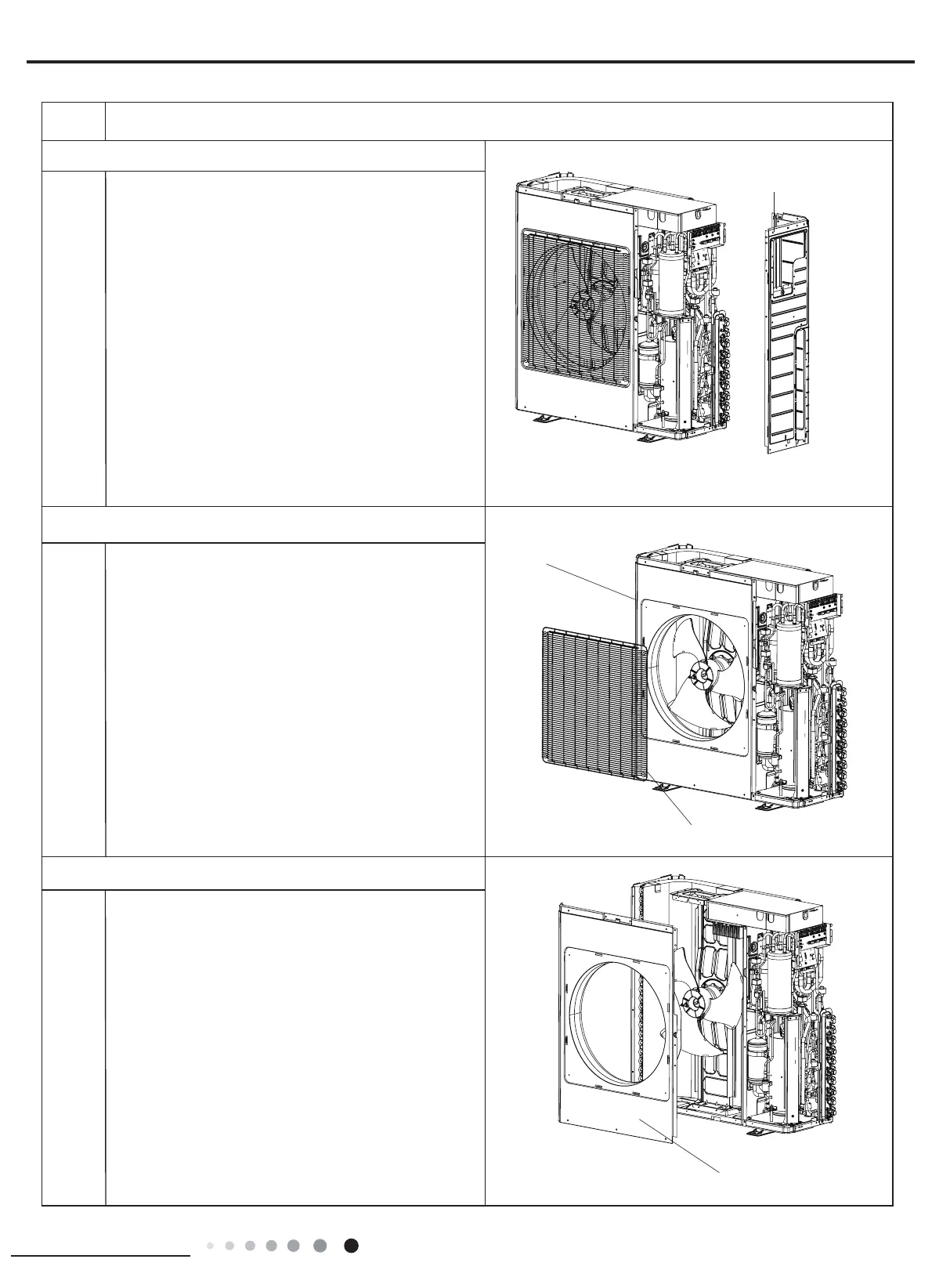

Remove the screws connecting the right side plate
with electric box assy, valve support, chassis and
condenser side plate, and then remove the right
side plate.
Remove the 4 screws connecting the grille and
outer case, and then remove the panel grille.
5.Remove right side plate
6.Remove grille and cabinet
cabinet
outer case
Remove screws connecting outer case and motor
support, middle isolation sheet and chassis, pull the
outer case upwards slightly, loosen clasps between
outer case and right side plate, left side plate, and
then remove the outer case.
7. Remove outer case
To Next Page
