Total 74-00 - Page 12

MAINTENANCE INSTRUCTIONS
HALON 1 / 1,2 / 2,5 AIR TOTAL
ATA 26-24-05 I 74/76-00 dated May 2014
Page 12 of 13
Subject to change without notice Replaces H 74/76-00 dated October 2012
Release: May 2014
60, 70
Item
No.
Part No.
Ident No.
Airlines
part No.
Description
EFF-
Code
Number
per unit
1
74-00
0821166
Extinguisher HAL 1
A
1A
74-20
0821164
Extinguisher HAL 1,2
B
1A
74-21
0821226
Extinguisher HAL 1,2 (LH)
B
1B
76-00
0821165
Extinguisher HAL 2,5
C
20
E000-02785
0120101
O-ring
1
30
0074-45
0240166
Instruction label
1
40
0074-46
0240169
Check note label
1
40A
0074-47
0255479
Protective foil
1
50
0074-U12
0621087
Valve assembly HAL 1 / 1,2
A, B
1
50A
0076-U04
0621303
Valve assembly HAL 2,5
C
1
60
E000-11936
220295
Copper seal wire
A,B,C
1
70
E000-00101
120006
Plastic seal green
A,B,C
1
220
0074-U07-1
0621088
Siphon tube HAL 1 / 1,2
A, B
1
220A
0076-U14
0621029
Siphon tube HAL 2,5
C
1
230
0140-00
0621139
Bracket HAL 1 / 1,2 *
A, B
1
230A
0119-2
0621101
Bracket HAL 2,5 *
C
1
230B
0140-02-1000
0254303
Bracket HAL 1,2 (LH) *
B
1
230C
0140-03-1000
0255295
Bracket HAL 1,2 CFK (LH) *
B
1
240
0140-U51
0254076
Fastening strap HAL 1 / 1,2
A, B
1
240A
0119-2-U51
0254077
Fastening strap HAL 2,5
C
1
240B
0140-02-1010
0254304
Fastening strap HAL1,2 (LH)
B
1

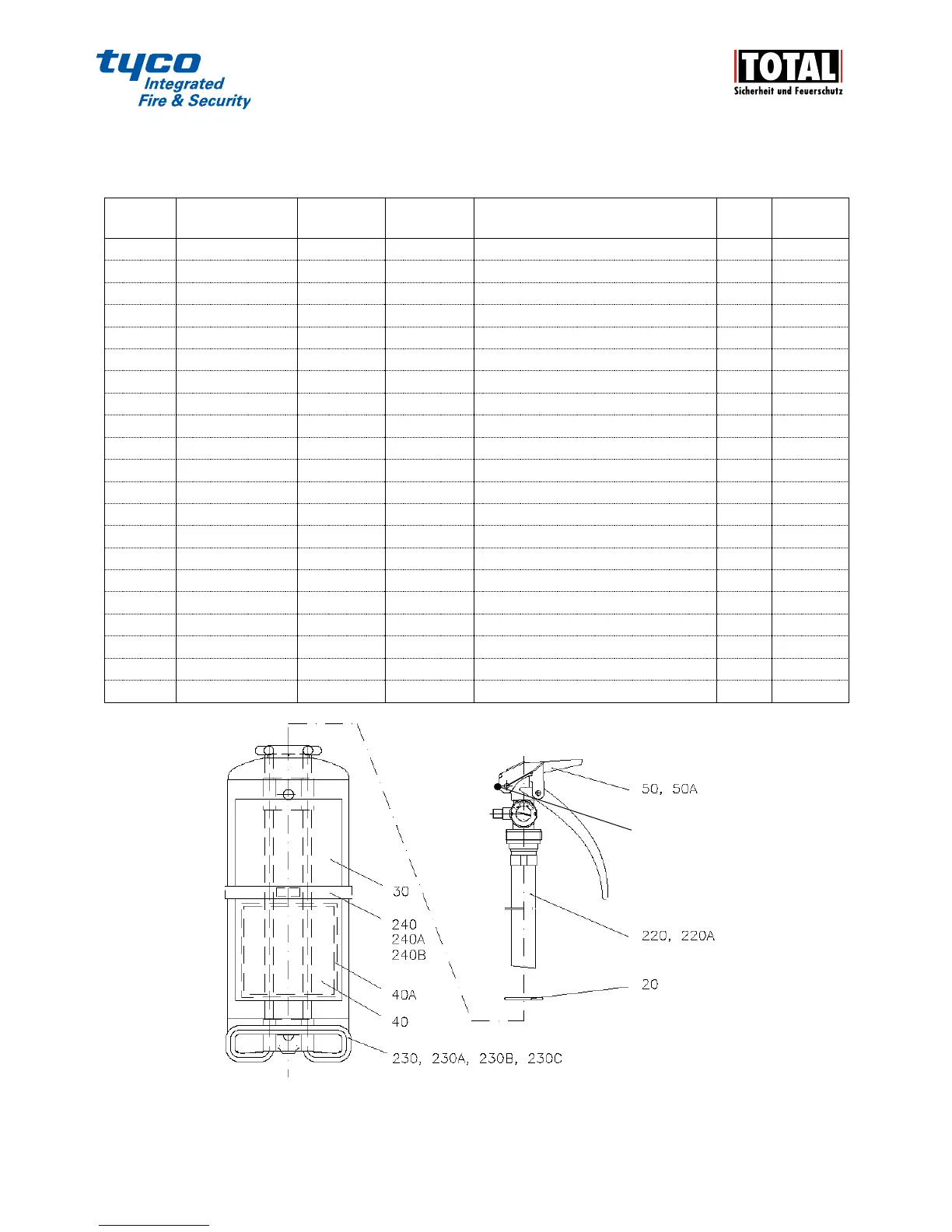

Illustration 3 (Fire extinguisher parts)
* installation with fastening strap
