Total TP880-1 - Engine Oil and Lubrication; Engine Oil Change; Ramming System Lubrication

6.3.3 Remove the oil fill plug (a) and drain plug (b) to drain oil．
6.3.4 Install the drain plug (b)．
6.3.5 Fill the engine crankcase with recommended oil up to the level of the plug opening
(c)．Do not thread in the dipstick to check the level．See Technical Data for oil quantity
and type．
6.3.6 Install the oil filler plug (a)．

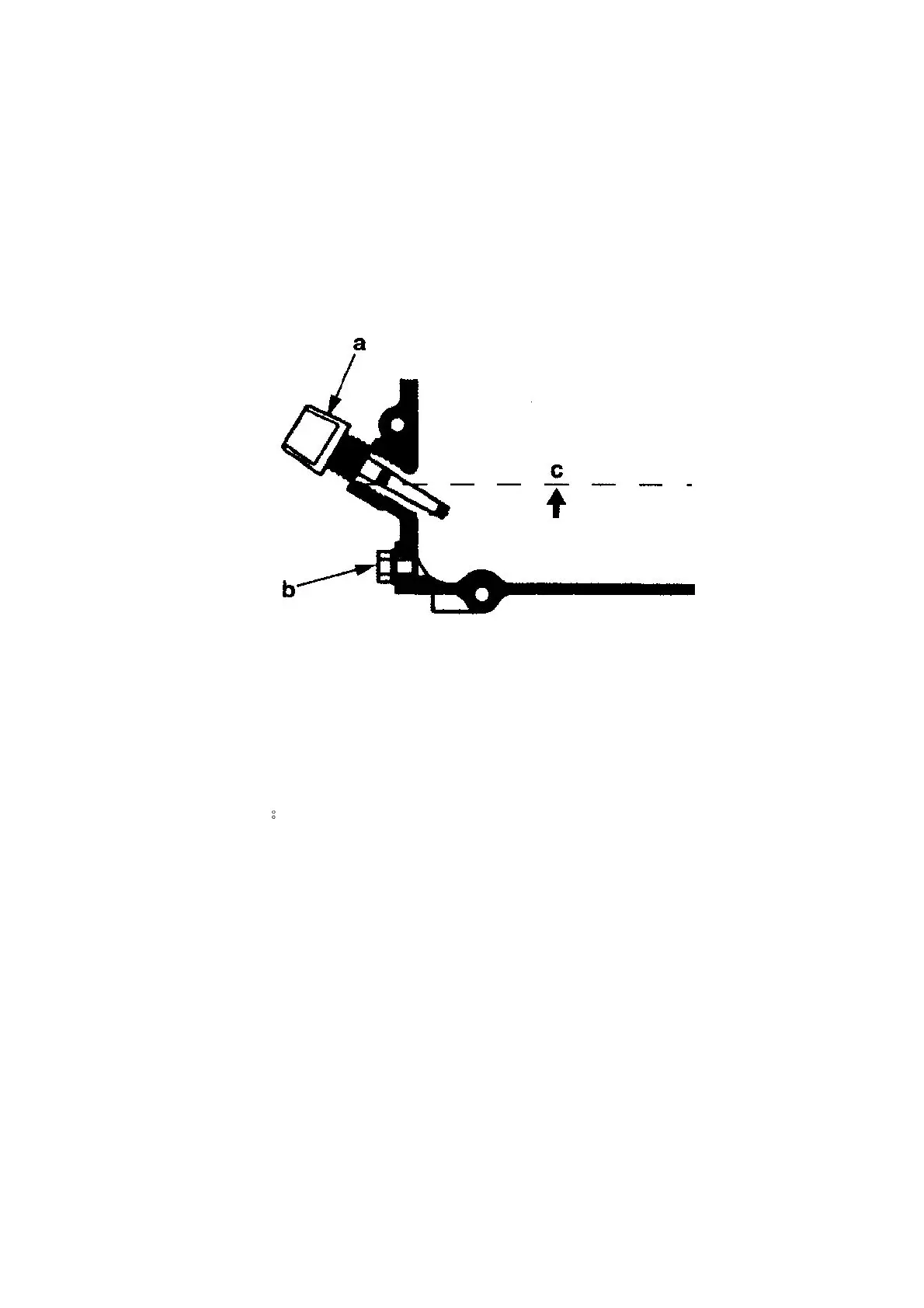

Graphic 6
6.4 LUbrication
See Graphic 7
Ramming system
Check oil level ：
6.4.1 Place the rammer so it is resting on its shoe on a level surface．
6.4.2 Check the oil level through oil sight glass (d)．Proper ramming system lubrication is
indicated when approximately 1/2-3/4 of the sight glass is full．
6.4.3 If the oil is not visible, oil must be filled through the filling oil mouth (f)，then see the
technical Data for oil quantity and type through oil sight glass(d)．
6.4.4 Wrap the filling oil plug with Teflon tape．Install the filling oil plug (f)．Torque to 9
Nm．
