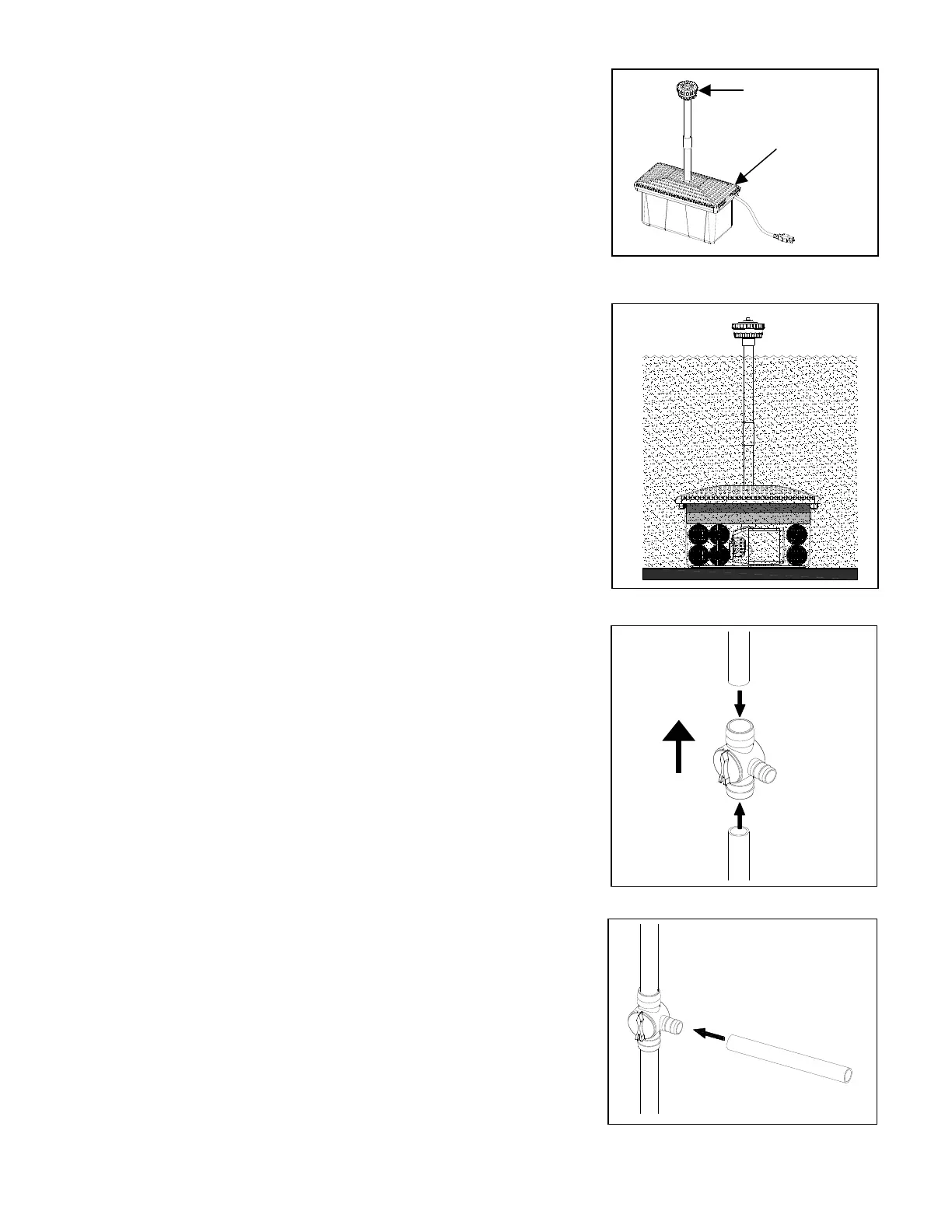

7. Connect the fountain head on the top extension tube. Fig. 7
Fig. 7
8. Place the filter assembly in the water. Fig. 8
Fig. 8
9. Connect the extension tubes to the diverter valve. Make sure
the arrow on the valve is positioned as shown and the diverter
valve is connected as shown. Fig. 9
NOTE : Use diverter valve to simultaneously run a spitter
and fountain head from one pump.
.
Fig. 9
10. For 1/2 in. tubing, connect the tubing onto the second output
of the diverter valve. Connect the other end of the tubing to a
spitter or other water feature. Fig. 10
NOTE: Tubing and spitter are NOT INCLUDED.
Fig. 10
