Remove
the front
housing
Push and hold
internal lock with
a screwdriver
Receiver
Transmitter link via radio frequency
Supply 230v 50Hz
Current rating 5A (resistive) @ 230v AC
Max. ambient temperature 55
0
C
LED indicator for learning / output status
Recessed button for ID learning
Connections:
1 – Neutral input
2 – Live input
3 – Common input
4 – Normally open output
Applicable regulatory compliance:
CE directive : Electromagnetic compatibility & Low Voltage
R & TTE directive: Radio and Telecommunications Terminal Equipment
Battery insertion:

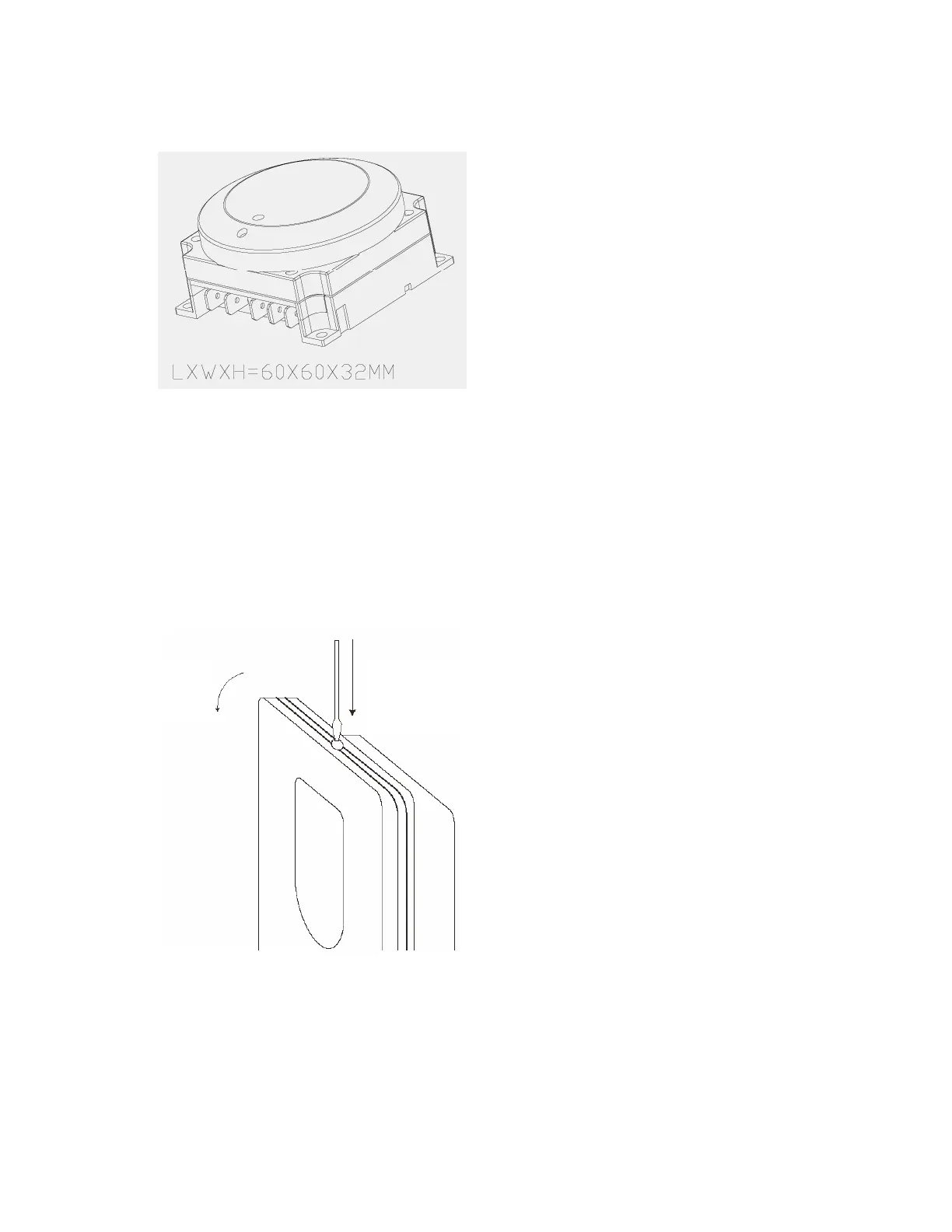

To separate the two halves of the outer housing follow the diagram below. Insert the
batteries into the battery compartment. Ensure batteries are fitted with the correct
polarity.
