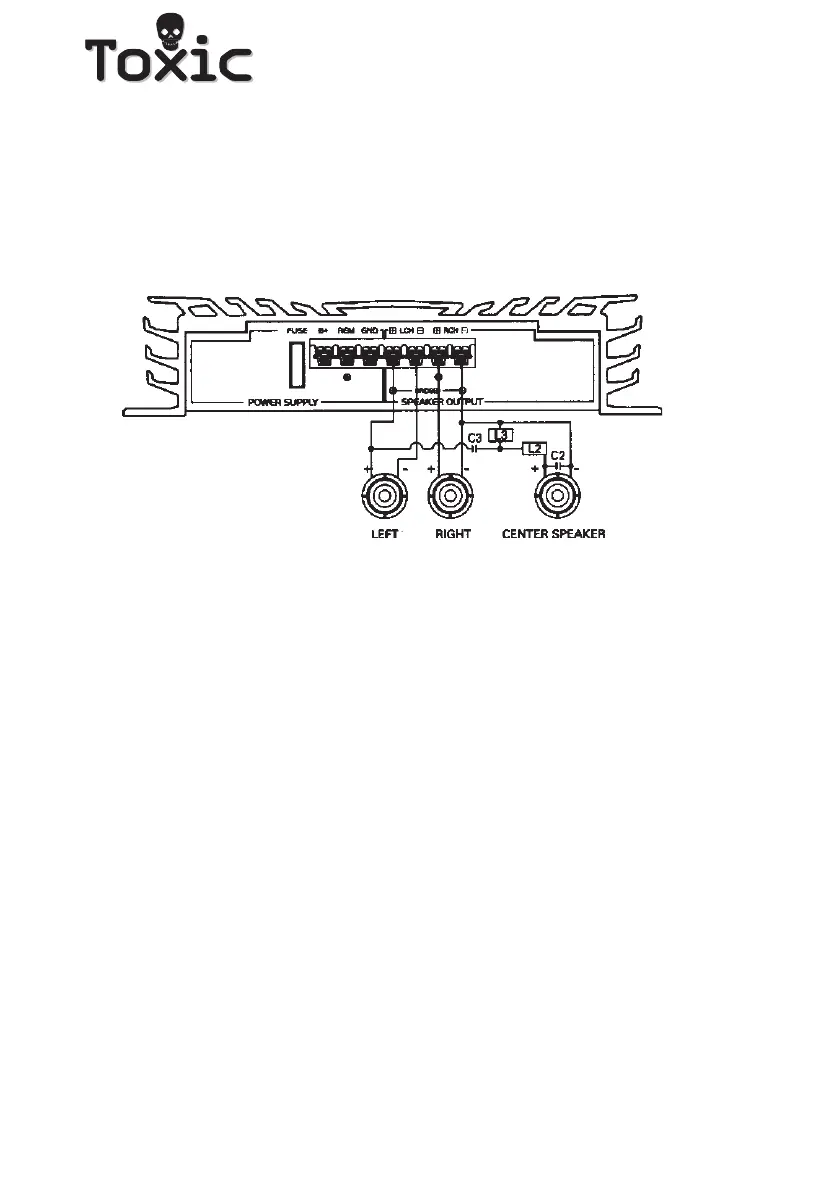

Tri-mode with center loudspeaker for 2-channel amplifiers:
The following component values are recommended:
C = condenser / L = coil
C = 330 uF bipolar capacitor
L1 = 10 mH C1 = 100 uF for 4 ohm subwoofer
L1 = 15 mH C1 = 100 uF for 8 ohm subwoofer
L2 = 9 mH C2 = 68 uF for 8 ohm centre speaker
L = 0,3 mH C3 = 2.2 uF
