2002MY ECHO (U) L/O0109
211
2002 ECHO (OM52463U)
SU73037

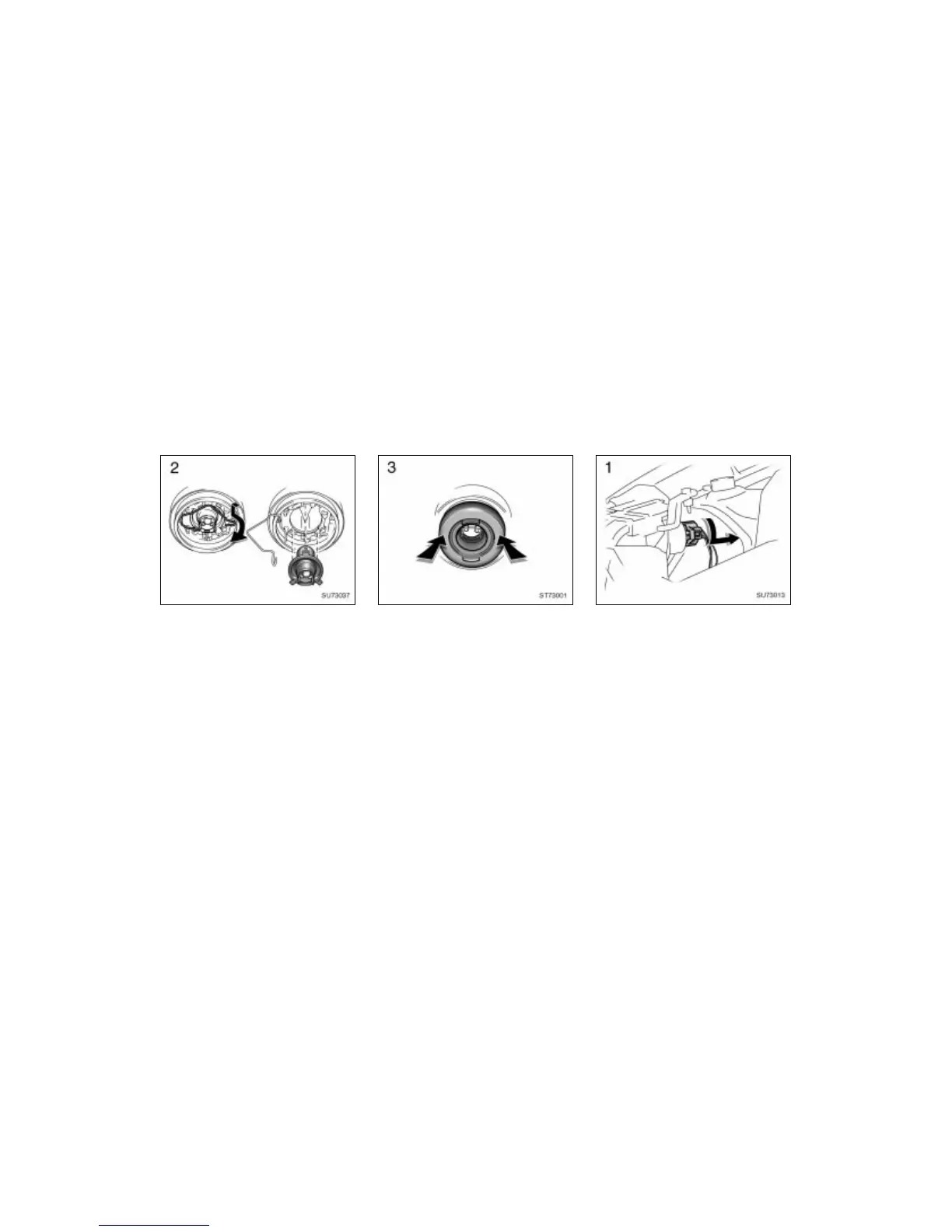

2. Release the bulb retaining spring
and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
ST73001
3. Install the rubber cover as shown
and snuggle on the boss. Plug in the
connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
SU73013
—Parking/front side
marker/front turn signal lights
