2002 ECHO (OM52463U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15–0.25 (0.006–0.010)
Exhaust 0.25–0.35 (0.010–0.014)
Spark plug type:
DENSO K16R–U
NGK BKR5EYA
Spark plug gap, mm(in.):
0.8 (0.031)
Drive belt tension measured with Bor-
roughs drive belt tension gauge No.
BT–33–73F (used belt), lbf:
Generator belt 100!20
Power steering pump belt 65!10
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
Oil grade:
API grade SJ “Energy–Conserving”, SL
“Energy–Conserving” or ILSAC multi-
grade engine oil is recommended.
Recommended oil viscosity (SAE):

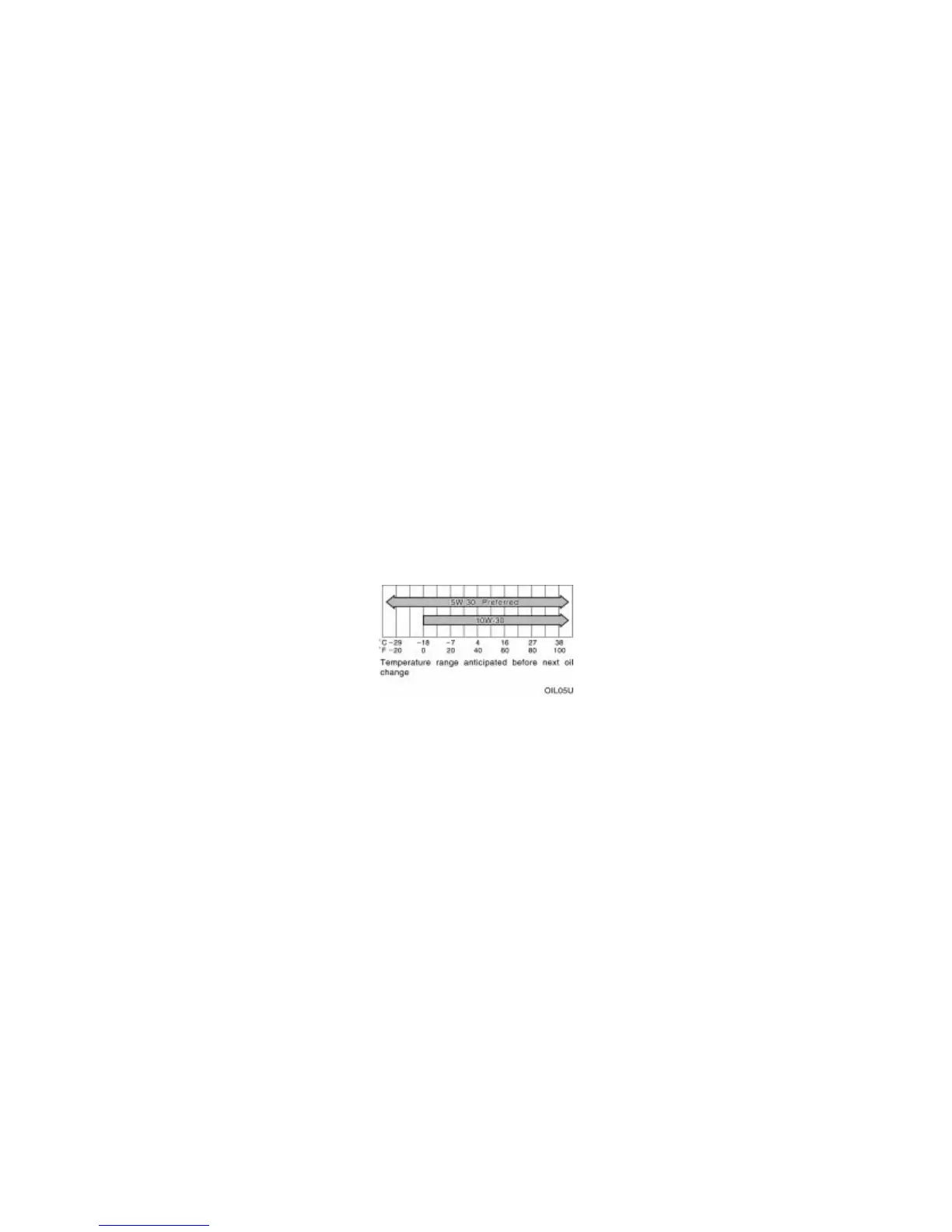

OIL05U
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Manual transmission 4.4 (4.7, 3.9)
Automatic transmission 4.3 (4.5, 3.8)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethylene–glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗
at 20!C (68!F):
12.6–12.8 V Fully charged
12.2–12.4 V Half charged
11.8–12.0 V Discharged
∗
: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
