’03 MATRIX_U (L/O 0201)
273
2003 MY COROLLA MATRIX_U (OM12767U)

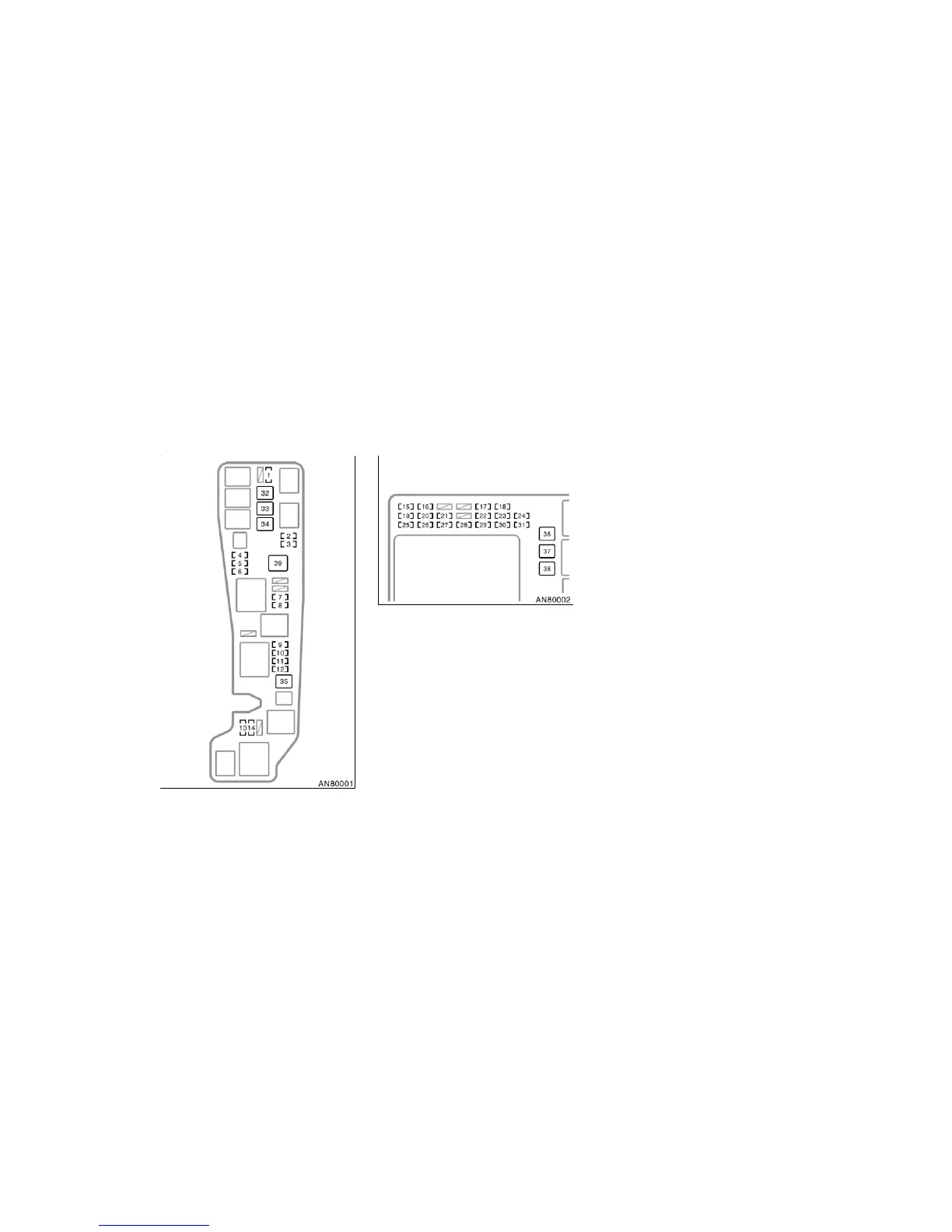

Engine compartment
Instrument panel
Fuses (type A)
1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), headlight high
beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. MAIN 30 A: Starting system, “AM2”
fuse
8. DOME 15 A: Car audio system, navi-
gation system, clock, personal lights,
interior lights, open door warning light,
wireless remote control system
9. HORN 10 A: Horn
10. HAZARD 10 A: Emergency flashers,
turn signal lights
11. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
12. ALT−S 5 A: Charging system
13. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
14. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
15. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights, instru-
ment cluster lights
16. OBD 7.5 A: On−board diagnosis sys-
tem
17. WIPER 25 A: Windshield wipers
18. AM2 15 A: Charging system, multiport
fuel injection system/sequential multi-
port fuel injection system, starting sys-
tem, SRS airbag system
Fuses
