Toyota 2005 ECHO Manual

252
2005 ECHO from Aug. ’04 Prod. (OM52636U)

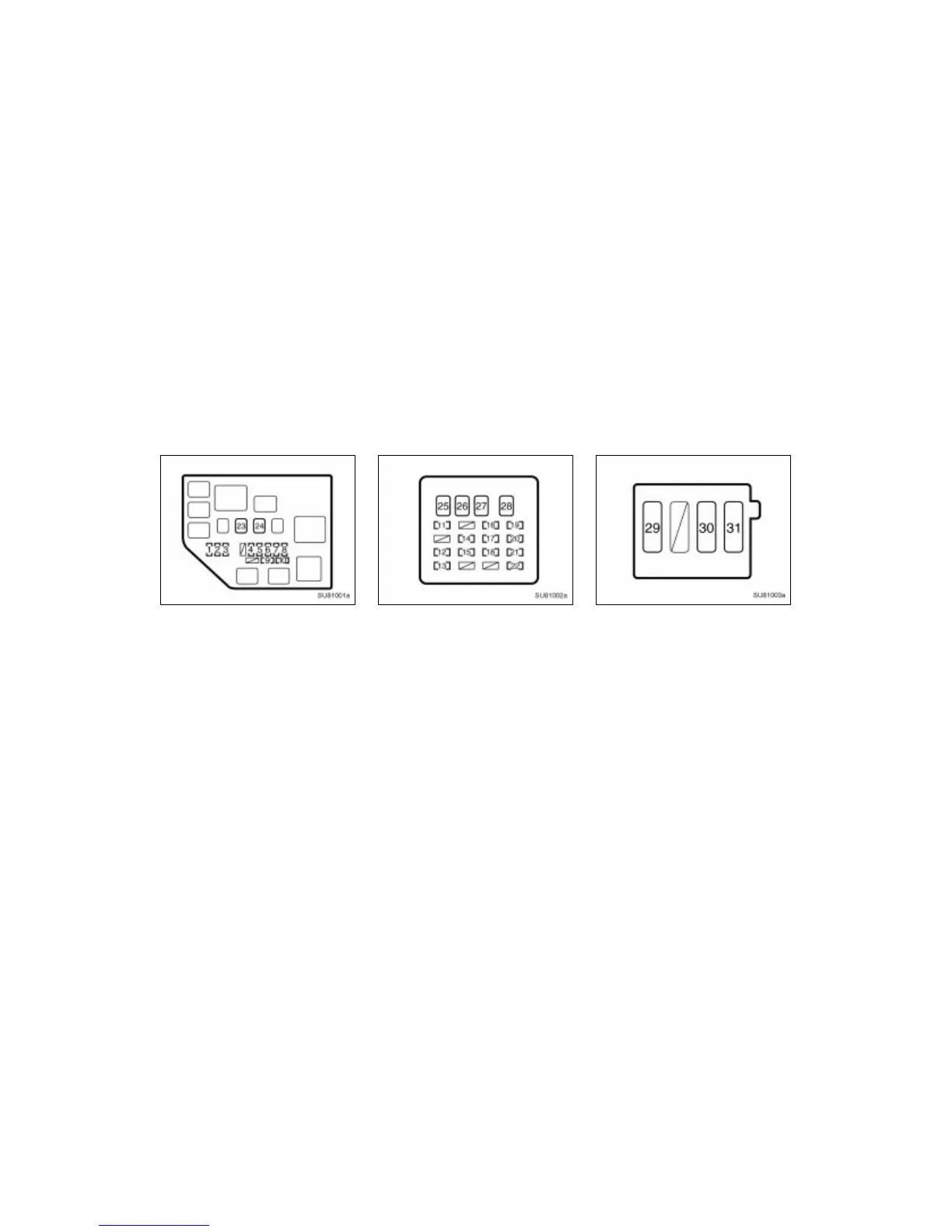

Fuses
SU81001a
Engine compartment
Fuses (type A)
1. P/POINT 15 A: No circuit
2. H- LP RH/H- LP LO RH 10 A: Right-
hand headlight
3. H- LP LH/H- LP LO LH 10 A: Left-
hand headlight
4. ST 30 A: Starter system
5. AM2 15 A: Starter system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, discharge warning system
6. HORN 15 A: Horn
SU81002a
Instrument panel
7. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
8. DOME 15 A: Clock, audio, interior
light, gauges of meters, wireless re-
mote control system
9. SPARE 15 A: Spare
10. SPARE 30 A: Spare
11. GAUGE 10 A: Back- up lights, charging
system, air conditioning system, power
window system, gauges of meters
12. ACC 15 A: Clock, audio, cigarette
lighter
13. A.C 7.5 A: Air conditioning system
SU81003a
Engine compartment
14. WIPER 20 A: Windshield wipers and
washer
15. ECU- IG 7.5 A: Anti- lock brake system,
electric cooling fan
16. D/L 25 A: Power door lock system
17. ECU- B 7.5 A: SRS airbag system
18. OBD 7.5 A: On- board diagnosis sys-
tem
19. TAIL 10 A: Tail lights, parking lights,
license plate lights, audio, illuminations
20. FOG 15 A: Front fog lights
