Toyota 4Runner 1997 - Instrument cluster overview

221 pages

Save Page as PDF

To Next Page

To Previous Page

WWW.MANUALS.WS

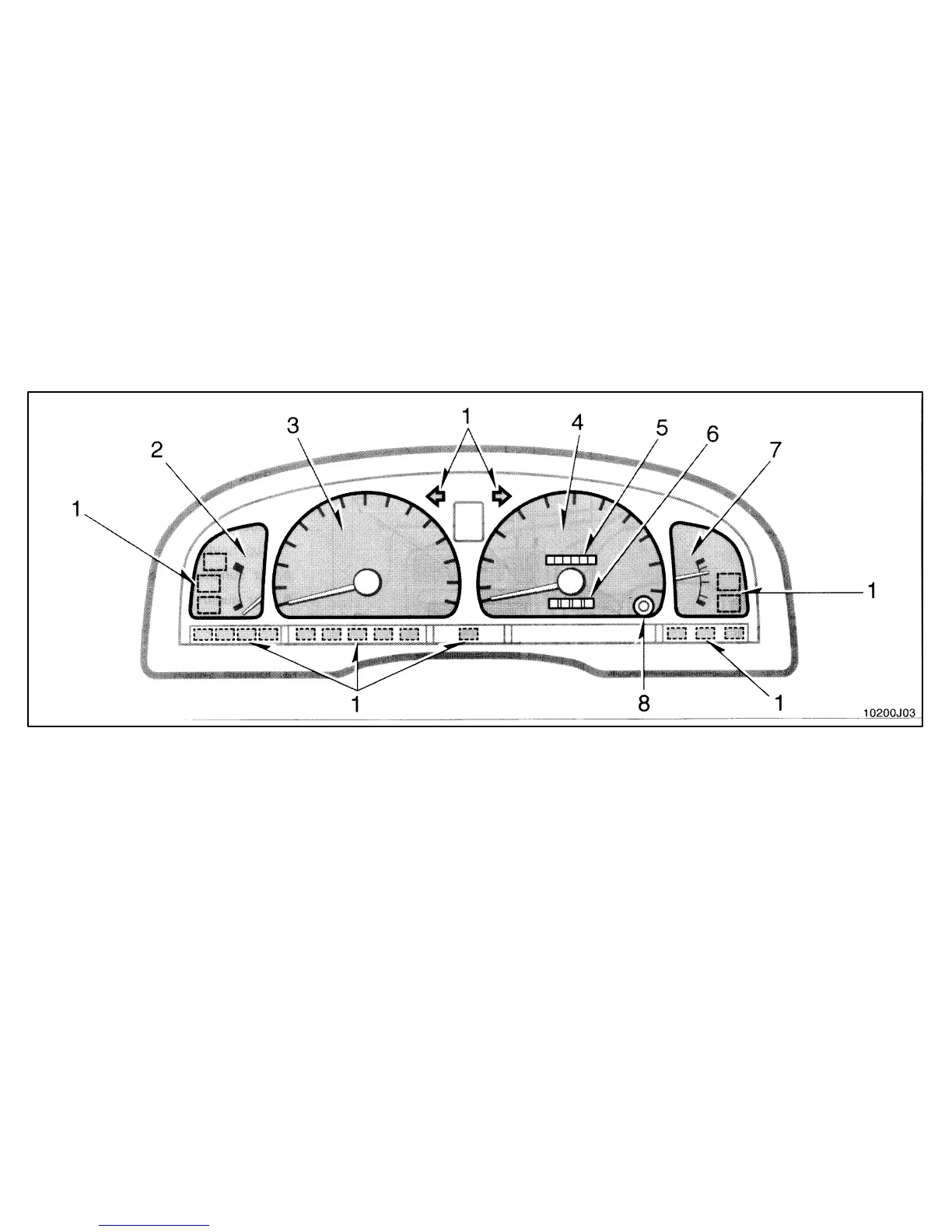

1. Service reminder indicators or

indicator lights

2. Engine coolant temperature gauge

3. Tachometer

4. Speedometer

5. Odometer

6. Tripmeter

7. Fuel Gauge

8. Trip meter reset knob

Instrument cluster overview
