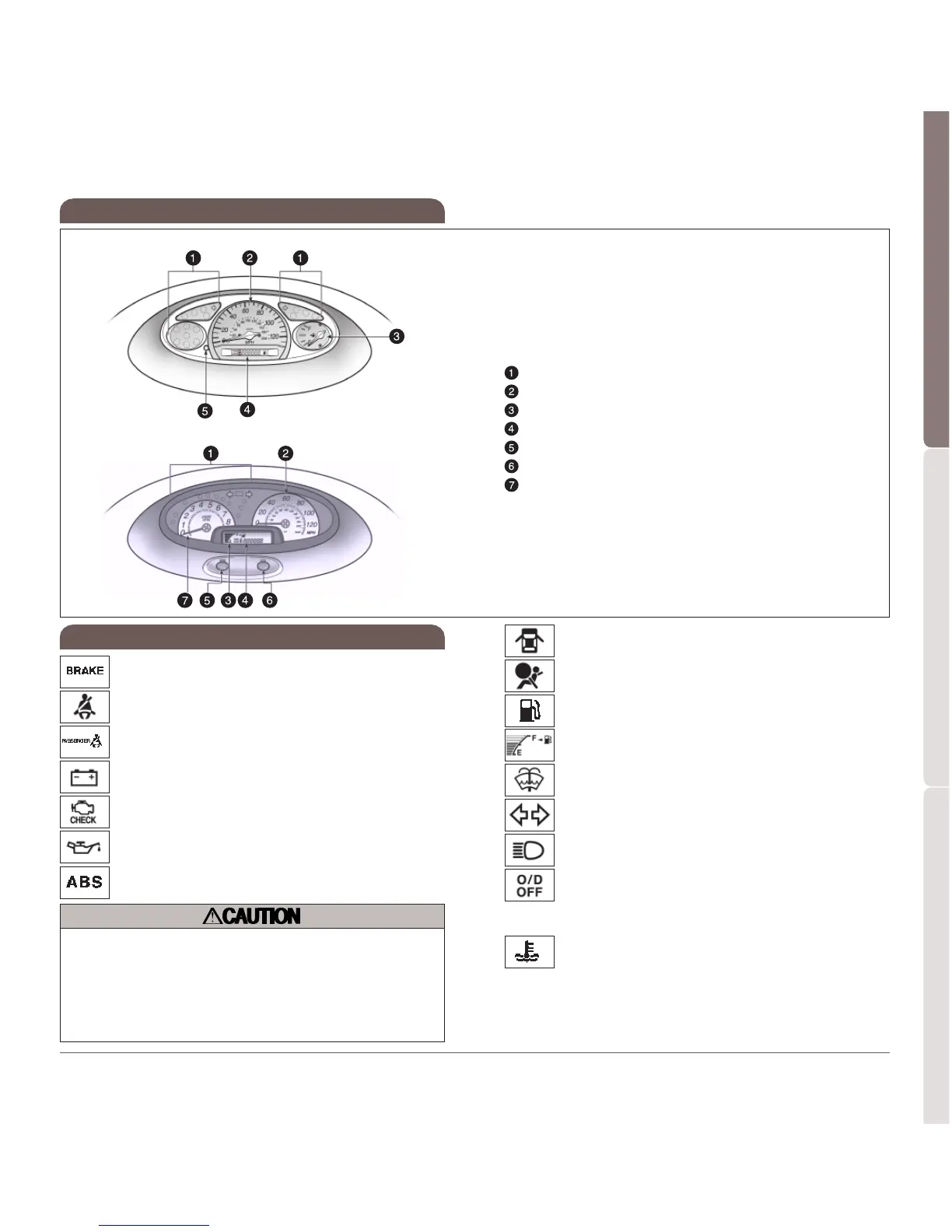

Toyota Echo - Instrument cluster; Indicator symbols

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEA
TURES
Low fuel level warning light
1
2
For details, refer to “Engine coolant temperature indicator and
warning light” Section 1-6, 2005 Owner’s Manual.
Open door warning light
1
Low windshield washer fluid level warning
light
1
.
Low engine coolant temperature indicator
light (blue)
2
.
High engine coolant temperature warning
light (in red)
1
Turn signal indicator light
Headlight high beam indicator light
Overdrive-off indicator light
Airbag SRS warning light
1
Low fuel level indicator light
1
(with tachometer)
Service reminder indicators and indicator lights
Speedometer
Fuel gauge
Odometer and two trip meters
Trip meter reset knob/button
Dimmer button*
Tachometer
*Push to dim or brighten meter light with
headlights on.
4
OVERVIEW
Driver’s seat belt reminder light
1
Front passenger’s seat belt reminder light
1
Brake system warning light
1
Battery warning light
1
Low engine oil pressure warning light
1
Anti-lock Brake System warning light
1
Malfunction indicator light
1
1
For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2005 Owner’s Manual.
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking performance.
*if installed
Indicator symbols
Instrument cluster
With tachometer
