173
2007 FJ CRUISER from Jan. ’06 Prod. (OM35857U)
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.

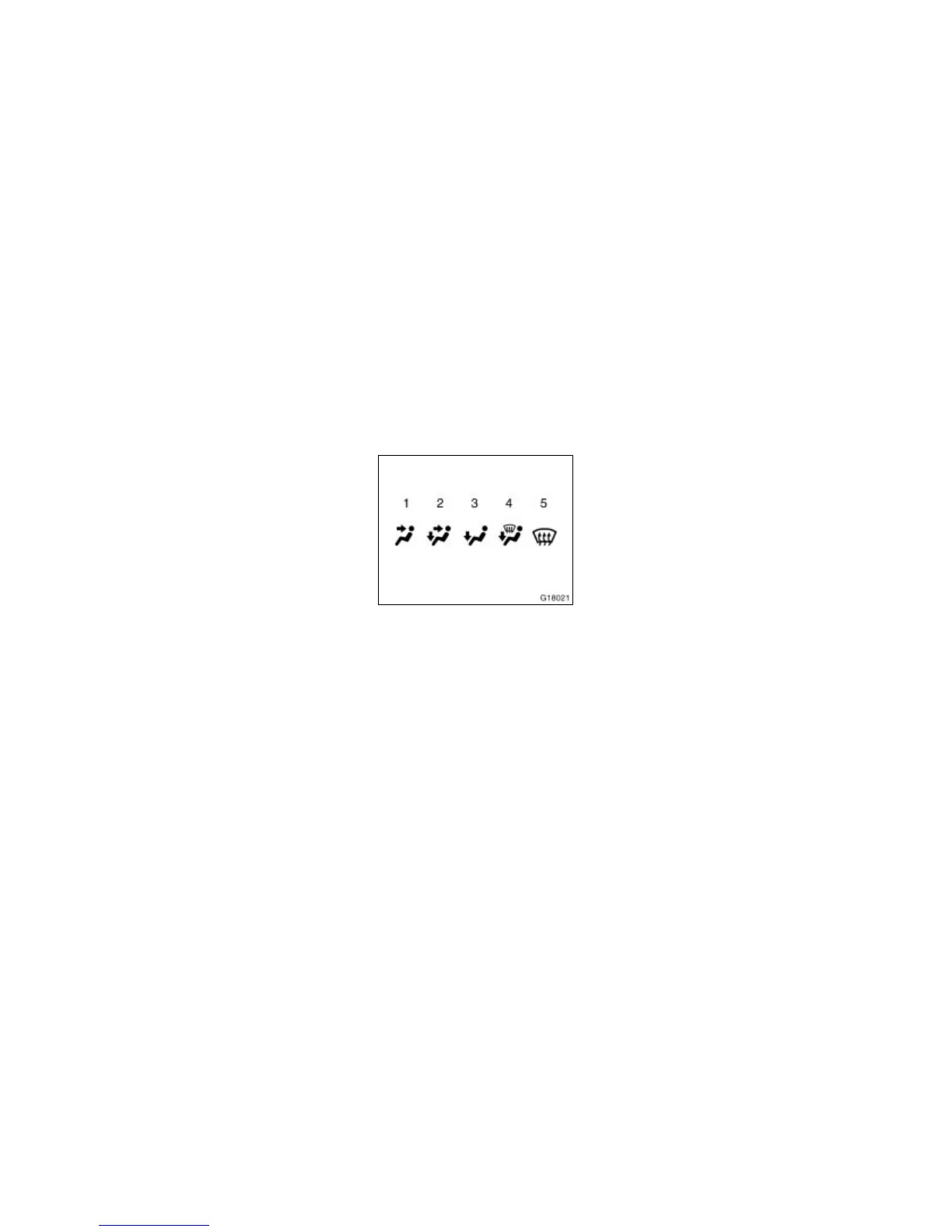

G18021
Air flow selector
Turn the knob to select the vents used for
air flow.
1. Panel—Air flows mainly from the
instrument panel vents.
2. Bi−level—Air flows from both the floor
vents and the instrument panel vents.
3. Floor—Air flows mainly from the floor
vents.
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging/defrosting function with the
purpose of clearing the windshield.
In this position, air intake selector
mode changes to FRESH automatically
to clear the windshield quickly. If you
want to return the setting to RECIRCU-
LATE mode, press the air intake selec-
tor button once again.
5. Windshield—Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging/defrosting function with the pur-
pose of clearing the windshield.
In this position, air intake selector
mode changes to FRESH automatically
to clear the windshield quickly. It is not
possible to return to RECIRCULATE in
this position.
For details about air flow selector settings,
see “Air flow selector settings” described
below.
05 11.29
