2000 L/C 100 (OM60866U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.):
1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.)
With filter 6.8 (7.2, 6.0)
Without filter 6.4 (6.8, 5.6)
Oil grade:
API grade SJ, ”Energy- Conserving” mul-
tigrade engine oil or ILSAC multigrade
engine oil is recommended.

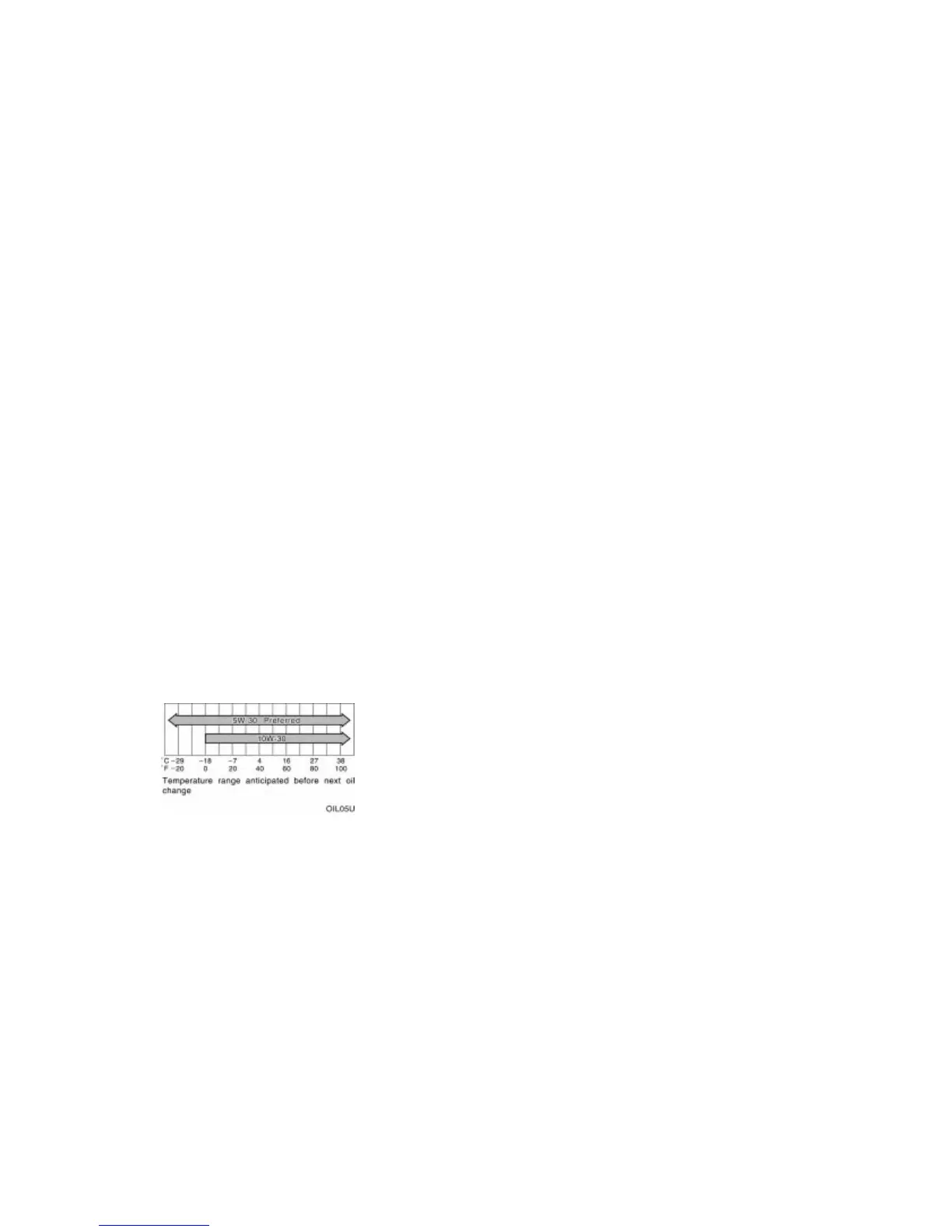

Recommended oil viscosity (SAE):
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.)
Without rear heater 14.8 (15.6, 13.0)
With rear heater 15.3 (16.2, 13.5)
Coolant type:
”TOYOTA Long Life Coolant” or equivalent
With ethylene- glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or plain
water alone.
BATTERY
Open voltage
∗
at 20C (68F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗
: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates:
5 A max.
AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill), L (qt.,
Imp. qt.)
Up to 2.0 (2.1, 1.8)
Fluid type:
Automatic transmission fluid D–II or
DEXRON
III (DEXRON
II)
TRANSFER
Oil capacity, L (qt., Imp. qt.)
1.3 (1.4, 1.1)
Oil type:
Gear oil API GL- 4 or GL-5
Recommended oil viscosity:
SAE 75W- 90
DIFFERENTIAL
Oil capacity, L (qt., Imp. qt.):
Front 1.6 (1.7, 1.4)
Rear
With rear differential lock system
3.2 (3.4, 2.8)
Without rear differential lock system
3.3 (3.5, 2.9)
