【2】-3. Suspension
12

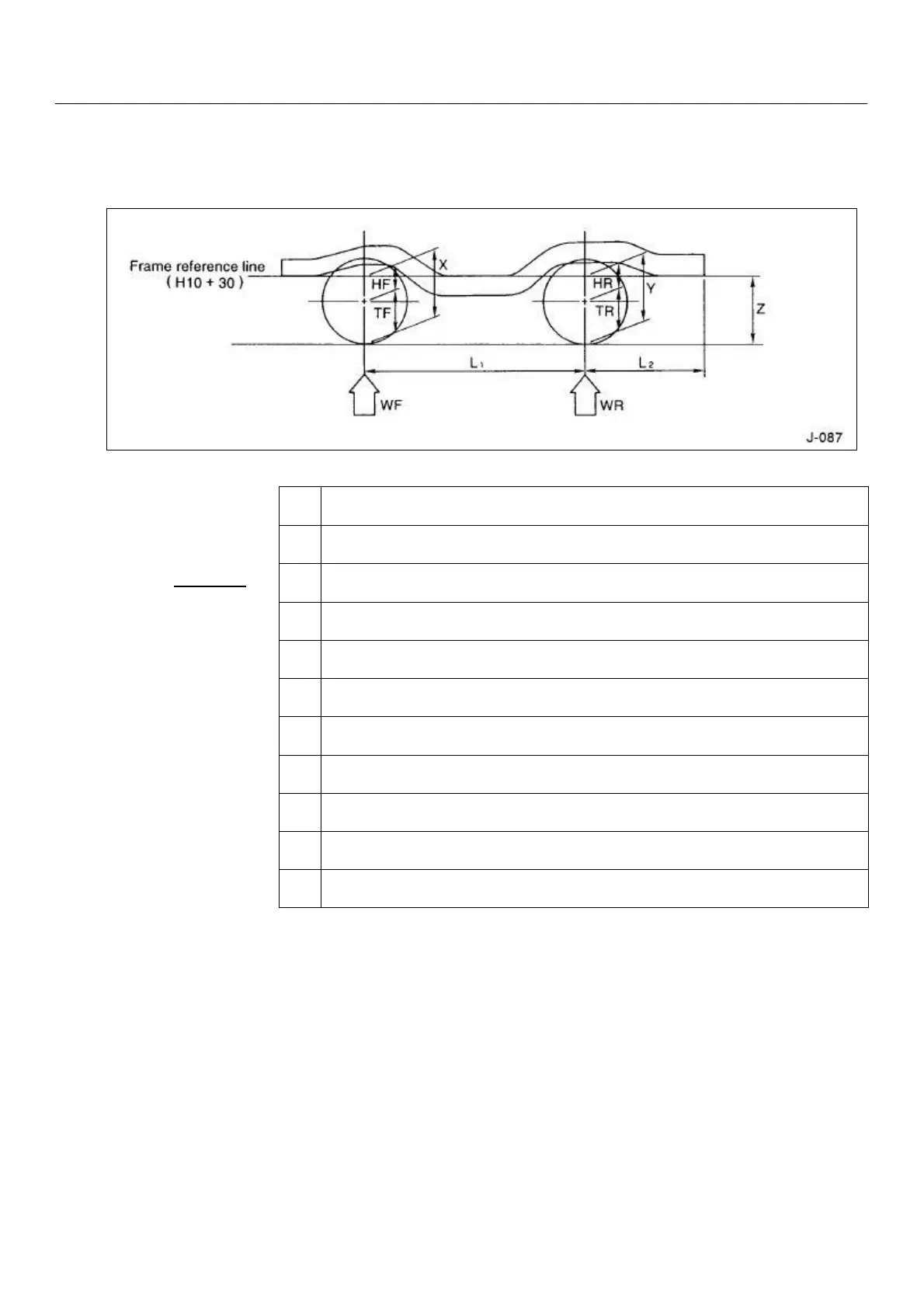

[5] Data for calculating the ground clearance of frame reference line
The ground clearance of the frame reference line should be calculated using the following formulae.
X = HF + TF
Y = HR + TR
Z = Y +
ሺ
Y-X
ሻ
× L
2
L
1
X Ground clearance of frame reference line at front wheel center line (mm)
Y Ground clearance of frame reference line above rear wheel center line (mm)
Z Ground clearance of frame reference line of frame rear end (mm)
WF Front axle load (N)
WR Rear axle load (N)
L
1
Wheelbase (mm)
L
2
Frame rear overhang (mm)
TF Front tire radius (mm)
TR Rear tire radius (mm)
HF Distance from front wheel center to frame reference line (mm)
HR Distance from rear wheel center to frame reference line (mm)
