2005 MATRIX from Sep. ’04 Prod. (OM12892U)

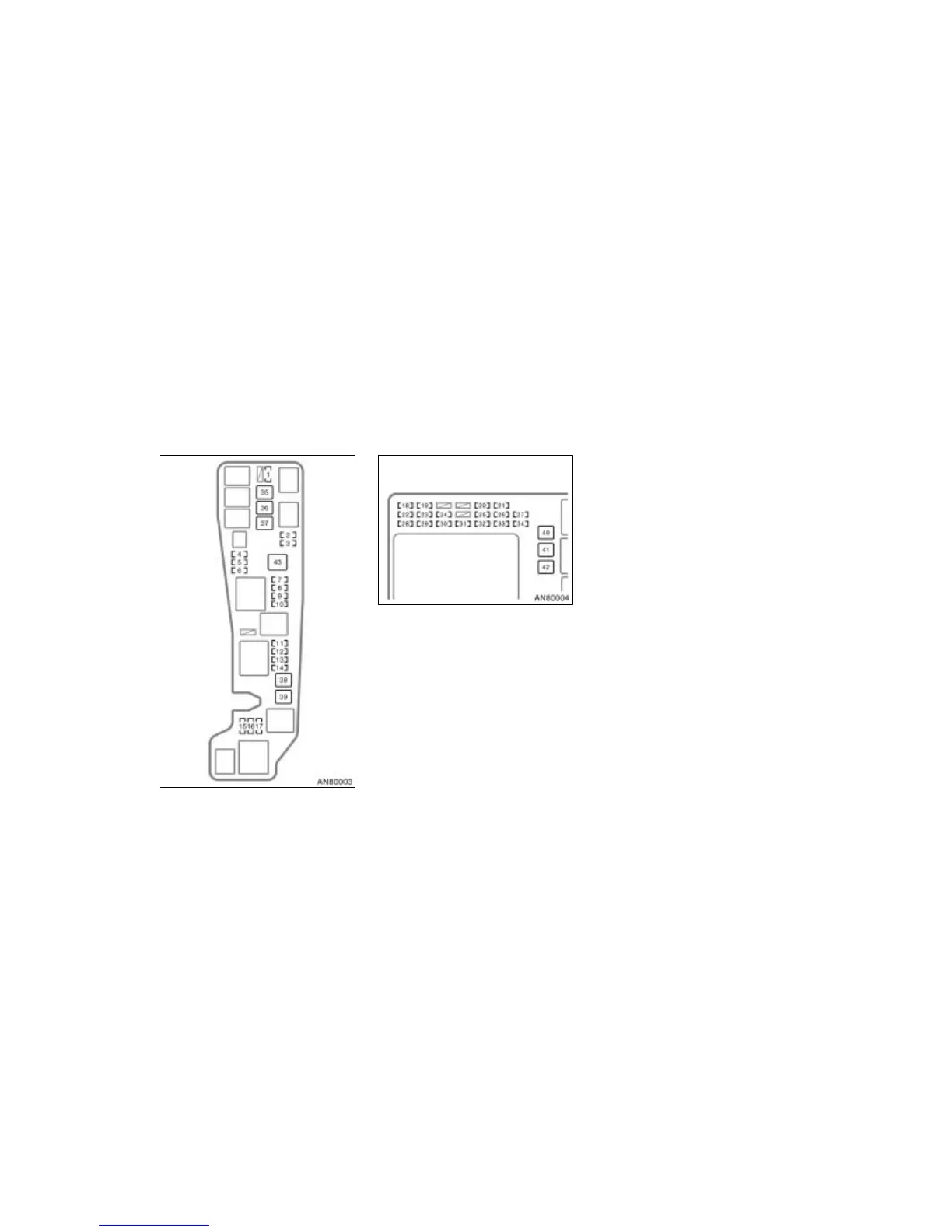

Engine compartment
Instrument panel
Fuses (type A)
1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left- hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right- hand
headlight (high beam), headlight high
beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. ETCS 10 A (1ZZ- FE engine with two-
wheel drive models only): Electronic
throttle control system
8. AMP 30 A: Car audio system
9. MAIN 30 A: Starting system, “AM2”
fuse
10. DOME 15 A: Car audio system, navi-
gation system, clock, personal lights,
interior lights, open door warning light,
wireless remote control system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers,
turn signal lights
13. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system, “EFI”
fuse
14. ALT- S 5 A: Charging system
15. HEAD LH LWR 10 A: Left- hand head-
light (low beam)
16. HEAD RH LWR 10 A: Right- hand
headlight (low beam)
17. EFI2 15 A: (1ZZ- FE engine with two-
wheel drive models only): Multiport
fuel injection system/sequential multi-
port fuel injection system, emission
control system
18. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights, instru-
ment cluster lights, clock
Fuses
