29

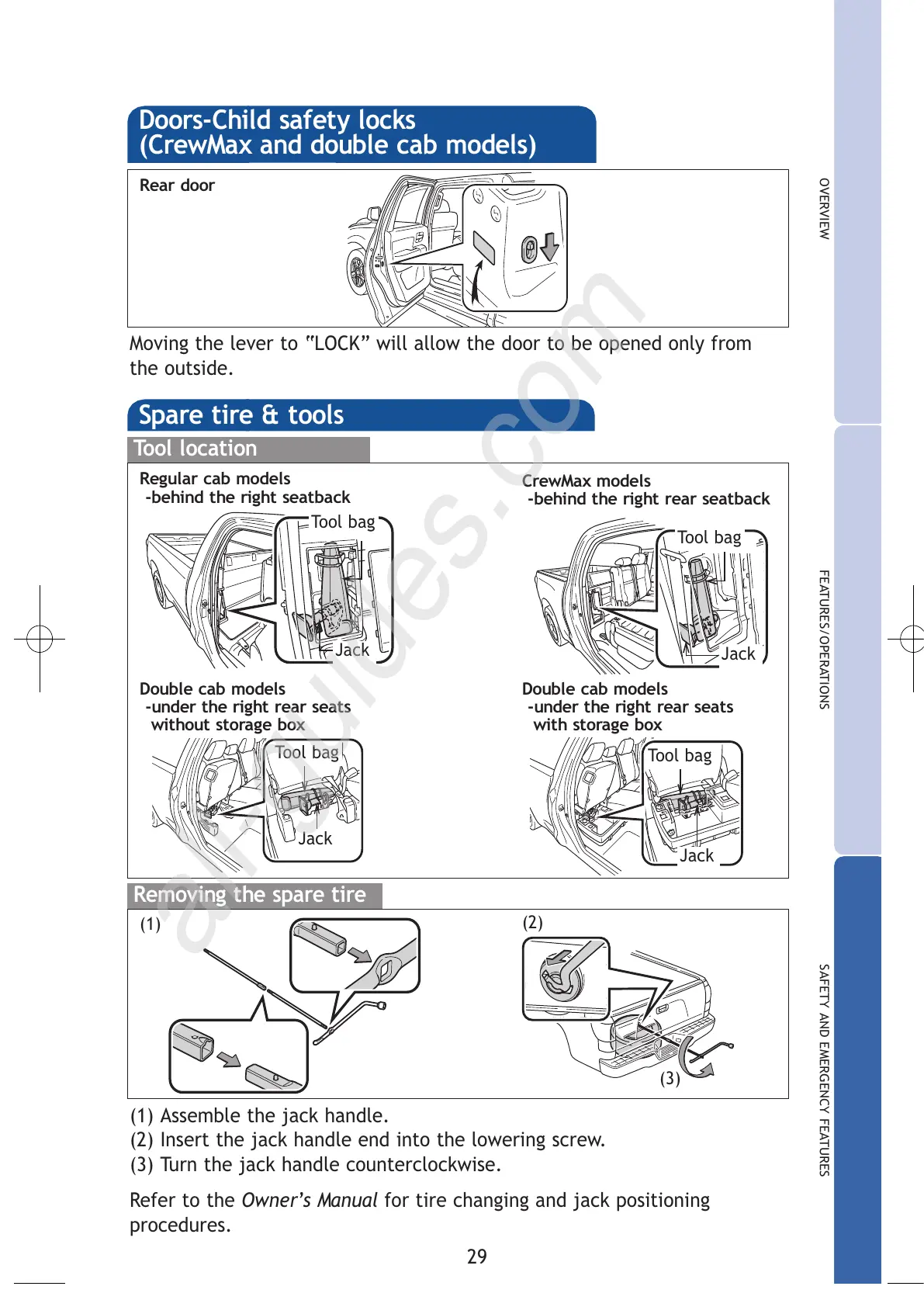

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end into the lowering screw.
(3) Turn the jack handle counterclockwise.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Regular cab models
-behind the right seatback
Double cab models
-under the right rear seats
with storage box
Tool bag
Jack
Tool bag
Jack
Tool bag
Jack
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Double cab models
-under the right rear seats
without storage box
Doors-Child safety locks
(CrewMax and double cab models)
CrewMax models
-behind the right rear seatback
Tool bag
Jack
(1)
(2)
(3)
413522M2.qxd:413522M2 4/15/09 1:53 PM Page 29
