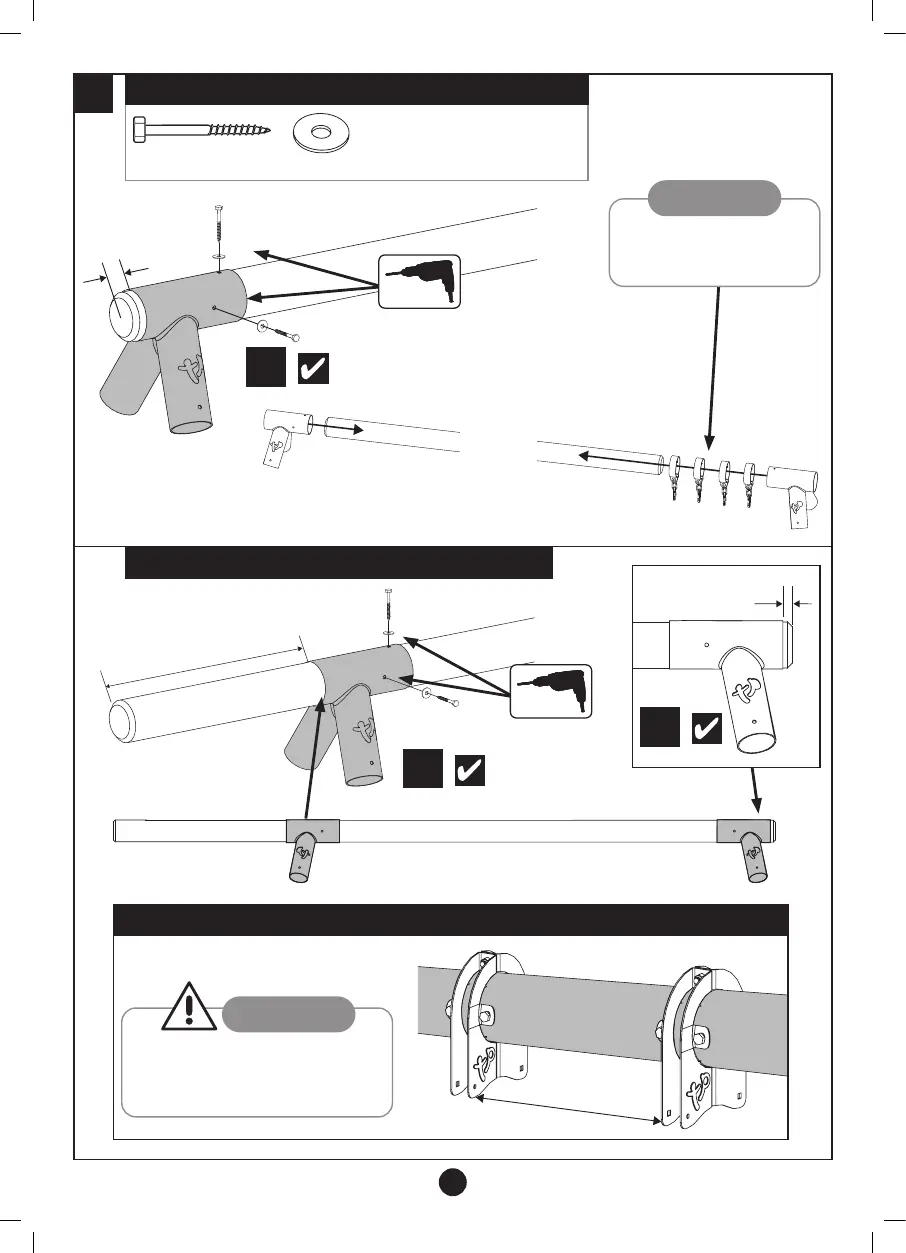

TP active fun Single - Assembly Step 2: Frame Assembly; Attaching Collars and Brackets

6
Single, Double, Triple and Double with Extension
445mm
Duo Ride Brackets
When attaching a swing accessory that requires
2 Duo Ride Brackets (TP784 or PR5070), fixing
locations for these brackets will be the same as
the Swing seat positions using collars.
IMPORTANT
ASSEMBLY TIP
2
70mm FA8439
x4
M8 x25mm
FA8440
x4
Single, Double, Triple and Double with Extension
30mm
x2
5mm
MW1500
MW2250
MW3000
Upto
6 Collars
Make sure you thread the metal
collars (PR7757) onto your top bar
before securing the brackets to each
end.
IMPORTANT
ASSEMBLY TIP
30mm
x1
750mm
x1
5mm
Double Wooden Swing Frame with Extension
MW3000
Swing Frame
Configuration
- Using Duo Ride Brackets
