TP-Link Deco E4 User Manual

4

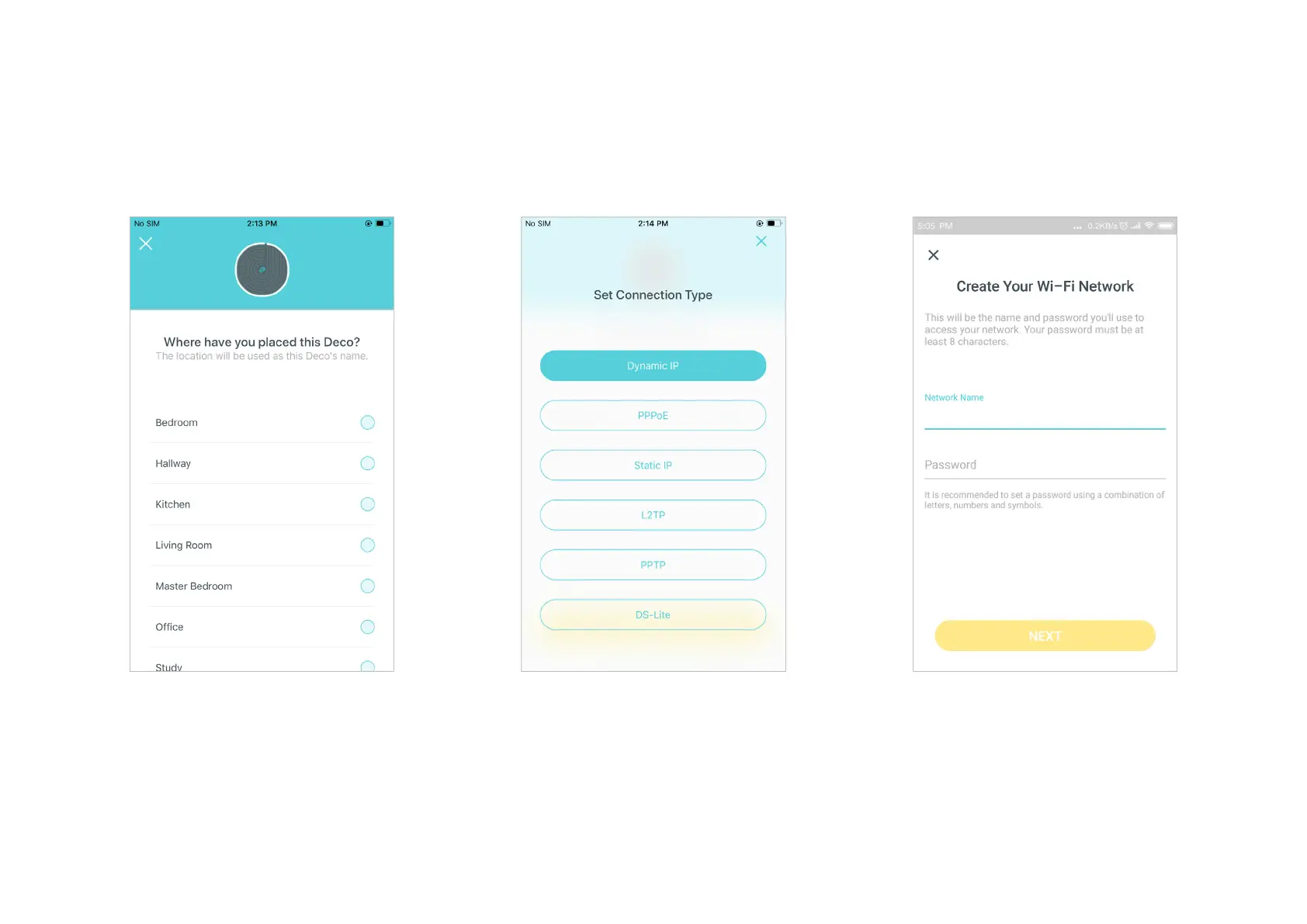

4. Select a location
Select a location for this Deco. If its location
is not listed, you can create a new one by
choosing Custom.
5. Set up internet connection
Select the internet connection type and enter
the information. If you are not sure, contact
your internet service provider.
6. Create your Wi-Fi network
Set a network name and a password. These
will be the name and password you use to
connect your devices to Wi-Fi.

TP-Link Deco E4 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Product type	Tabletop router
Certification	FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC
Product color	White
LED indicators	LAN, WLAN
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
AC adapter input current	0.3 A
AC adapter output current	0.85 A
AC adapter output voltage	9 V
Firewall security	SPI Firewall
Number of guest networks (2.4 GHz)	1
Package type	Box
Number of products included	2 pc(s)
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85171800
Sustainability certificates	RoHS, CE

Weight and Dimensions

Width	90.7 mm
Height	190.5 mm
Package depth	241 mm
Package width	365 mm
Package height	105 mm
Package weight	1730 g
