TP-Link NC210 User Manual

NC210 HD Wi-Fi Cloud Camera
7

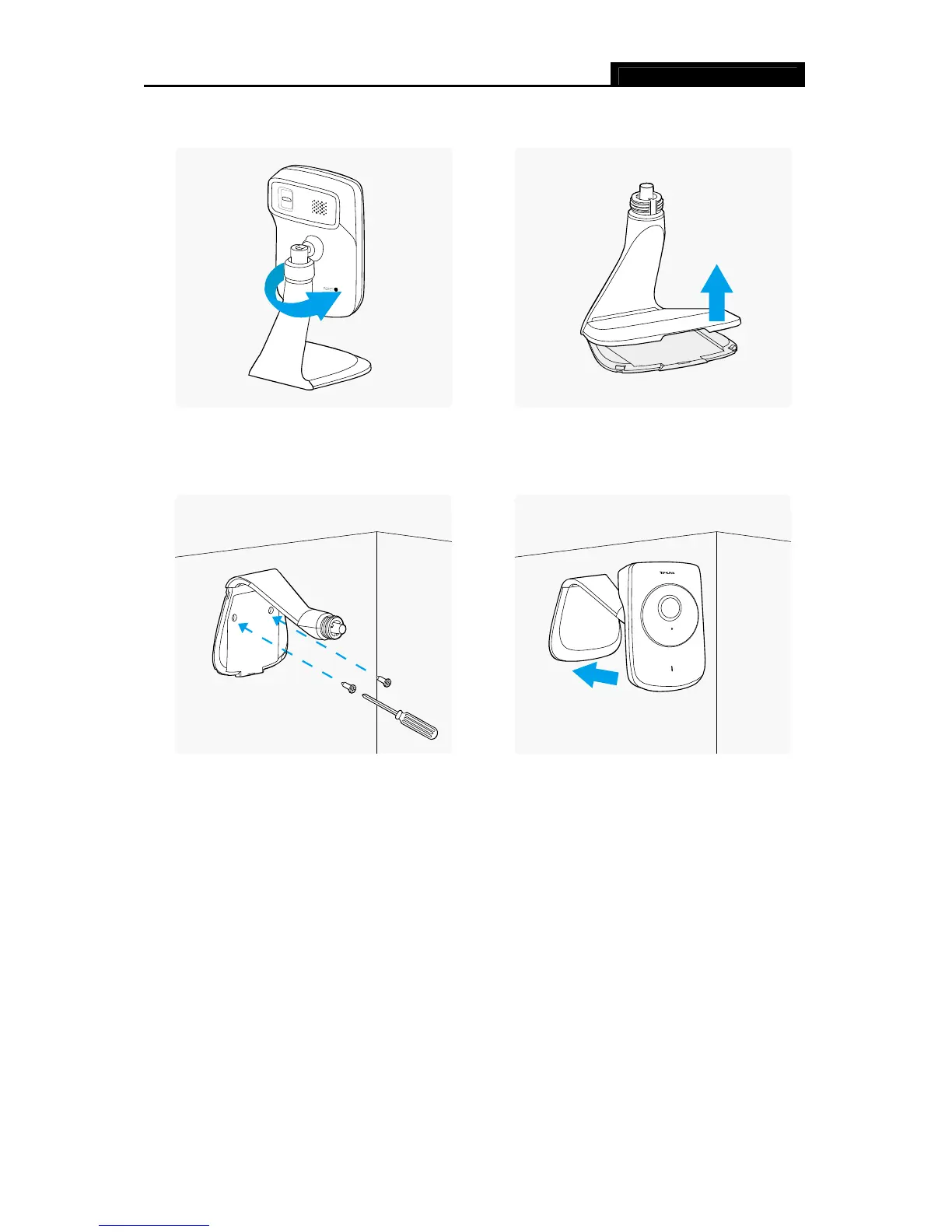

1. Unscrew the camera head.
2. Remove the base cover.
3. Use two screws (not included) to secure
the base.
4. Put the base cover and camera head back
on.
After relocating your camera, face it towards the area you’d like to view, and then plug the power
adapter into a power outlet.
Now that you’ve finished positioning your camera, use the tpCamera app to check that your
camera can see what you want to keep an eye on. Adjust its position if needed.

TP-Link NC210 Specifications

General

Type	IP security camera
PTZ control	-
Antenna type	Internal
Placement supported	Indoor
Connectivity technology	Wireless
Interface	USB 2.0
Microphone in	Yes
Ethernet LAN (RJ-45) ports	0
Form factor	Cube
Mounting type	Desk/Wall
Product color	White
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	- lx
Field of view (FOV) angle	130 °
Sensor type	CMOS
Optical sensor size	1/4 \
Focal length range	2 - 2.8 mm
Number of cameras	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s
Mobile operating systems supported	Android 3.0, Android 3.1, Android 3.2, Android 4.1, Android 4.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, iOS 7.0, iOS 7.1, iOS 7.2, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DC output current	1 A
DC output voltage	5

Weight and Dimensions

Depth	68.4 mm
Width	75.7 mm
Height	134.6 mm
Package depth	128 mm
Package width	79.5 mm
Package height	223 mm
