NC210 HD Wi-Fi Cloud Camera
19

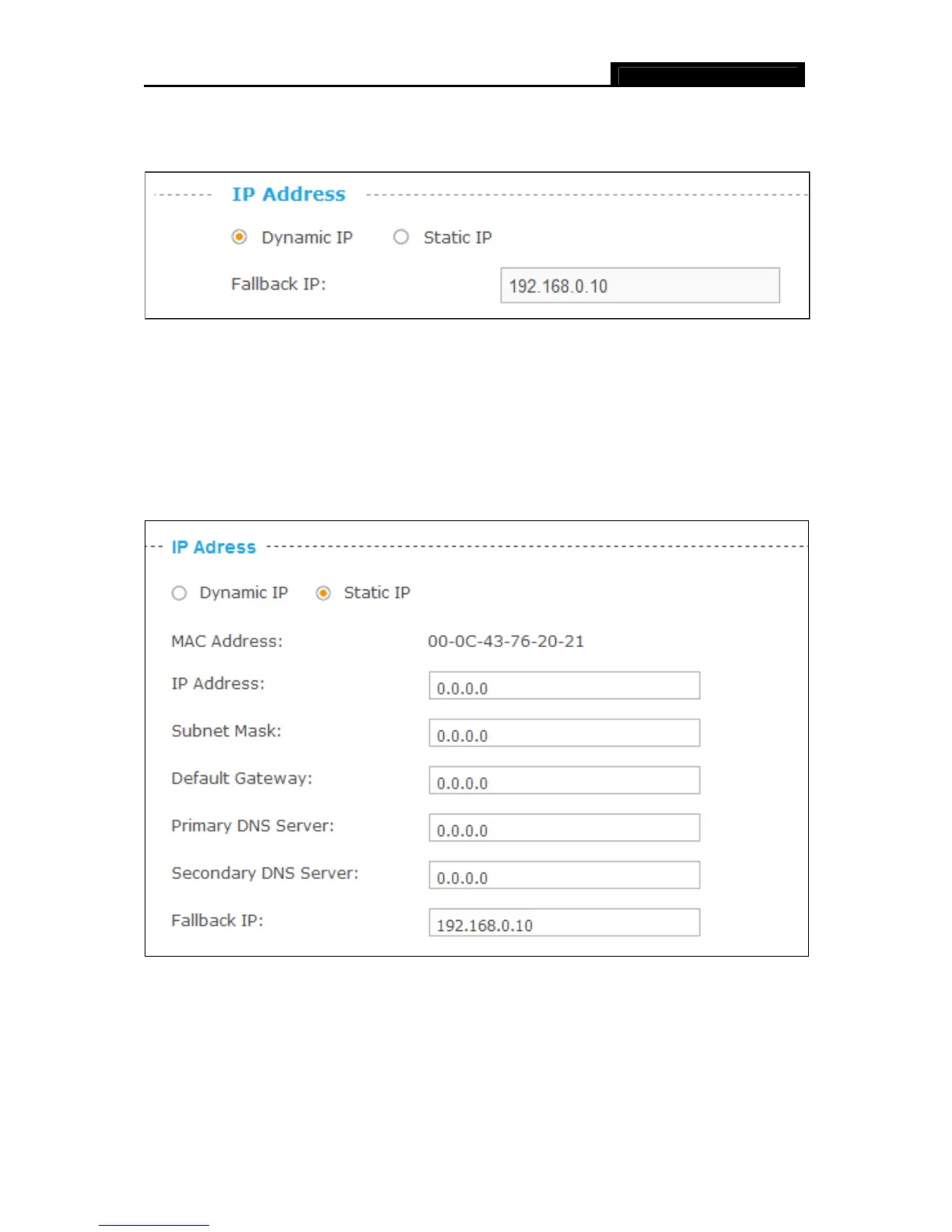

 Dynamic IP: Select this option when a DHCP server is installed on the network to issue IP
address assignment. With this setting, the IP address of the camera is assigned automatically.
 Fallback IP: If the camera cannot get a dynamic IP address from a DHCP server within
limited tries, the camera will assign a default IP address, 192.168.0.10, by itself as the
Fallback IP address.
 Static IP: Select this option when a static or fixed IP address is obtained for the camera. A
static IP address will ease your access to the camera in the future. Add your camera’s static
IP information to your router to avoid IP conflicts.
 MAC Address: Displays the Ethernet MAC address of the camera. The MAC address is
read-only.
 IP Address: Enter a fixed IP address for the camera in dotted-decimal notation.
 Subnet Mask: Enter the subnet mask in dotted-decimal notation. The default value is
“0.0.0.0.”
