TP-Link NC210 User Manual

NC210 HD Wi-Fi Cloud Camera
26

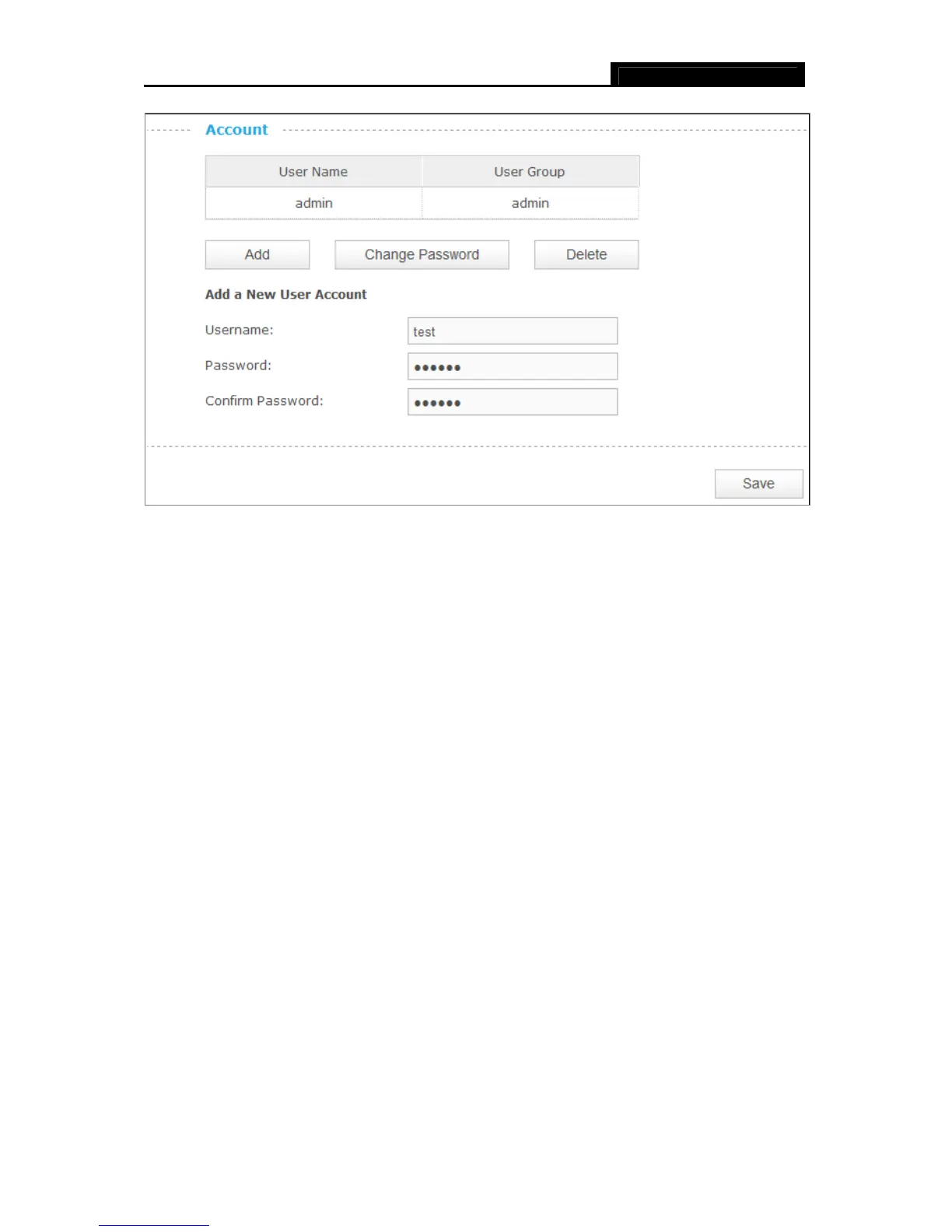

2. Enter a username for your new account.
3. Enter a password for your new account. The password should contain 5 to 20 characters.
4. Enter the password again to confirm it.
5. Click Save to save and enable the settings.
Change Password
You can change the password of all the accounts here.

Note:
The default account and password are both admin. Everyone who knows the camera’s IP address
can access the device with all configuration authority. It is necessary to change the default
password if the device is intended to be accessed only by administrator.
To change password, follow the steps below:
1. Select a user account in the list whose password you want to change
2. Click Change Password, and you will see the following screen.

TP-Link NC210 Specifications

General

Type	IP security camera
PTZ control	-
Antenna type	Internal
Placement supported	Indoor
Connectivity technology	Wireless
Interface	USB 2.0
Microphone in	Yes
Ethernet LAN (RJ-45) ports	0
Form factor	Cube
Mounting type	Desk/Wall
Product color	White
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	- lx
Field of view (FOV) angle	130 °
Sensor type	CMOS
Optical sensor size	1/4 \
Focal length range	2 - 2.8 mm
Number of cameras	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s
Mobile operating systems supported	Android 3.0, Android 3.1, Android 3.2, Android 4.1, Android 4.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, iOS 7.0, iOS 7.1, iOS 7.2, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DC output current	1 A
DC output voltage	5

Weight and Dimensions

Depth	68.4 mm
Width	75.7 mm
Height	134.6 mm
Package depth	128 mm
Package width	79.5 mm
Package height	223 mm
