TP-Link NC210 User Manual

NC210 HD Wi-Fi Cloud Camera
28

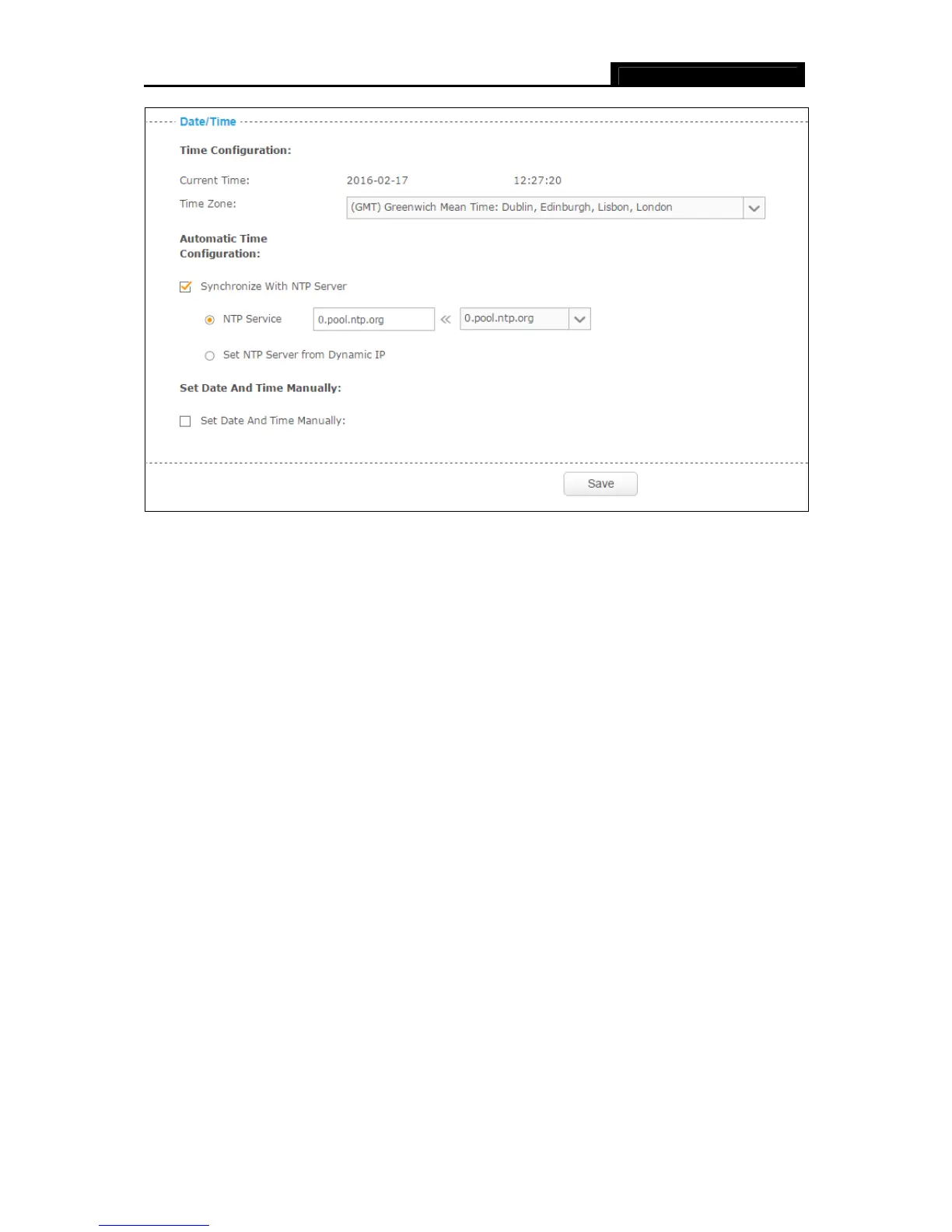

 Current Time: Displays the current date and time of the camera.
 Time Zone: Select the time zone for the region where the camera is installed from the
drop-down list.
 Synchronize With NTP Server: Select this option to specify the NTP server name to
synchronize the date and time of the camera with those of the time server, known as the NTP
(Network Time Protocol) server.
 NTP Service: You can either enter a domain name of the NTP server or select one which
will be filled in automatically from the drop-down list.
 Set NTP Server from Dynamic IP: You can use the NTP server applied in the DHCP
server on the network.
 Set Date and Time Manually: Select this option to set the date and time of the camera
manually. If enabled, you will see the following screen:

TP-Link NC210 Specifications

General

Type	IP security camera
PTZ control	-
Antenna type	Internal
Placement supported	Indoor
Connectivity technology	Wireless
Interface	USB 2.0
Microphone in	Yes
Ethernet LAN (RJ-45) ports	0
Form factor	Cube
Mounting type	Desk/Wall
Product color	White
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Minimum illumination	- lx
Field of view (FOV) angle	130 °
Sensor type	CMOS
Optical sensor size	1/4 \
Focal length range	2 - 2.8 mm
Number of cameras	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s
Mobile operating systems supported	Android 3.0, Android 3.1, Android 3.2, Android 4.1, Android 4.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, iOS 7.0, iOS 7.1, iOS 7.2, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DC output current	1 A
DC output voltage	5

Weight and Dimensions

Depth	68.4 mm
Width	75.7 mm
Height	134.6 mm
Package depth	128 mm
Package width	79.5 mm
Package height	223 mm
