TL-MR3220 3G/3.75G Wireless Lite N Router
-74-
z Select “Schedule_1” you create just now from the Effective Time drop-down list.
z In Status field, select Enable.
4. Click Save to complete the settings.
Then you will go back to the Parental Control Settings page and see the following list, as
shown in Figure 4-50.

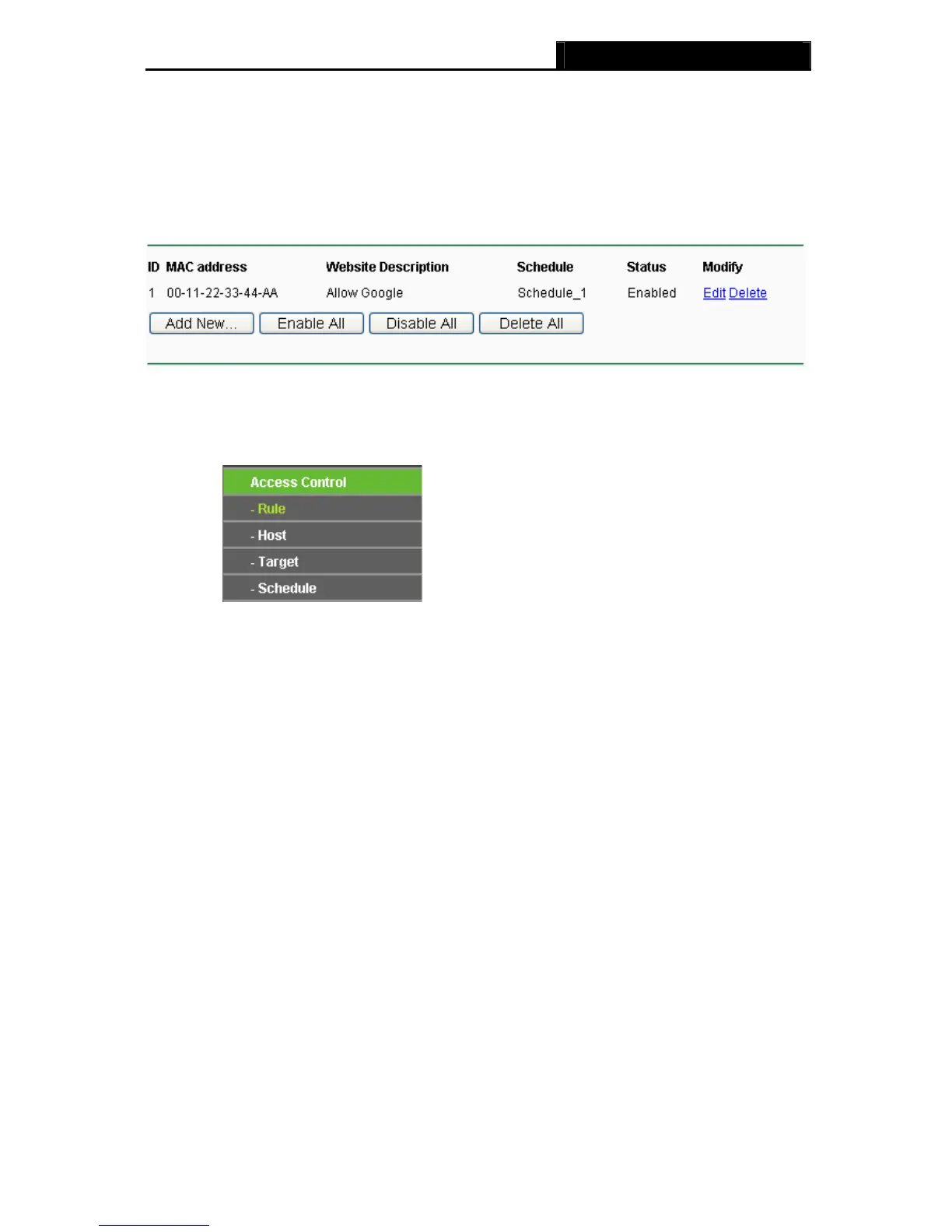

Figure 4-50 Parental Control Settings
4.11 Access Control
Figure 4-51 Access Control
There are four submenus under the Access Control menu as shown in Figure 4-51: Rule, Host,
Ta
rget and Schedule. Click any of them, and you will be able to configure the corresponding
function.
4.11.1 Rule
Choose menu “Access Control → Rule”, you can view and set Access Control rules in the
screen as shown in Figure 4-52.
