TL-WN821/TL-WN822N/TL-WN823N 300Mbps Wireless N USB Adapter
13
3.2 To connect using WPS
WPS (Wi-Fi Protected Setup) function allows you to add a new wireless device to an existing
network quickly.
If the wireless router supports WPS (Wi-Fi Protected Setup) or QSS, you can establish a
wireless connection between wireless card and router using either Push Button Configuration
(PBC) method or PIN method.
3.2.1 PBC (Push Button Configuration) method

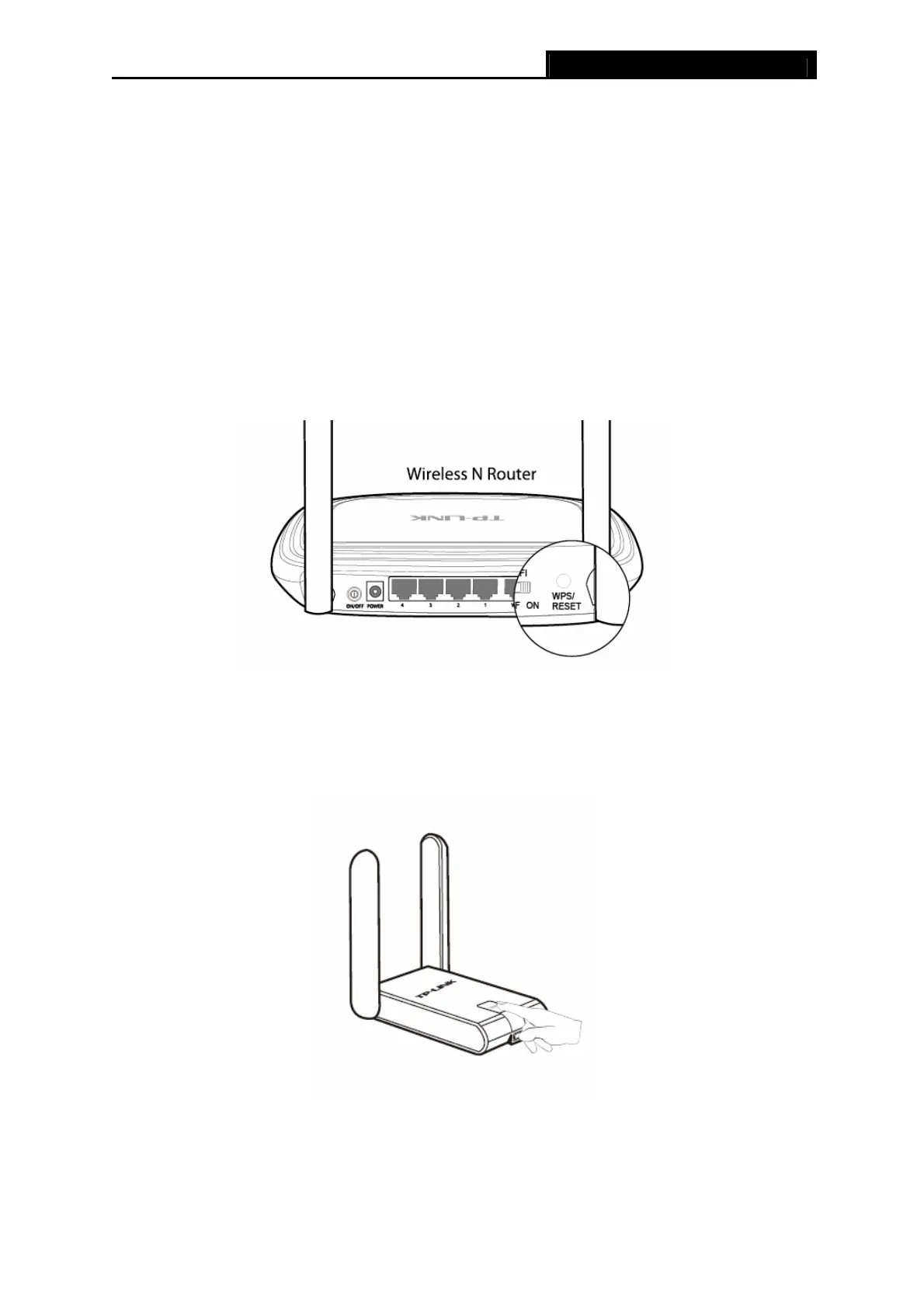

1. Press the WPS/RESET button for 2~3 seconds on the back panel of the router. Here takes
router TL-WR841ND for example.
2. Press the WPS button on the adapter. There are two ways:
¾ Method One˖
Press and hold the WPS button on the adapter directly for 2~3 seconds until
6Figure 3-11
appears.
Figure 3-9
¾ Method Two:
Open TWCU and click WPS tab. Select Push the button on my access point or wireless
router and then click Connect.
To Next Page
