TP-Link TL-WN822N User Manual

TL-WN822N
300Mbps Wireless N USB Adapter

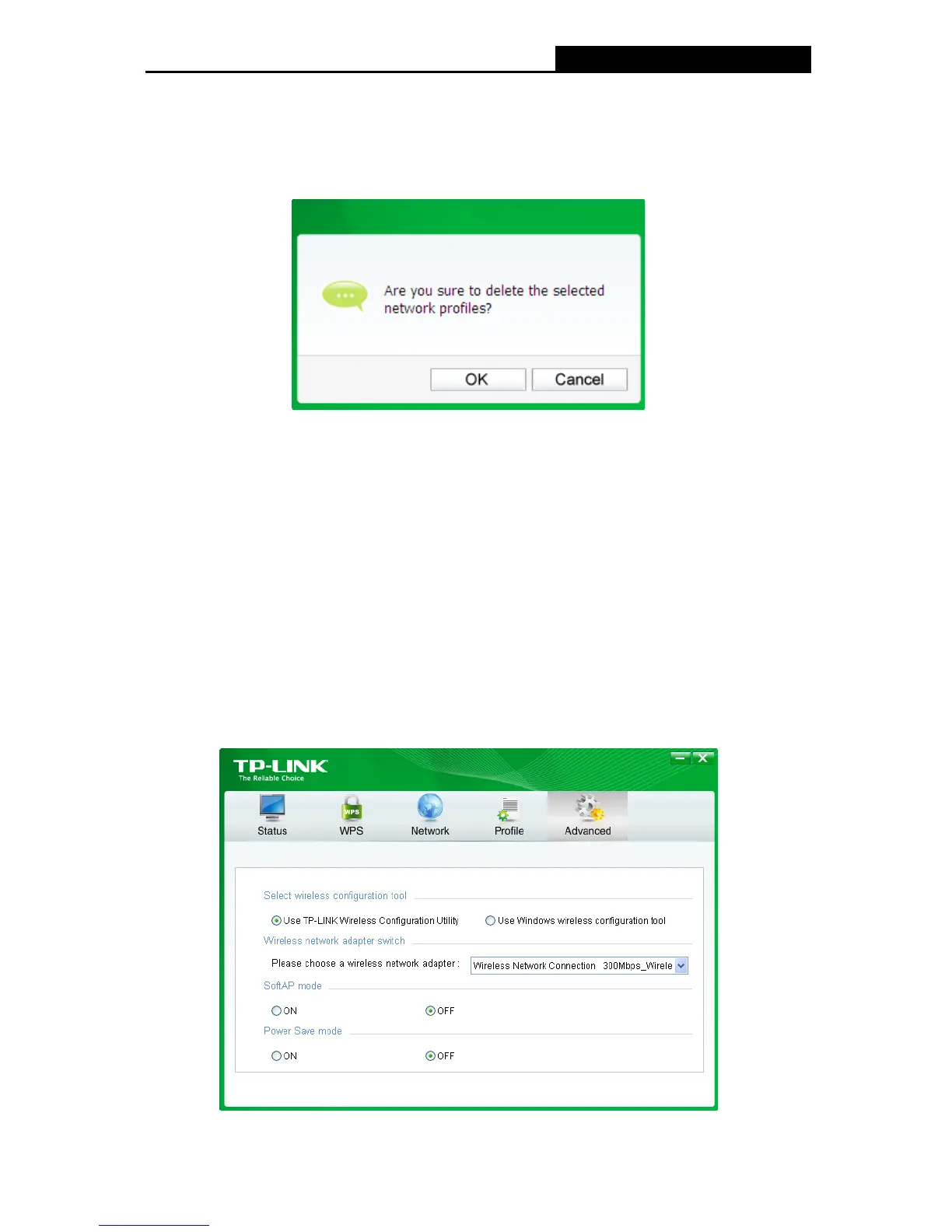

4.1.3 Delete a profile
To delete an existing profile, highlight the profile name and click Remove on the bottom of the
screen or press the Delete button on your keyboard. When the following figure appears, click
OK to continue.
Figure 4-10
4.2 Advanced
The following configurations can be made on the Advanced page:
1) To select wireless configuration tool.
Here you can decide which tool to use, either the TP-LINK Configuration Utility or the
Windows wireless configuration tool. (This option is available only in Windows XP.)
2) To switch to another wireless network adapter.
Here you can switch to another adapter installed in your computer. The adapters
successfully installed in your computer will be listed in the drop-down menu if the adapters
are supported by this utility.
3) To switch to SoftAP mode.
Once enabled, the adapter will be able to work as an AP.
4) To change the power save mode.
Figure 4-11
33

TP-Link TL-WN822N Specifications

General

Wi-Fi	Yes
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Interface	WLAN
USB version	2.0
USB ports quantity	1
Connectivity technology	Wireless
Internal	No
Antenna type	2x Omni
Certification	CE, FCC, RoHS
Component for	-
Product color	White
Receiver sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Antenna direction type	Omni-directional
Antenna gain level (max)	3 dBi
Cable length	1.5 m
Dimensions (WxDxH)	90 x 68 x 16.8 mm
Operating temperature (T-T)	32 - 104 °F
Compliance industry standards	IEEE 802.11b/g/n
Dimensions (W x D x H) (imperial)	3.5 x 2.7 x 0.7 \
Compatible operating systems	Windows 2000 / XP / Vista / 7
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	USB
Package depth	150 mm
Package width	200 mm
Package height	39 mm
Package weight	210 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	68 mm
Width	90 mm
Height	16.8 mm
