2) To change the WEB management port number: Login to the router, click the “Security”
menu on the left of your browser, and click "Remote Management" submenu. On the
"Remote Management" page, type a port number except 80, such as 88, into the "Web
Management Port" field. Click “Save” and reboot the router.

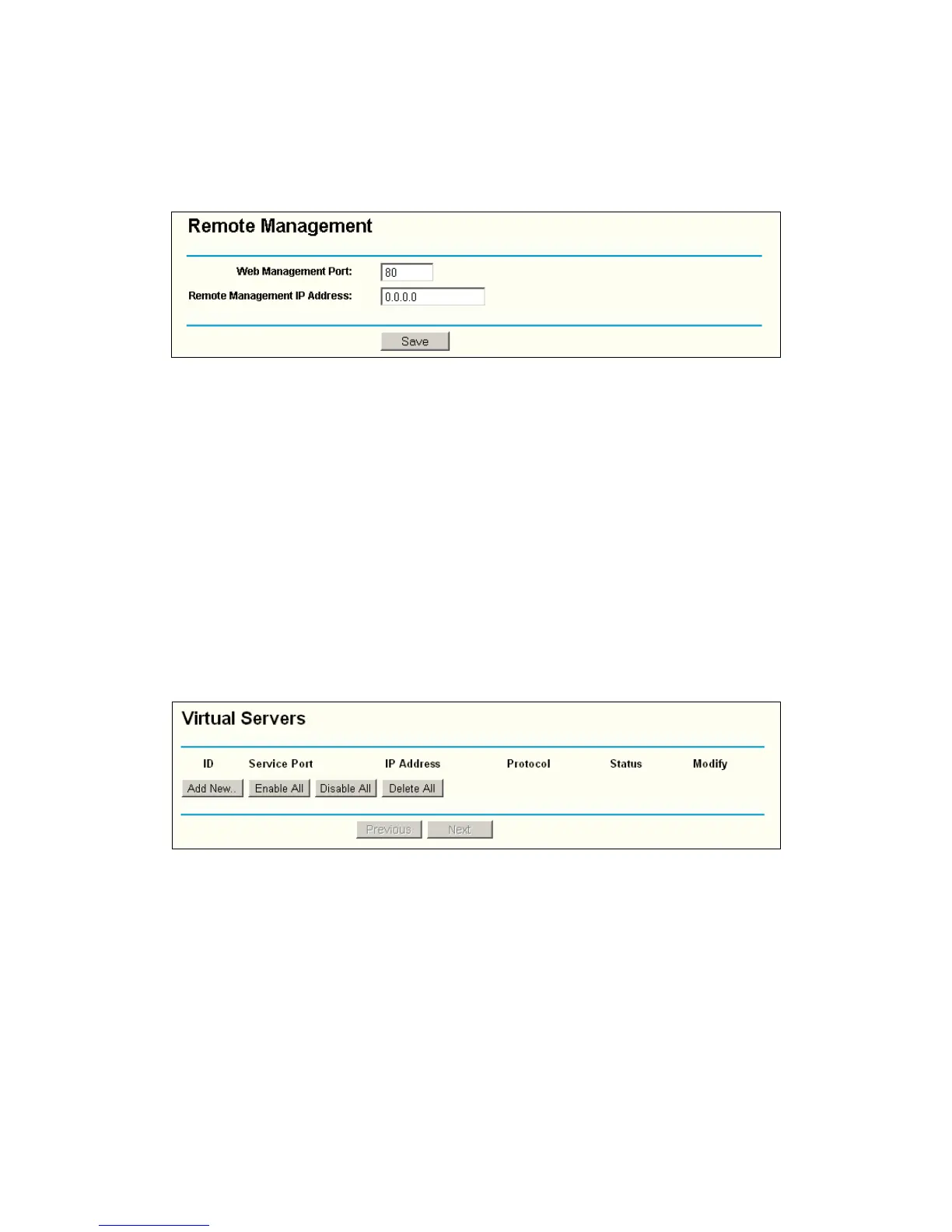

Figure A-7 Remote Management
)
Note:
If the above configuration takes effect, to configure to the router by typing
http://192.168.1.1:88 (the router’s LAN IP address: Web Management Por
t) in the address
field of the Web browser.
3) Login to the router, click the “Forwarding” menu on the left of your browser, and click the
"Virtual Servers" submenu. On the "Virtual Server" page, click Add New, then on the
“Add or Modify a Virtual Server” page, enter “80” into the blank behind the “Service Port”,
and your IP address behind the IP Address, assuming 192.168.1.188 for an example,
remember to “Enable” and “Save”.
Figure A-8 Virtual Servers
