TP-Link TL-WR841ND User Manual

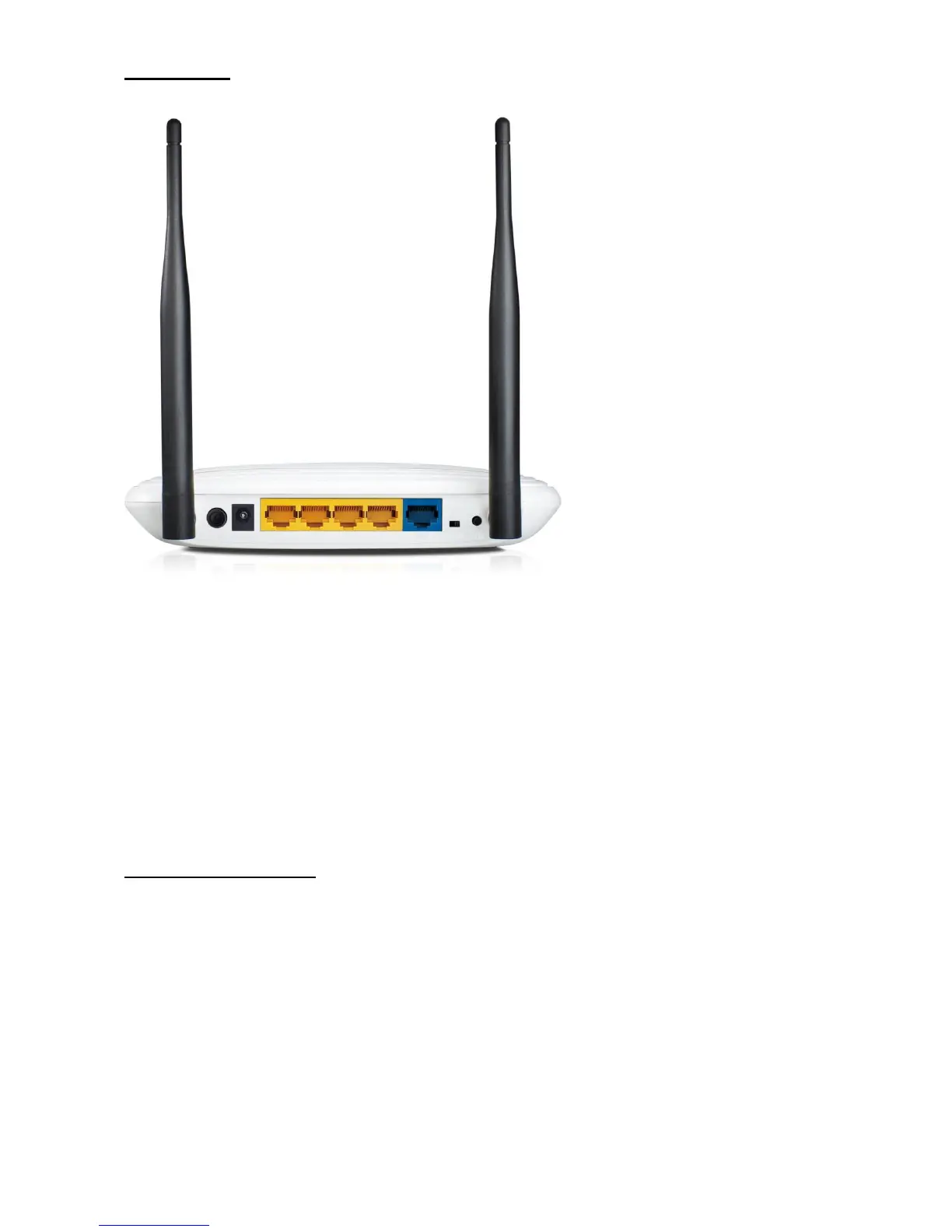

The Rear Panel
 ON/OFF: The switch for the power.
 POWER: The Power socket is where you will connect the power adapter. Please use the power
adapter provided with this TL-WR841N/TL-WR841ND 300Mbps Wireless N Router.
 4,3,2,1 (LAN): These ports (4,3,2,1) connect the Router to the local PC(s).
 WAN: This WAN port is where you will connect the DSL/cable Modem, or Ethernet.
 WIFI ON/OFF: This switch is used to enable/disable the Router’s wireless function.
 WPS/RESET: This button is used for both WPS and Reset function. To use the WPS function, press
it for less than five seconds; to use the RESET function, press it for more than five seconds.
Performing a Factory Reset
There are two ways to reset to the Router's factory defaults:
1. Use the Factory Defaults function on System Tools -> Factory Defaults page in the Router's
Web-based Utility.
2. Use the WPS/RESET button: With the Router powered on, press and hold the WPS/RESET button
(more than 5 seconds) until the SYS LED becomes quick-flash from slow-flash. Then release the
button and wait the Router to reboot to its factory default settings.

TP-Link TL-WR841ND Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Wireless Security	64/128/152-bit WEP / WPA / WPA2, WPA-PSK / WPA2-PSK
Antenna Gain	5dBi
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Ports	4 10/100Mbps LAN Ports 1 10/100Mbps WAN Port
Button	Reset/WPS Button
Power Supply	9VDC / 0.6A
Antenna	2 x 5dBi Detachable Omni Directional (RP-SMA)
