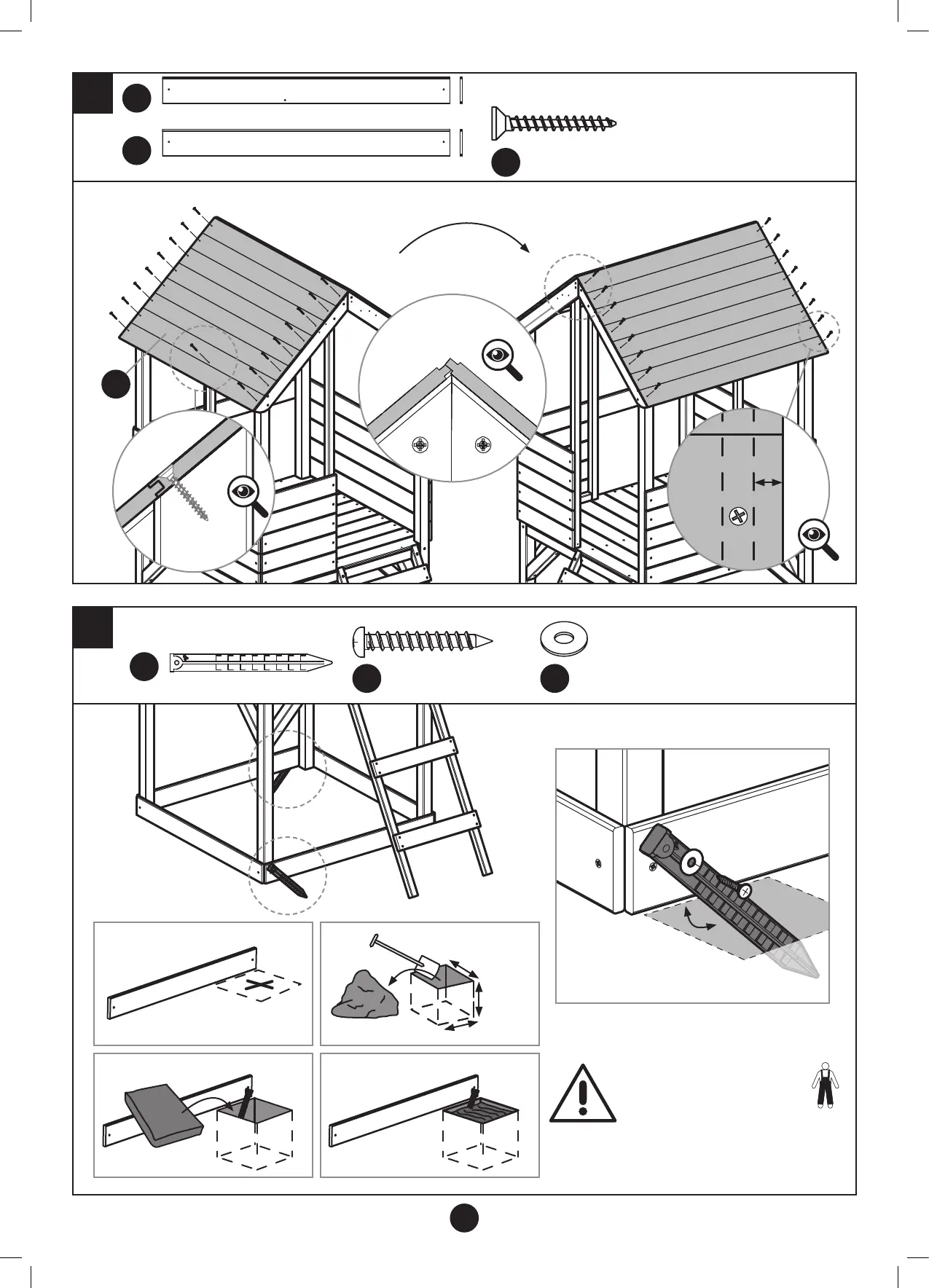

TP TP656 - Page 17

13
14
17
TP656 – TP Treehouse Wooden Play Tower
x2
E
E FA4526 3.5x30mm
wood screw x33
*MOVE TO FINAL LOCATION
BEFORE ADDING GROUND PEGS
*2 OR MORE PEOPLE ARE
REQUIRED TO MOVE PLAYHOUSE
x2
14
14 MW3339 x1 927mm
15
15 MW3009 x15 927mm
F
F FA9717 6x40mm
Wood screw x2
G
G PM2001 x2
45°
300mm
300mm
300mm
post-mix concrete
*not supplied
K
K FA6210 M6x15mm
Washer x2
14
10mm
