T+A KW 650 - Wiring Variants for Connection

18

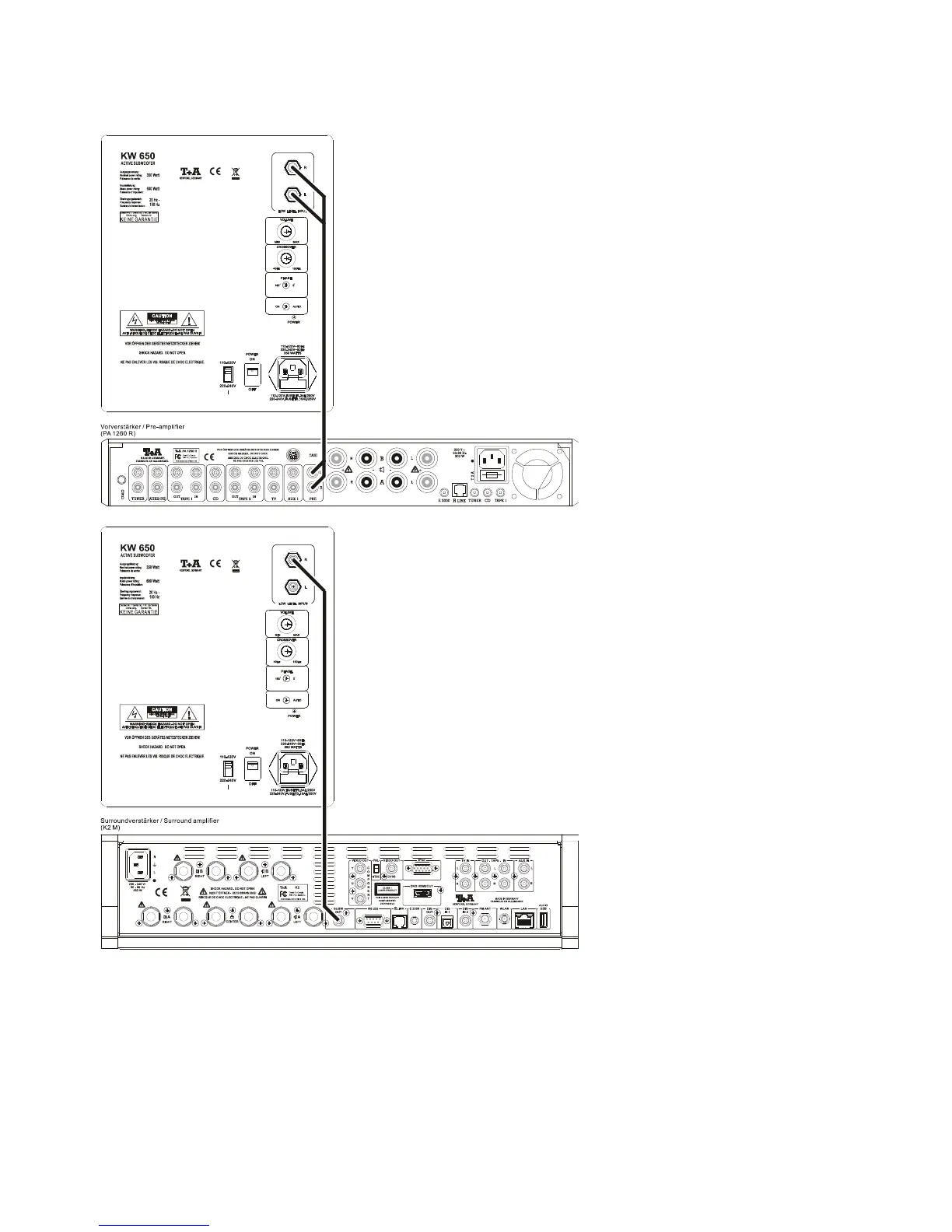

Wiring variants
Connecting the sub-woofer
to a pre-amplifier or
integrated amplifier with
pre-amplifier outputs
Connecting the sub-woofer
to a surround amplifier
The LOW LEVEL INPUT sockets on the sub-woofer are connected to the output
sockets of the pre-amplifier using Cinch leads.
The speaker's internal crossover passes the low-frequency part of the signal to the sub-
woofer.
Use without control voltage:
The automatic power-on circuit is triggered by the pre-amplifier signal.
