Accurate matching is crucially important to the sound quality produced by
a pick-up system. For this reason the phono module features a set of
rotary switches which enable the user to adjust it perfectly to suit all
current pick-up systems.

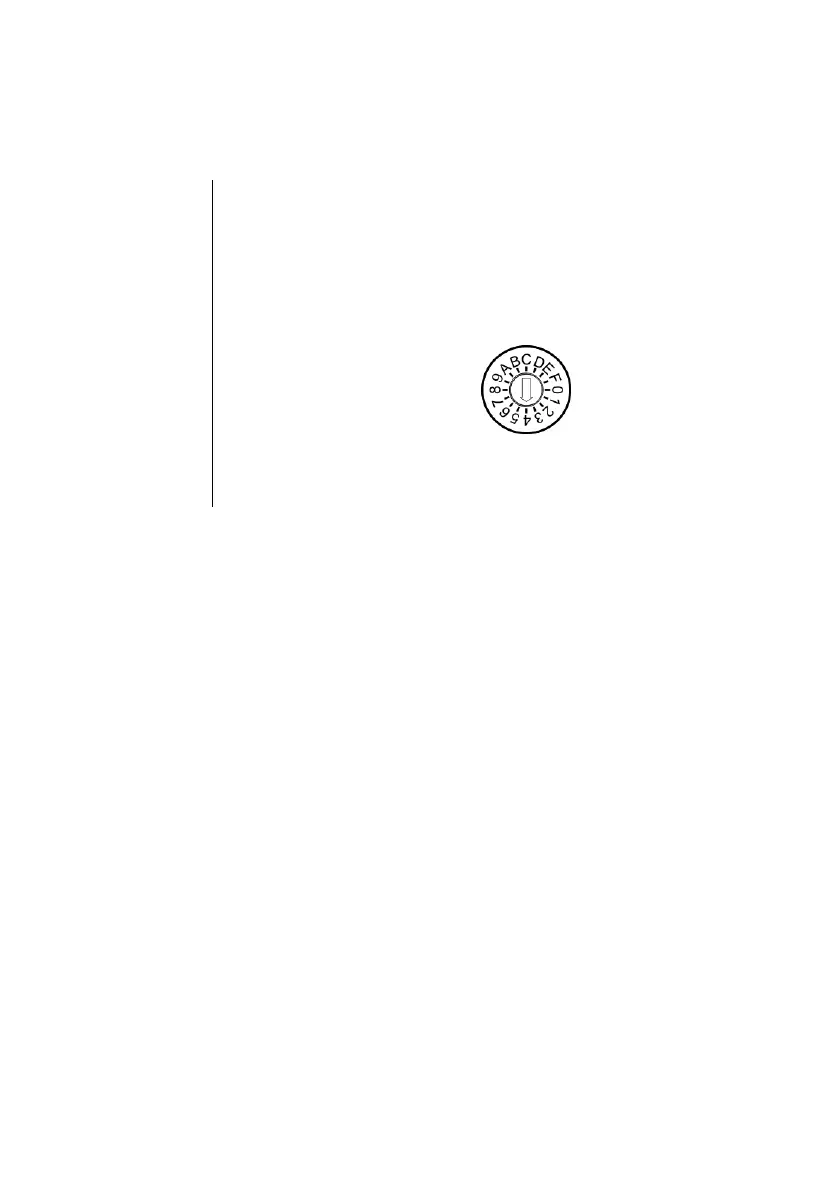

The rotary switches can be turned to a desired position using a small
screwdriver. The arrowhead on the switch points to the selected switch
position (on the figure below = position '4' ).
The input sensitivity, capacitance and impedance should be adjusted as
shown in Tables 1 to 4.
