Connection Identification Points (continued)
Figures 6 and 8 identify the wiring points in the T240 Autotransformer:
A Only 240 volt AC (L1) input/output connections are made on this
circuit breaker terminal.
B This is the service crimp on the lower ganged breaker. Only 120
volt AC input/output wires connect to this service crimp.
C Only 240 volt AC (L2) input/output connections are made on this
circuit breaker terminal.
D This is the service crimp on the upper ganged breaker. Only
120 volt AC input/output wires connect to this service crimp.
GROUND This is the ground block contained in the T240. All ground wires
connect to this block for both source and load.
NEUTRAL This is the neutral block contained in the T240. All neutral wires
connect to this block for both source and load (except as noted in
the procedures).

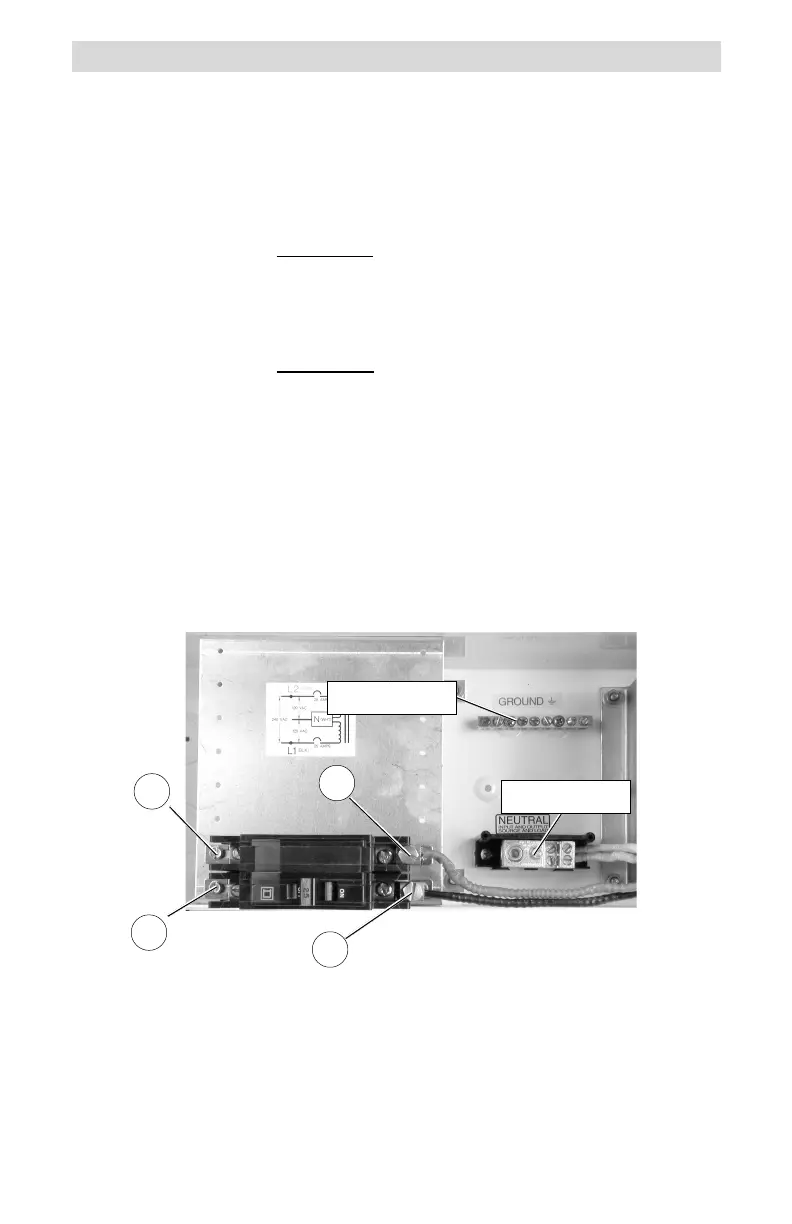

Figure 6
Connection Point Identification
GROUND
NEUTRAL
A
C
D
B
2.0 INSTALLATION
6
