Optional Circuit Breakers

Up to six additional Square D QOU circuit breakers can be installed in the

T240 enclosure. Front panel knockouts and predrilled holes provide for easy

mounting of additional breakers.

The example below shows these additional breakers used to protect and

control six 120 volt AC loads. Different circuit configurations can be arranged

depending upon your powering needs.

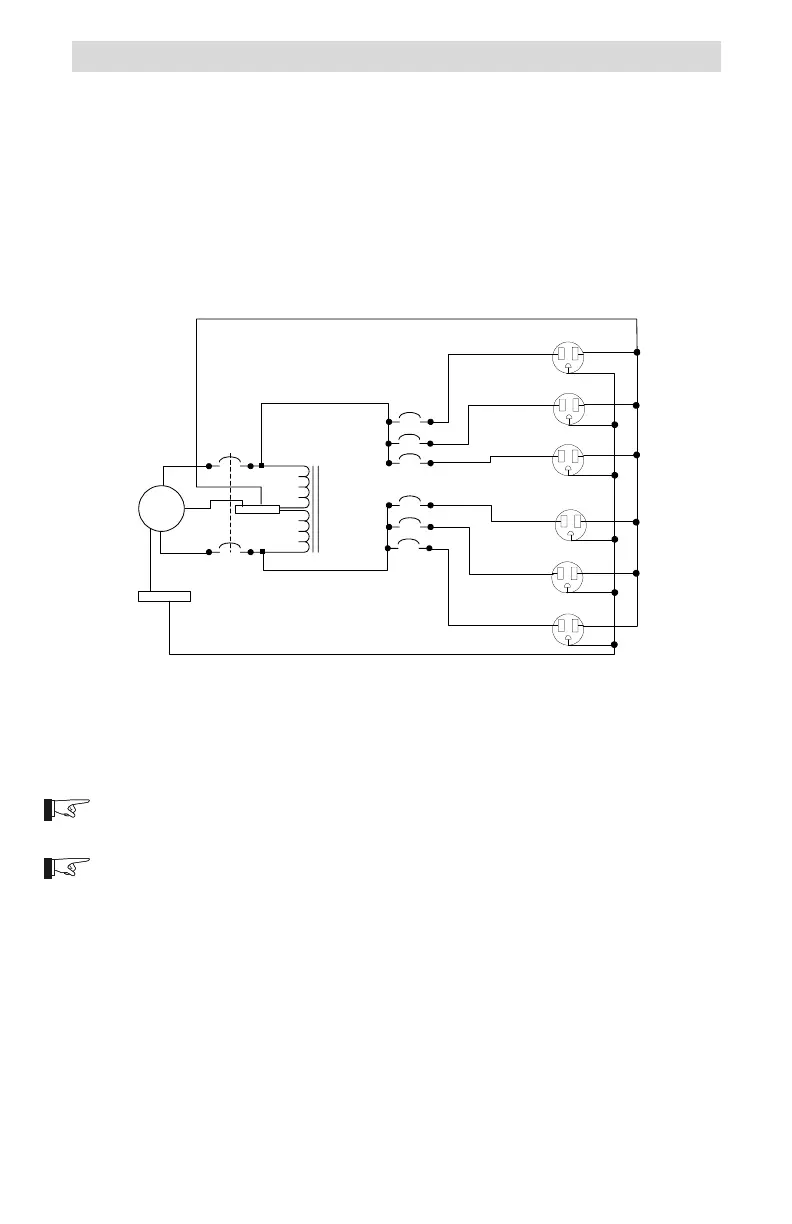

Figure 14

Step Down Arrangement Using Optional Breakers

2.0 INSTALLATION

NOTE: Provisions for connecting the additional neutral wires may need to be

added.

NOTE: The T240 has not been listed with UL with additional breakers installed.

NEUTRAL

975-S00-010

GROUND

120 VAC Load

HOT

240 VAC

Source
