Instructions for use
EN
Tracer RVIEW S2

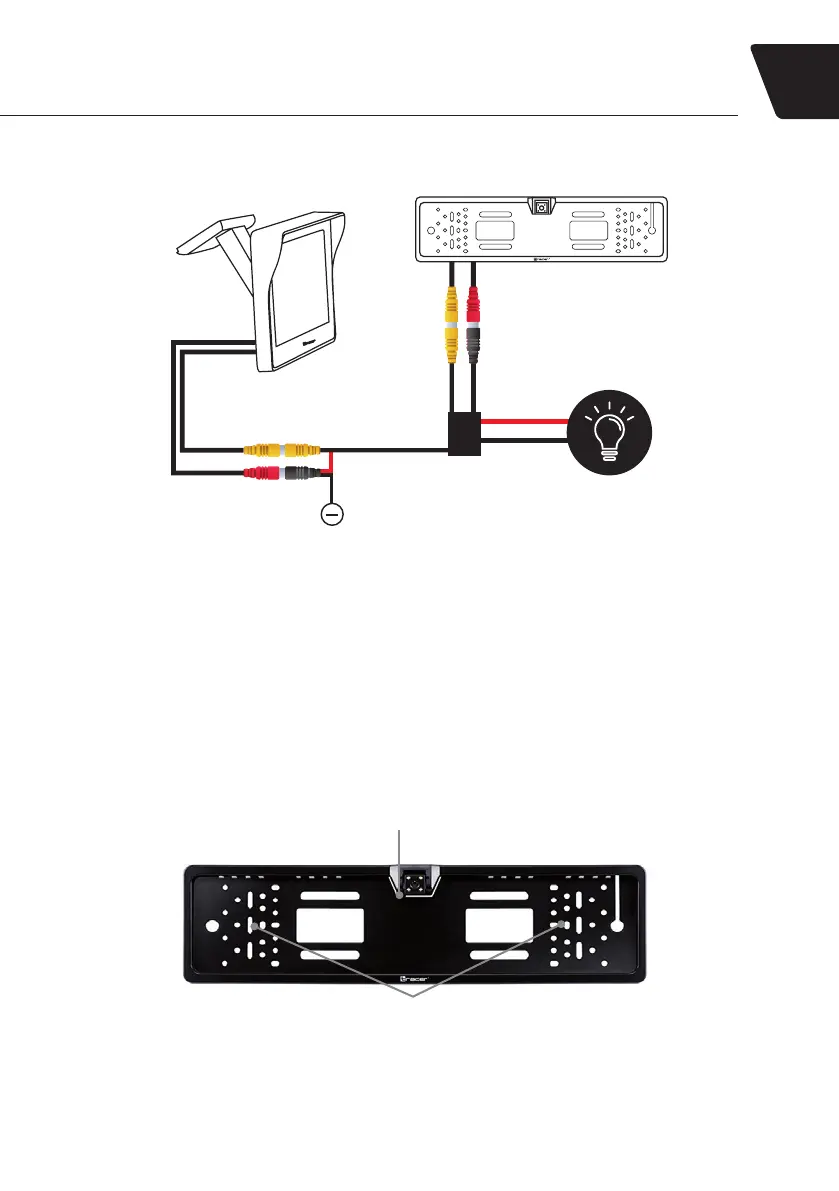

INSTALLATION OF THE SET
CABLE 6 m
VIDEO-POWER SUPPLY
GROUND
MOUNTING THE CAMERA FRAME ON THE CAR
1. Remove the original plate along with the frame.
2. Locate the point (trunk handle, any other technical opening) where you can insert the cable (50 cm
length) into the trunk.
3. If there is no factory-made inlet available, it is necessary to drill a hole with diameter allowing to insert
rst the yellow, and second – the red cinch cable tted at the end of the frame wiring.
4. Before installing the frame, you have to decide how to x the plate frame (see sec. 5)!
5. The plate is xed at the top by the UPPER PLATE CLIP; however, at the bottom, it should be xed
individually by the user:
a. You may x it using screws used to x the frame to the body of the car.
b. You may fasten the plate to the frame using additional screws (not supplied), using MULTI-
PURPOSE MOUNTING HOLES in the frame.
c. You may x the plate to the frame using zip ties (not supplied), using MULTI-PURPOSE
MOUNTING HOLES in the frame.
MULTI-PURPOSE MOUNTING HOLES:
• Fixing the registration plate
• Fastening the frame to the body of the car
UPPER PLATE CLIP
6. Fasten the frame using original xing of the factory-made plate frame; but rst remember to insert the
cables through the specially made hole in the car body.
