Wiring the Solar Panel to the Sign
To wire the solar panel to the sign:
1. Open the sign and make sure that any battery connectors are properly connected and the sign is
powered on.
2. Close the sign.
WARNING: It is vitally important, whenever you close the sign, that you close and lock all of the latches
properly to avoid water infiltration as this could damage the sign and void your warranty.

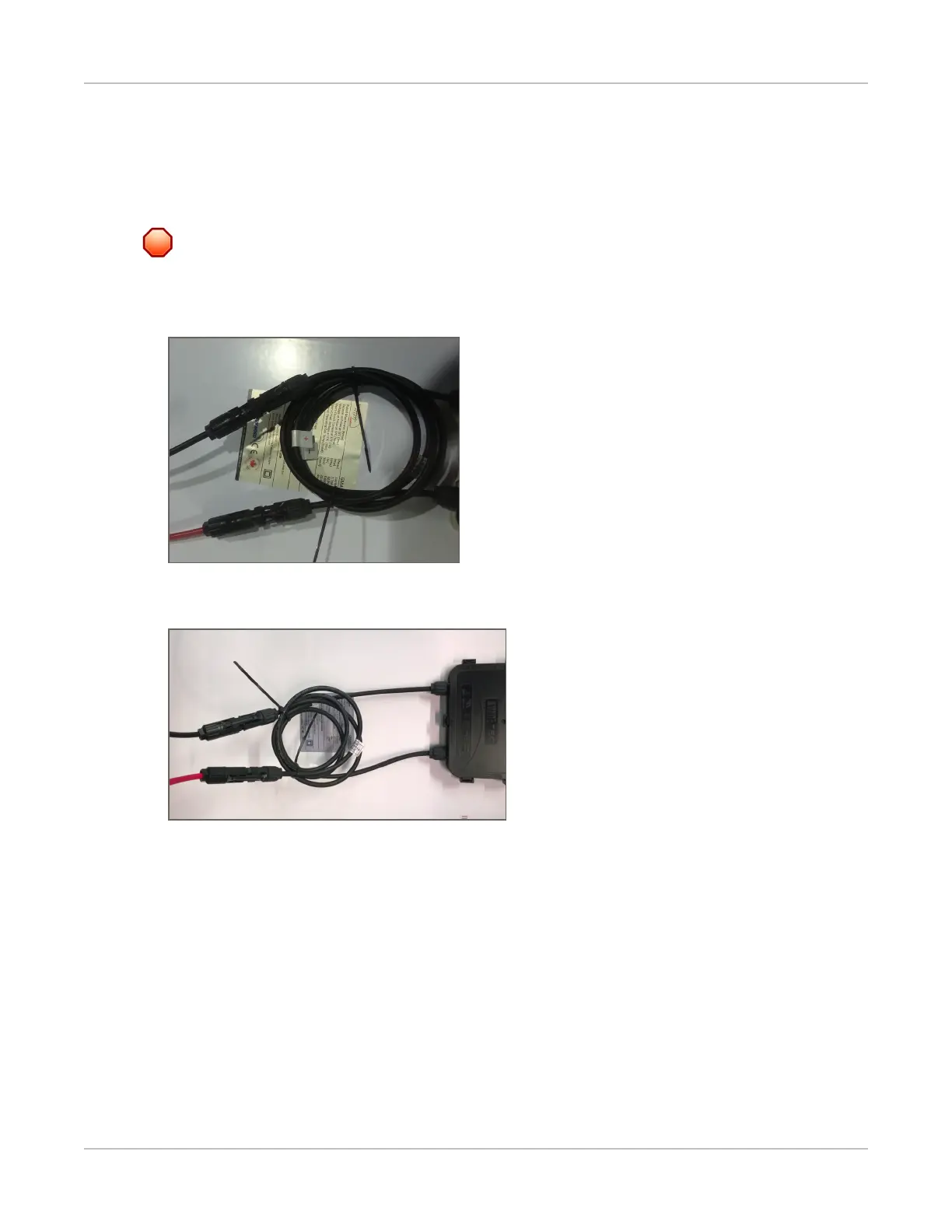

3. Insert the connectors from the sign into the corresponding connectors from the solar panel as shown
below.
4. Slide the connectors together until you hear a click and you can no longer slide them apart easily. Once
connected the cables should look like the following:
SafePace® Evolution 15SD Installation Manual p. 17
