CHALLENGER 200UTV P. D. I
8
2. Assembly：

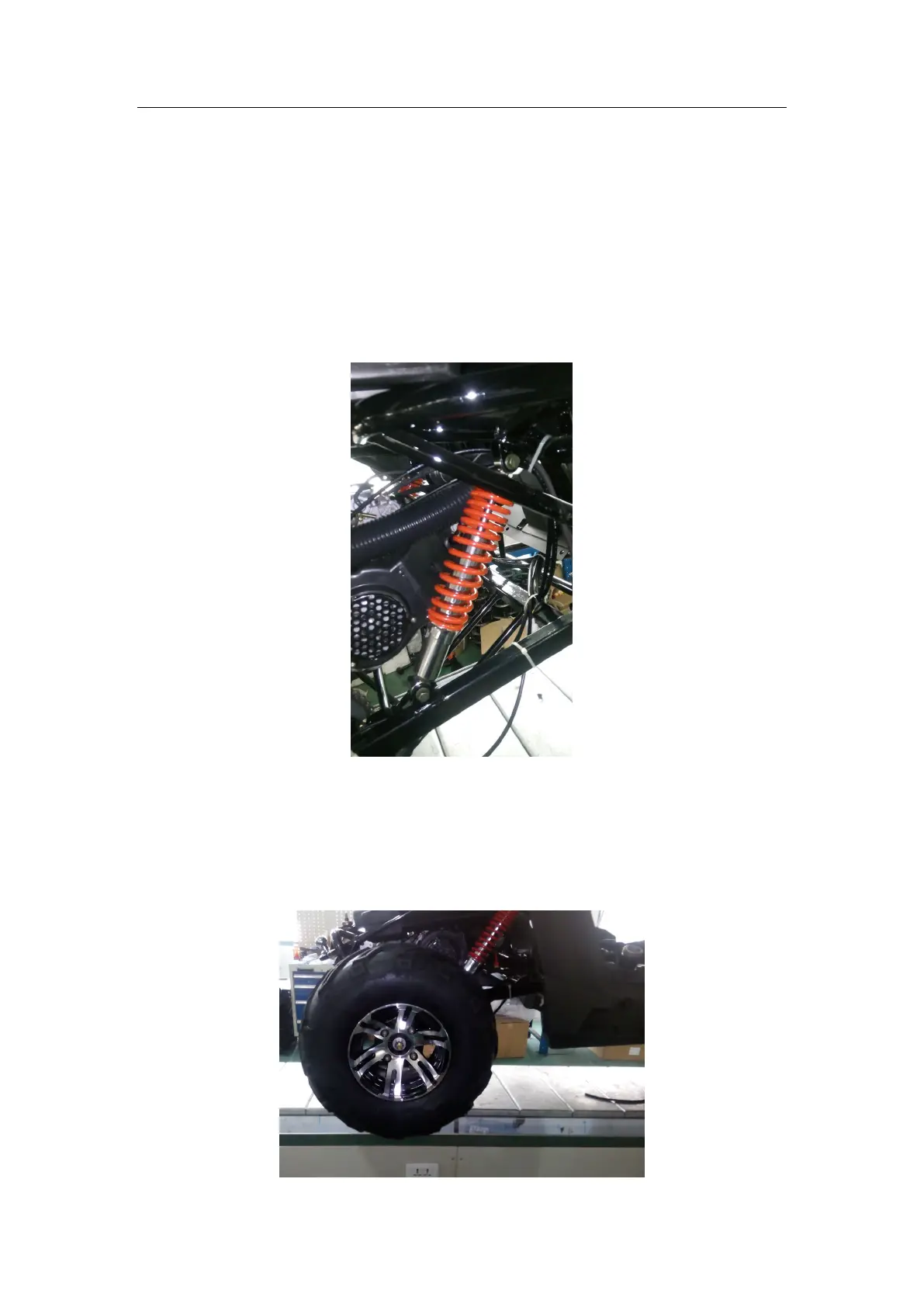

2.1 Assemble the rear shocks: take down the bolts from the shocks; lift
the rear swing arm to let the top of shock into the fixing seats of frame,
use 37-44NM torque to fix the shocks attached the frame. (Note: 1NM =
0.74 lb ft):
2.2 Assemble the rear wheels (pic.18): screw the castle nut M16x1.5
tightly with 98-103NM, then open the cotter pin 3X40 for fixing, cover
the hub cover. (pic shown is for X model)
