CHALLENGER 200UTV P. D. I
9

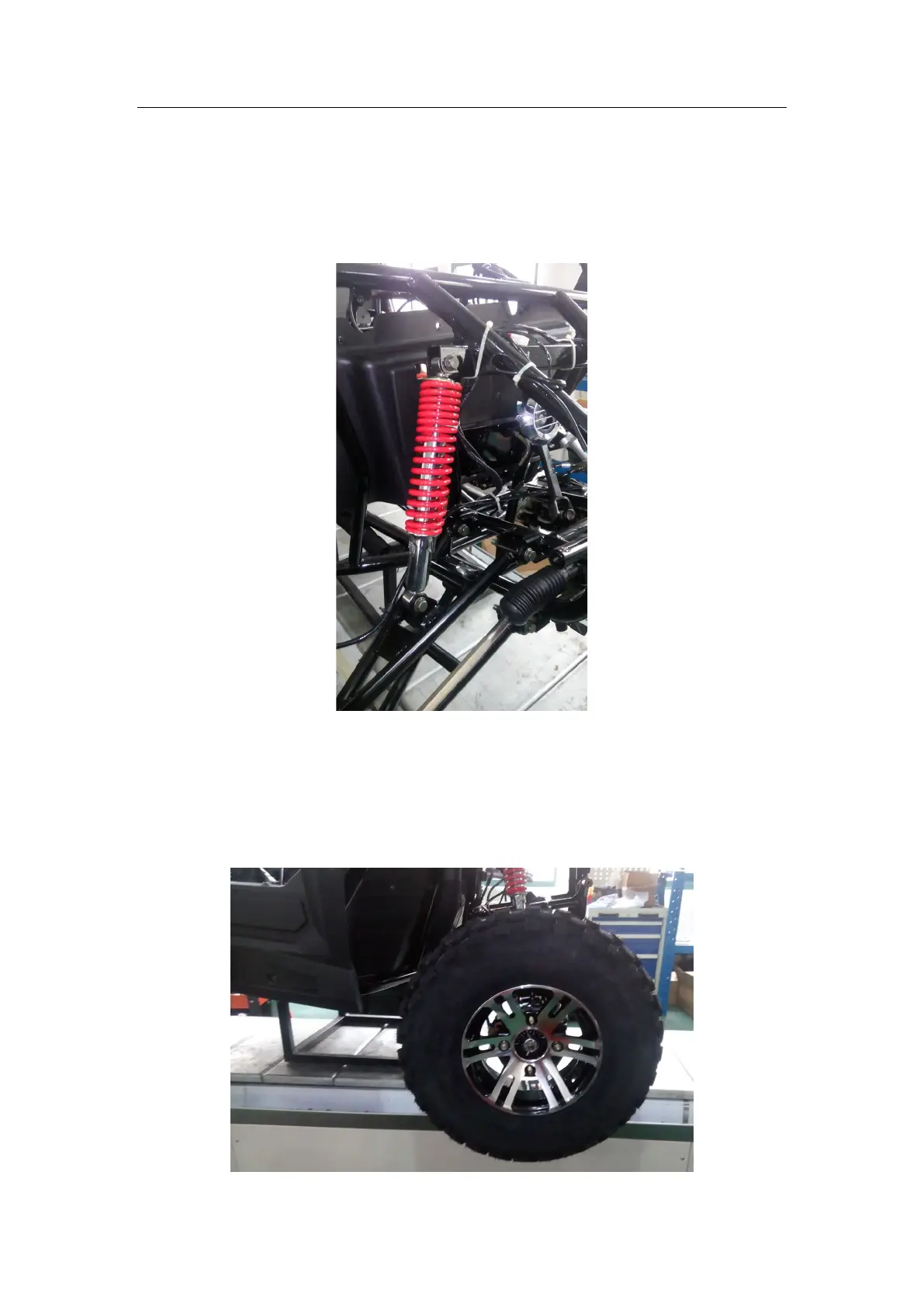

2.3 Assemble the front shocks: Take down the bolt on the shocks, attach
the shock to the front lower suspension arm, and fix the bolt with
37-44NM torque:
2.4 Assemble the front wheel: Take down the tire bolts on the hub, set up
the front wheel on the right position of hub, fix the tire bolts with
37-44NM torque, put on the hub cover. (pic. Shown is for X model)
