Removal and Installation
14 COM-SVN003B-EN
• When brazing, always use a nitrogen purge to prevent
the formation of copper oxide contamination that can
damage the compressor.
Electrical Connections
CSHW 047-089
The phases on the terminal block are color coded:
• Red - PhaseL1
• Blue - PhaseL2
• None - PhaseL3
The CSHW compressor is designed for use with terminal
plugs.
Before starting the compressor, check the electrical
phasing with a phase sequence meter similar to an
Ideal-Sperry Model 61-520.
WARNING
Hazardous Service Procedures!
Failure to follow all instructions in this manual and on
the tags, stickers, and labels could result in death or
serious injury.
Technicians, in order to protect themselves from
potential electrical, mechanical, and chemical hazards,
MUST follow precautions in this manual and on the
tags, stickers, and labels, as well as the following
instructions: Unless specified otherwise, disconnect all
electrical power including remote disconnect and
discharge all energy storing devices such as capacitors
before servicing. Follow proper lockout/tagout
procedures to ensure the power can not be
inadvertently energized. When necessary to work with
live electrical components, have a qualified licensed
electrician or other individual who has been trained in
handling live electrical components perform these
tasks.

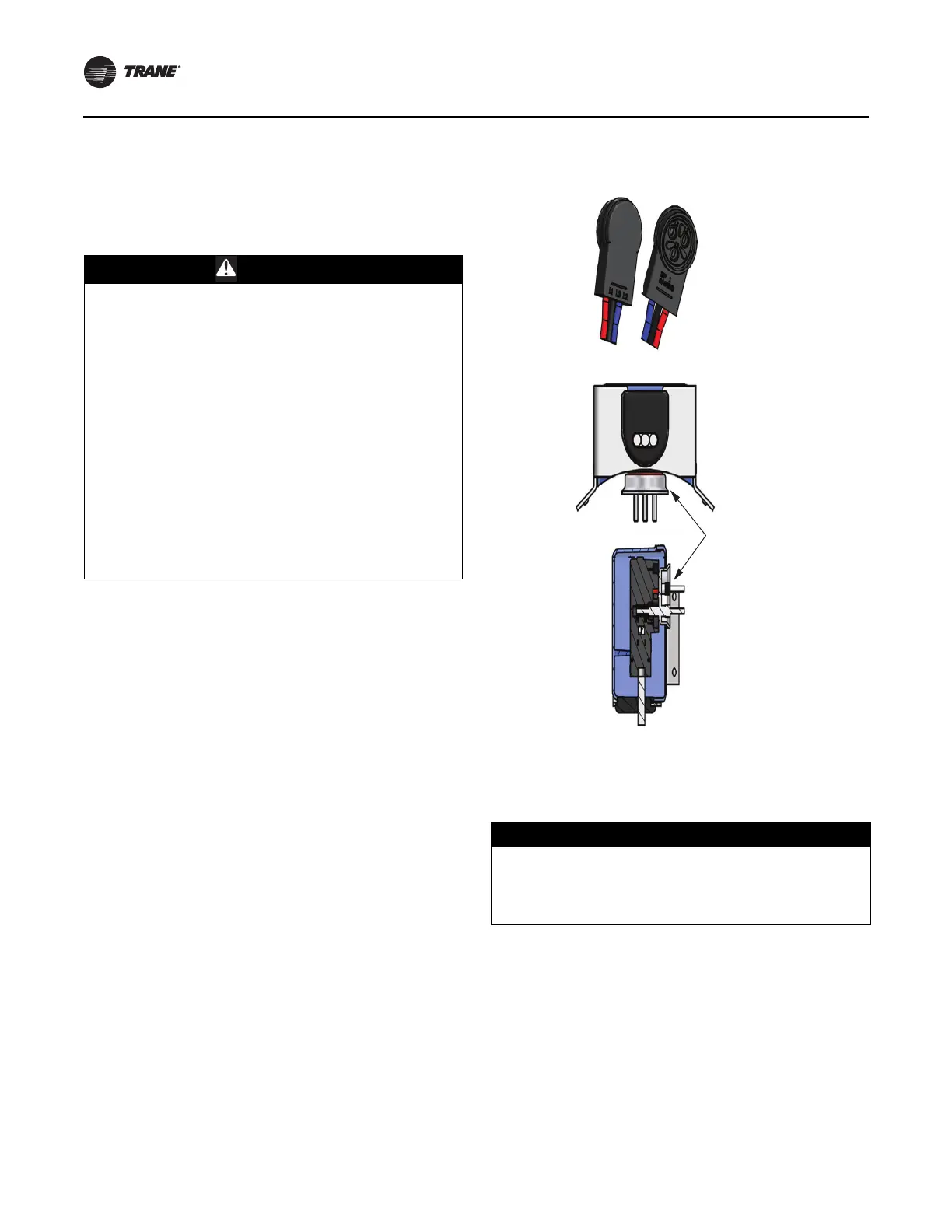

Figure 4. Color coded compressor power plug
NOTICE
Compressor Damage!
Operating the compressor with improper phasing could
cause compressor failure. Check phasing before starting
compressor.
Hermetic Feed
through
