18-GE04D2-15 11
Installer’s Guide
COMFORT CONTROL
2-STAGE HEAT/
1-STAGE COOL
VARIABLE SPEED
AIR HANDLER
COOLING
O.D. SECTION
(SINGLE SPEED)
NOTES:
1. LOW VOLTAGE WIRING TO BE NO.
18 A.W.G. MINIMUM CONDUCTOR.
2. WHEN HEATERS ARE USED, DISCARD
POWER LEADS WITH POLARIZED PLUG
PM-A AND CONNECT 1-PF TO MATING
PLUG IN THE HEATER CONTROL BOX
AS SHOWN.
3. TERMINAL W2 WILL HAVE INTERNAL
CONNECTIONS ONLY IF 2ND
CONTACTOR IS USED BY THE HEATER
FOR CONTROLLING POWER TO
ELECTRIC HEAT ELEMENTS. IF
2ND (BH) CONTACTOR IS NOT USED,
THEN FIELD CONNECTIONS TO W2 CAN
BE OMITTED AS APPROPRIATE.
4. CONNECTIONS TO "R", "BK",
"O" AND "Y" MUST BE MADE AS
SHOWN FOR PROPER OPERATION
OF BLOWER WITH HUMIDISTAT IN
COOLING.

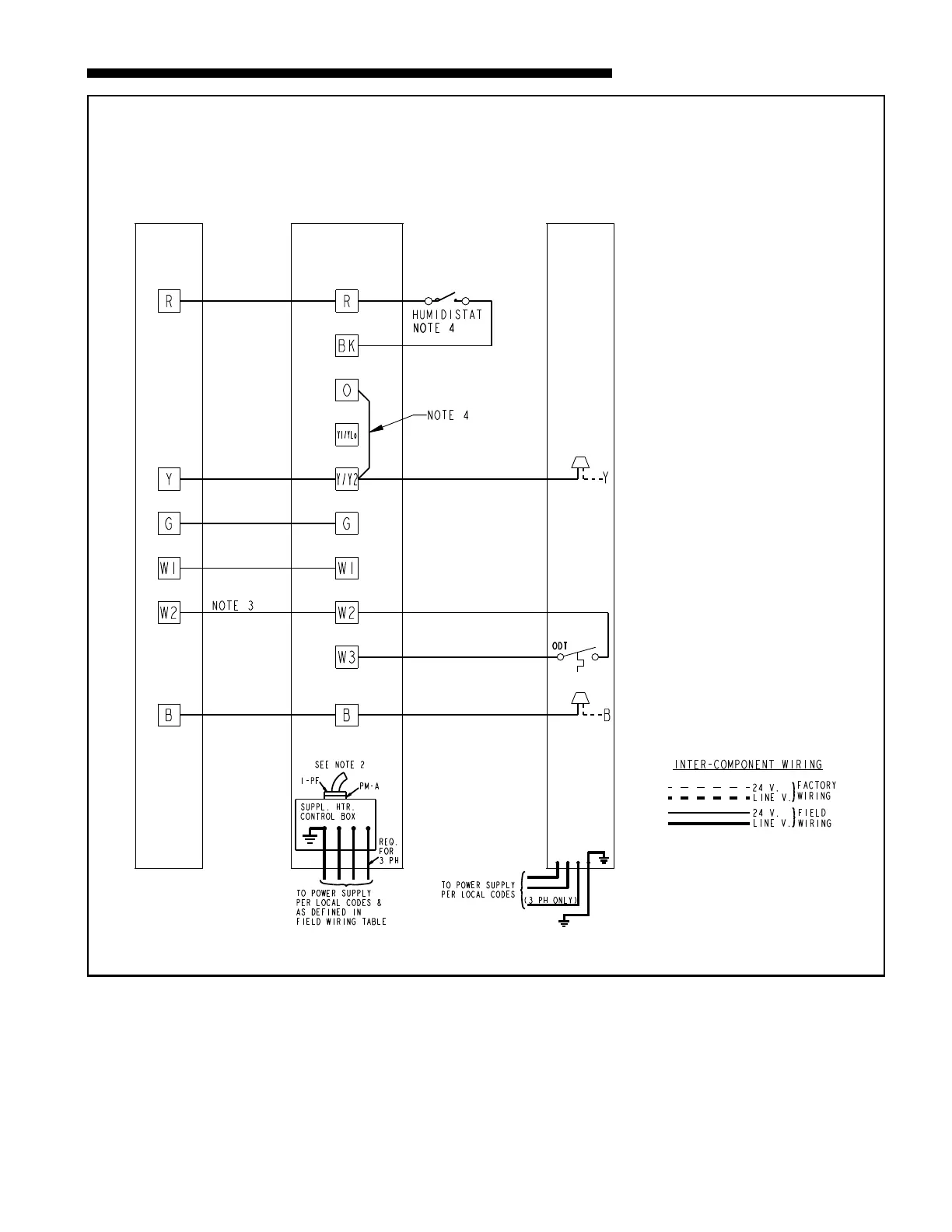

4TEE3F AIR HANDLERS WITH SINGLE STAGE COOLING, 2 STAGE HEAT
From Dwg. No. B801074
