Trane BAYECON203AA - Page 3

3
INSTALLER’S GUIDE

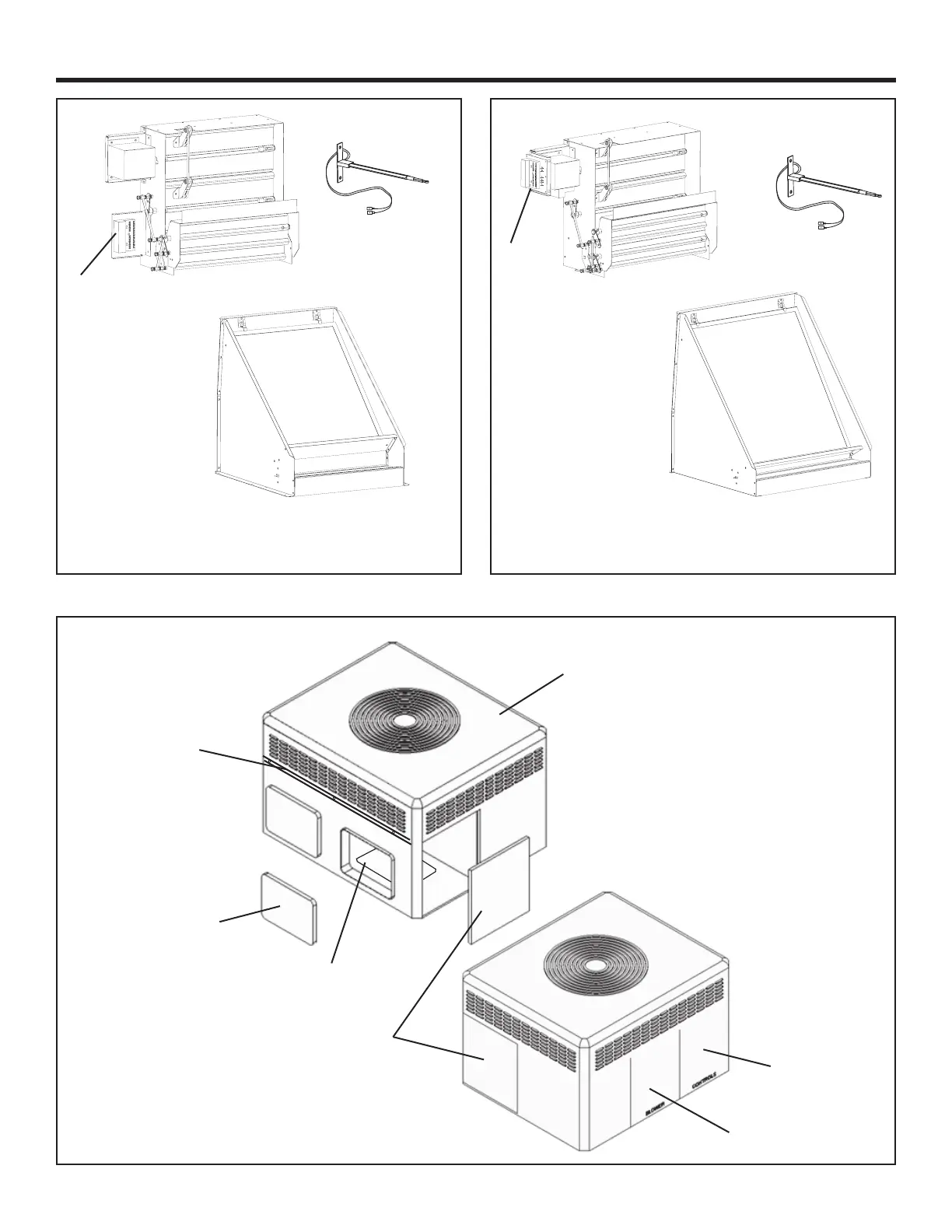

Figure 1. Remove Panels
Horizontal
Return Air
Panel
Down Flow
Return Air
Panel
Blower Access Panel
Control Box Ac-
cess Panel
Coil Access
Panel
Top Sealing
Flange
Economizer AB CD EF
BAYECON203AA/AB/AC 22" 20" 16-7/8" 15-11/16" 11-11/16" 15"
BAYECON204AA/AB/AC 26" 22-21/32" 19" 17-11/16" 14-11/16" 21-3/8"
Economizer & Logic Module
(Logic Module not shown
located inside economizer)
Mixed Air Sensor
Duct
Rain Hood &
Mist Elimi-
nator
(Mist
Eliminator
not shown,
located
inside Rain
Hood)
Gaskets (2)
A
B
D
E
F
C

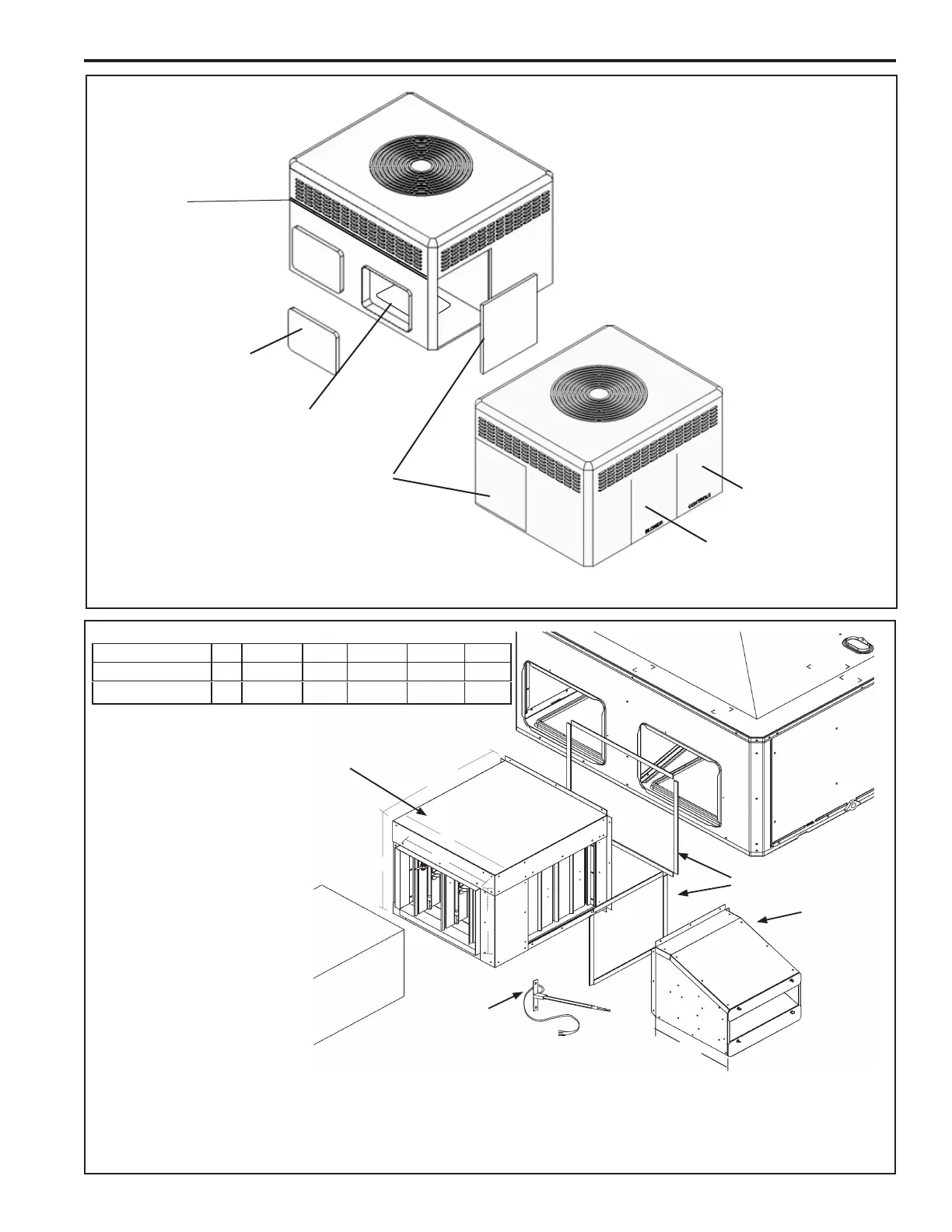

Figure 2. Horizontal Economizer Assembly & Kit Contents
NOTE: BAYECON204A economizer only contains two clearance notches in the top ange, BAYECON203A shown.
