25
CVHE-SVN01C-EN
CT-12 Spring Isolators
Isolator Maximum Spring
Type Load Deflection Color
and Size (lbs.) (Inches) Coding
CT-12-25 5,400 1.22 Red
CT-12-26 7,200 1.17 Purple
CT-12-27 9,000 1.06 Orange
CT-12-28 10,800 1.02 Green
CT-12-31 13,200 .83 Gray
CT-12-32 15,600 .74 White
Note: Each type CT-12 spring isolator has 12 springs.
General Information
1/4"
(6.3mm)
Acoustical
nonskid
neoprene
pad (top
and
bottom)
(2) 1-B UNC Adjusting
and Leveling Bolts

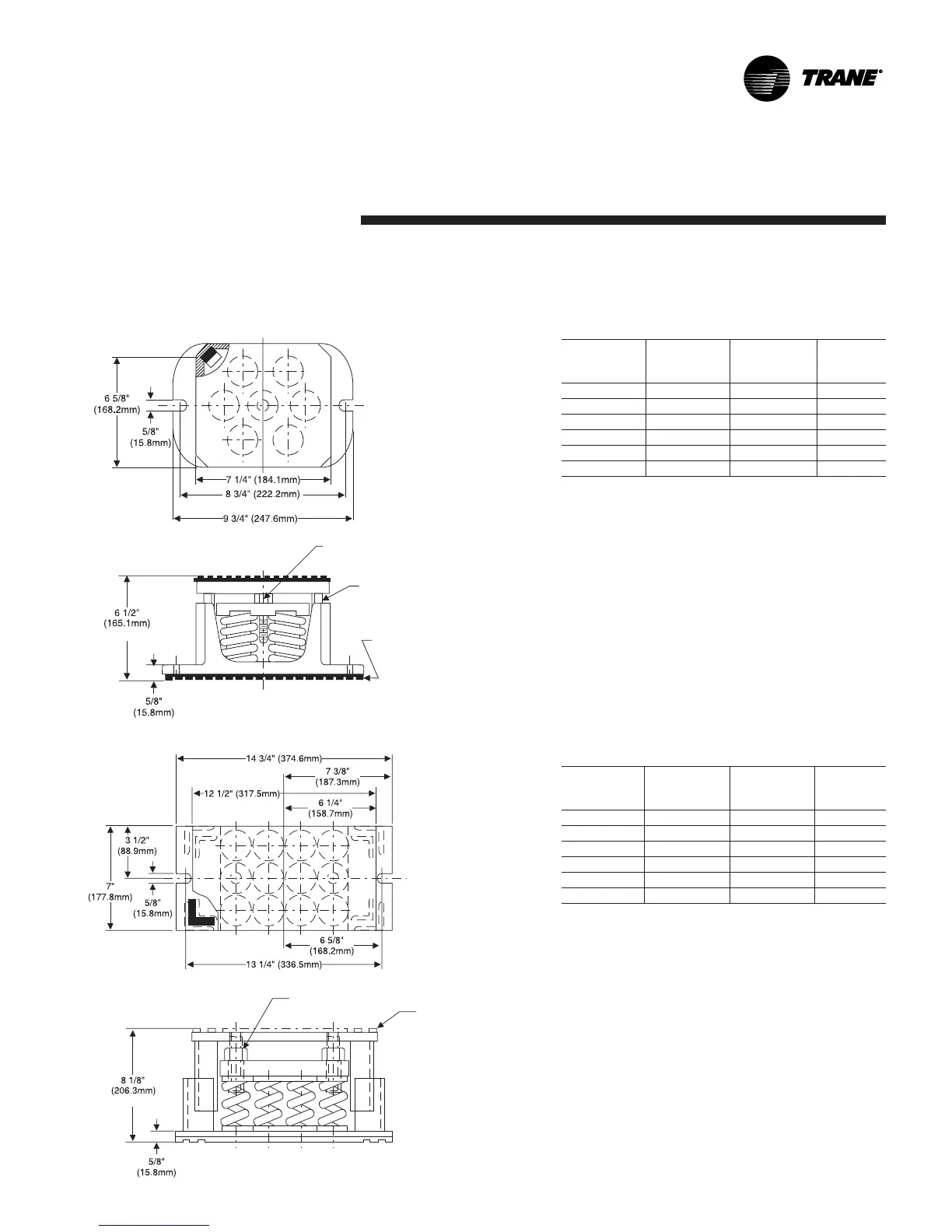

Figure 9 (continued). Typical spring isolator types and construction
Type CT-7 Spring Isolators
Isolator Maximum Spring
Type Load Deflection Color
and Size (lbs.) (Inches) Coding
CT-7-25 3,150 1.22 Red
CT-7-26 4,200 1.17 Purple
CT-7-27 5,250 1.06 Orange
CT-7-28 6,300 1.02 Green
CT-7-31 7,700 0.83 Gray
CT-7-32 9,100 0.74 White
Note: Each Type CT-7 Spring Isolator has 7 Springs
C-C Foundation Bolts
3/4" (19.0mm)
10 UNC Adjusting and leveling bolt
Adjust isolator so that the upper
housing clears the lower housing
by at least 1/4" (6.3mm) and not
more than 1/2" (12.7mm)
Free Height
