Trane COL32491 - Page 6

6
18-AH77D1-1A-EN

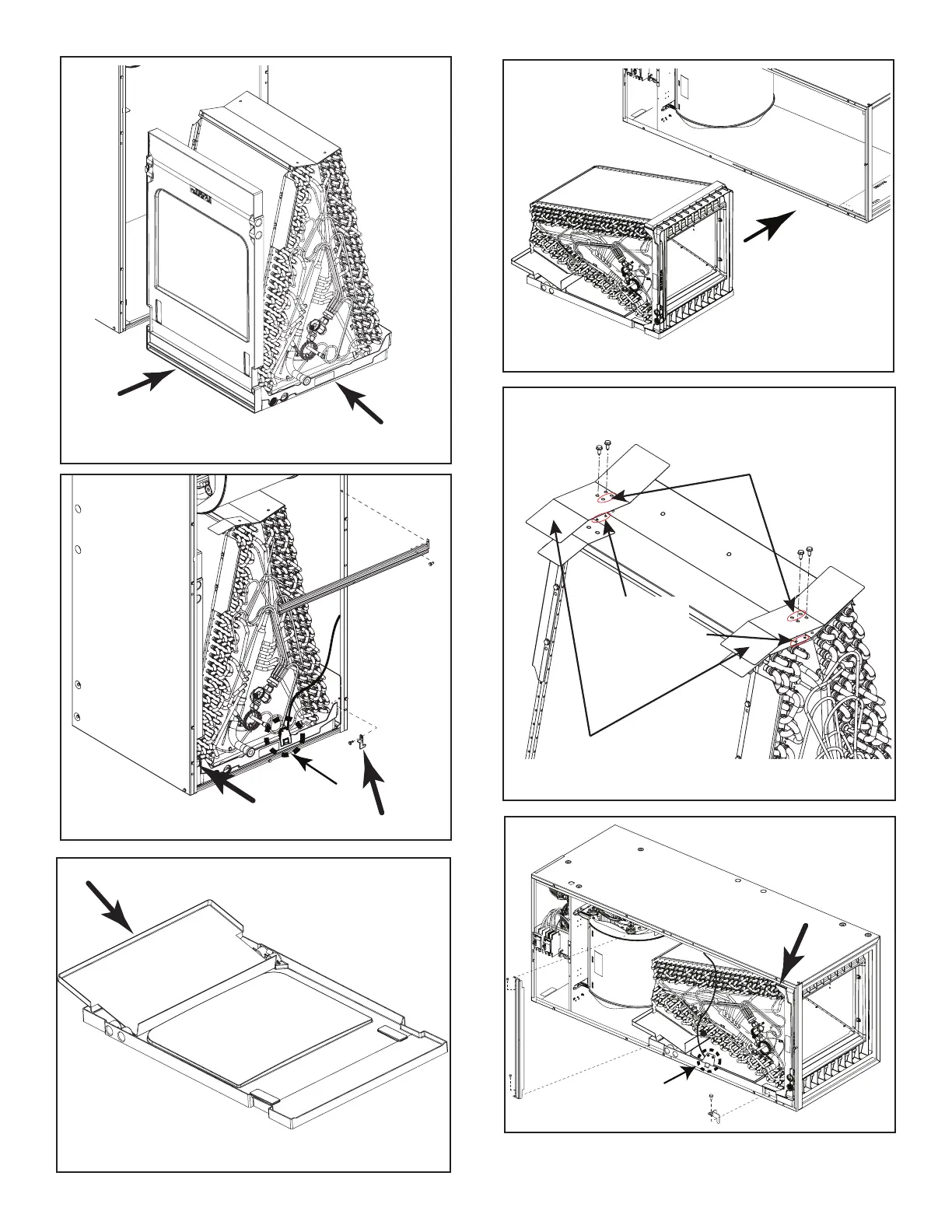

Figure 9
Figure 10
Refrigerant
Sensor
Figure 11
Figure 14
Refrigerant
Sensor
Figure 12
For horizontal installations, Install extensions
on top baffle as shown using included screws
Orient unused holes
over the top baffle
Extensions will extend 1"
from ends of top baffle
and cover the tabs
Holes in top baffle
indicate extensions
should be installed.
NOTE: Not required
when 26.5" retrofit kit
is used.
Figure 13
