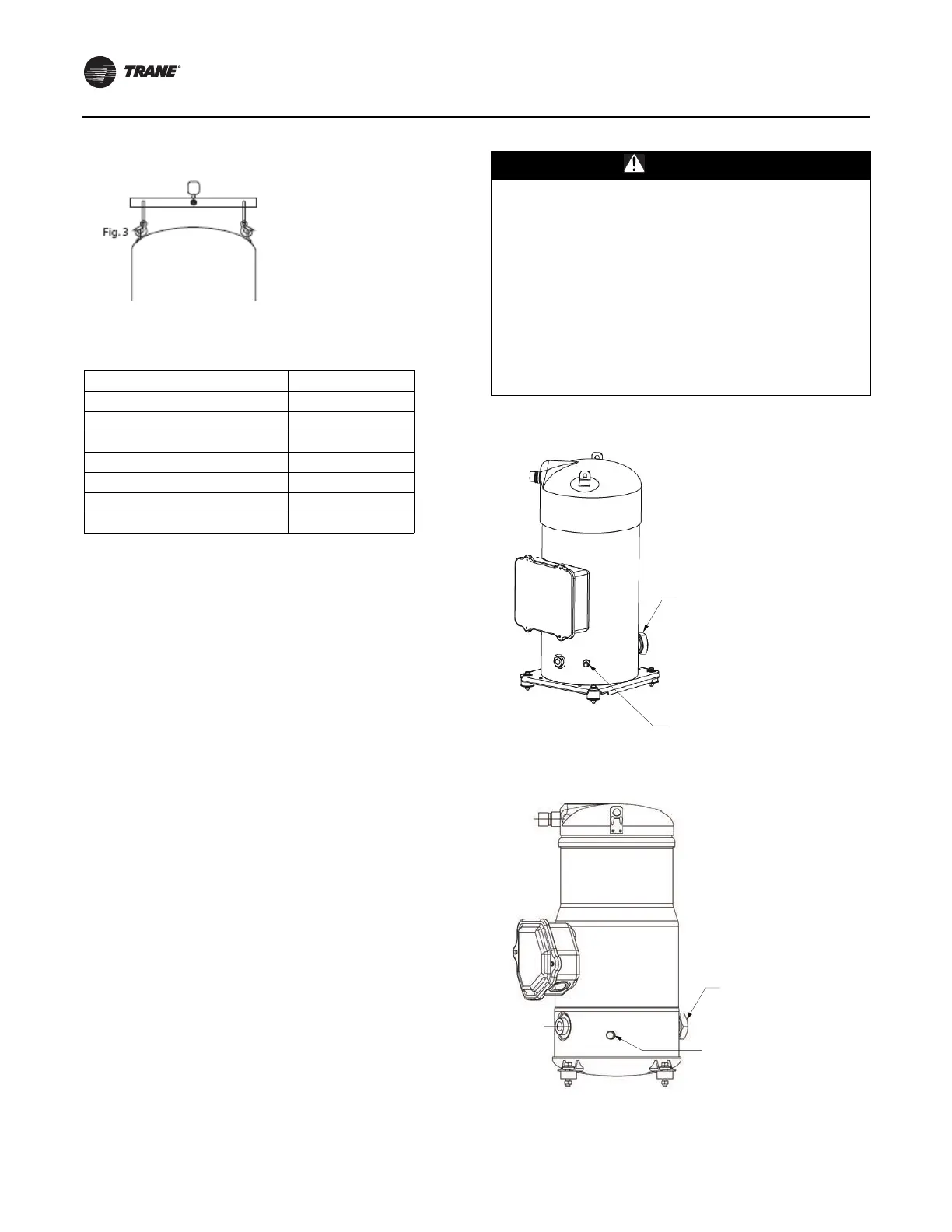

Figure 3. Lifting compressor with spreader bar
General Information
10 COM-SVN01D-EN
Use lifting hooks with close clasps.
Table 3. Compressor weight with full oil charge
Model Weight (lb)
CSHD 075 - 092 128
CSHD 103 - 125 142
CSHD 136 - 161 150
CSHD 175/183 160
CSHN 176 - 250 236
CSHN315 337
CSHN374/CSHL374 362
The compressor and its packaging must not be exposed to
rain and/or corrosive, flammable atmosphere.
The compressor must not be stored in an environment less
than -31°F
(-35°C) or to exceed +160°F (+71°C).
Pre-Installation Inspections
Check the following before using the compressor:
• Compressor for visible shipping damage.
• Compressor is the correct model/part number.
• Compressor is the correct voltage.
• Compressor ship-with items:
– Restrictors for use with tandem and trio
compressors.
– Oil equalizer Teflon
®
gaskets.
WARNING
R-410A Refrigerant under Higher Pressure
than R-22!
Failure to use proper equipment or components as
described below, could result in equipment failing and
possibly exploding, which could result in death, serious
injury, or equipment damage.
The units described in this manual use R-410A
refrigerant which
operates at higher pressures than R-
22. Use ONLY R-410A rated service equipment or
components with these units. For specific handling
concerns with R- 410A, please contact your local Trane
representative.
Figure 4. Model CSHN/CSHL
Oil equalizer rotolock
connection fitting
Oil valve with
dip tube
Figure 5. Model CSHD
Oil equalizer rotolock
connection fitting
1/4 Schrader port
