Trane Fan - Size 40 Fan Performance

39
Performance
Data
Q Fan and
Super Q II
Size 40

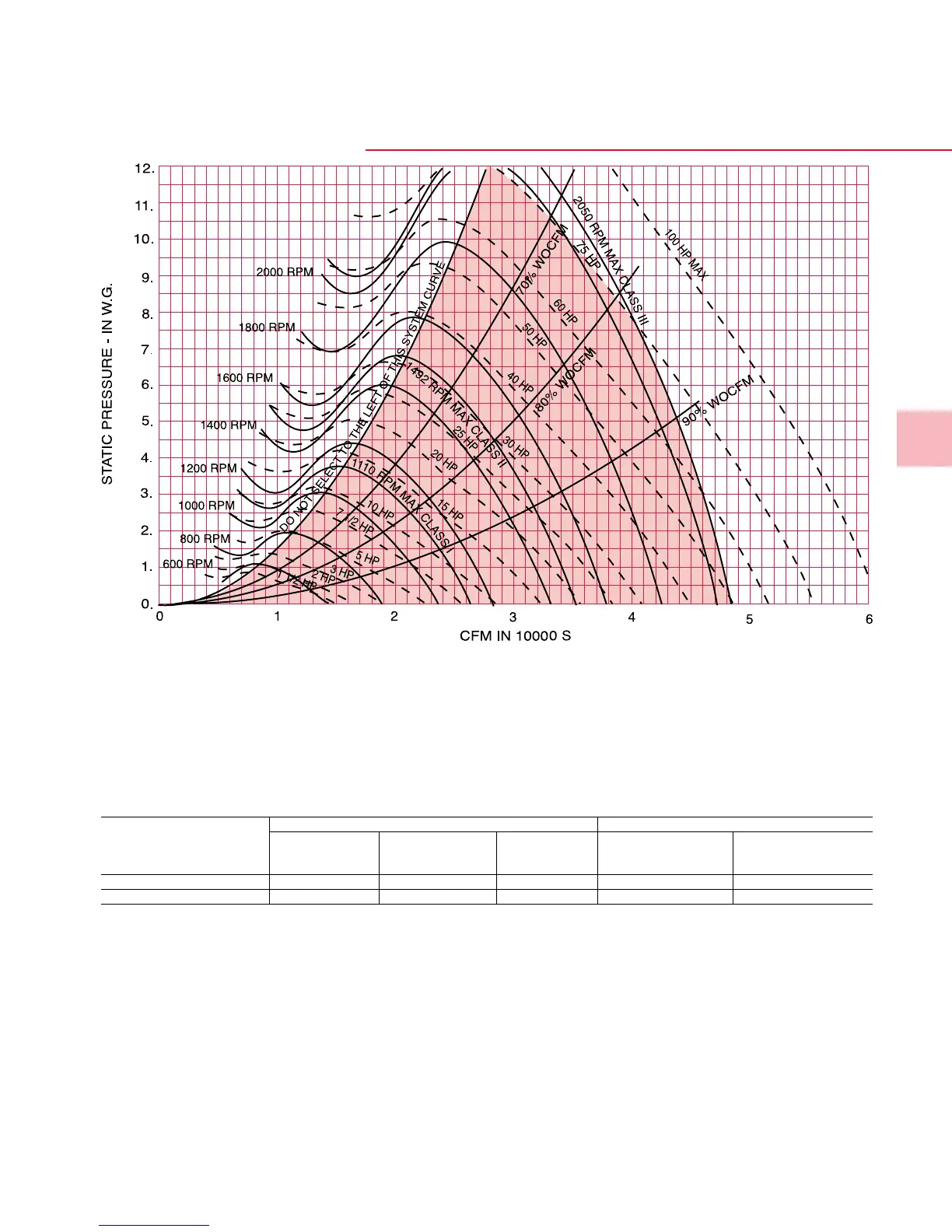

Standard fans can be selected ONLY in the shaded area.
Thrust restrains are to be used with fans Class 3 or motors 40 hp and up.
Minimum and Maximum Motor HP Ranges
Q Fan Size 40” Super Q Fan Size 40”
Min - Max Min - Max Min - Max Min - Max Min - Max
Motor HP Motor HP Motor HP Motor HP Motor HP
Class 1 Class 2 Class 3 Class 1 Class 2
Arrangement 9 1.5 - 15 10 - 40 30 - 50 1.5 - 15 10 - 40
Arrangement 1 1.5 - 15 10 - 40 30 - 75 NA NA
____
Fan RPM Line
- - - Motor HP Line
