Trane Fan - Size 49 Fan Performance

43
Performance
Data

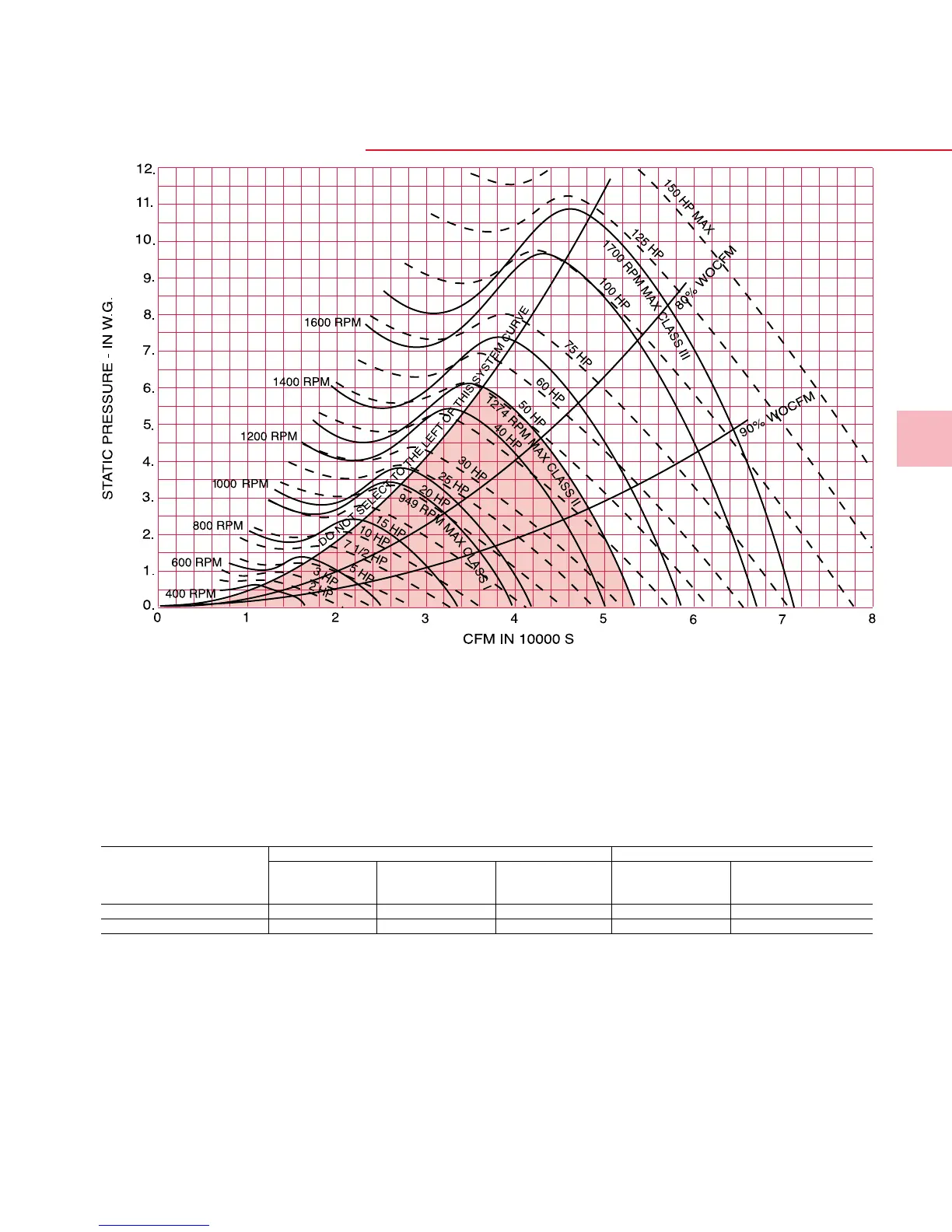

Q Fan
Size 49
Standard fans can be selected ONLY in the shaded area.
Thrust restrains are to be used with fans Class 3 or motors 40 hp and up.
Super Q II fans are NOT available in size 49.
Horizontal fans only, for vertical units contact marketing in Lexington.
Minimum and Maximum Motor HP Ranges
Q Fan Size 49” Super Q Fan Size 49”
Min - Max Min - Max Min - Max Min - Max Min - Max
Motor HP Motor HP Motor HP Motor HP Motor HP
Class 1 Class 2 Class 3 Class 1 Class 2
Arrangement 9 2 - 20 20 - 50 — NA NA
Arrangement 1 ——— NA NA
____
Fan RPM Line
- - - Motor HP Line
