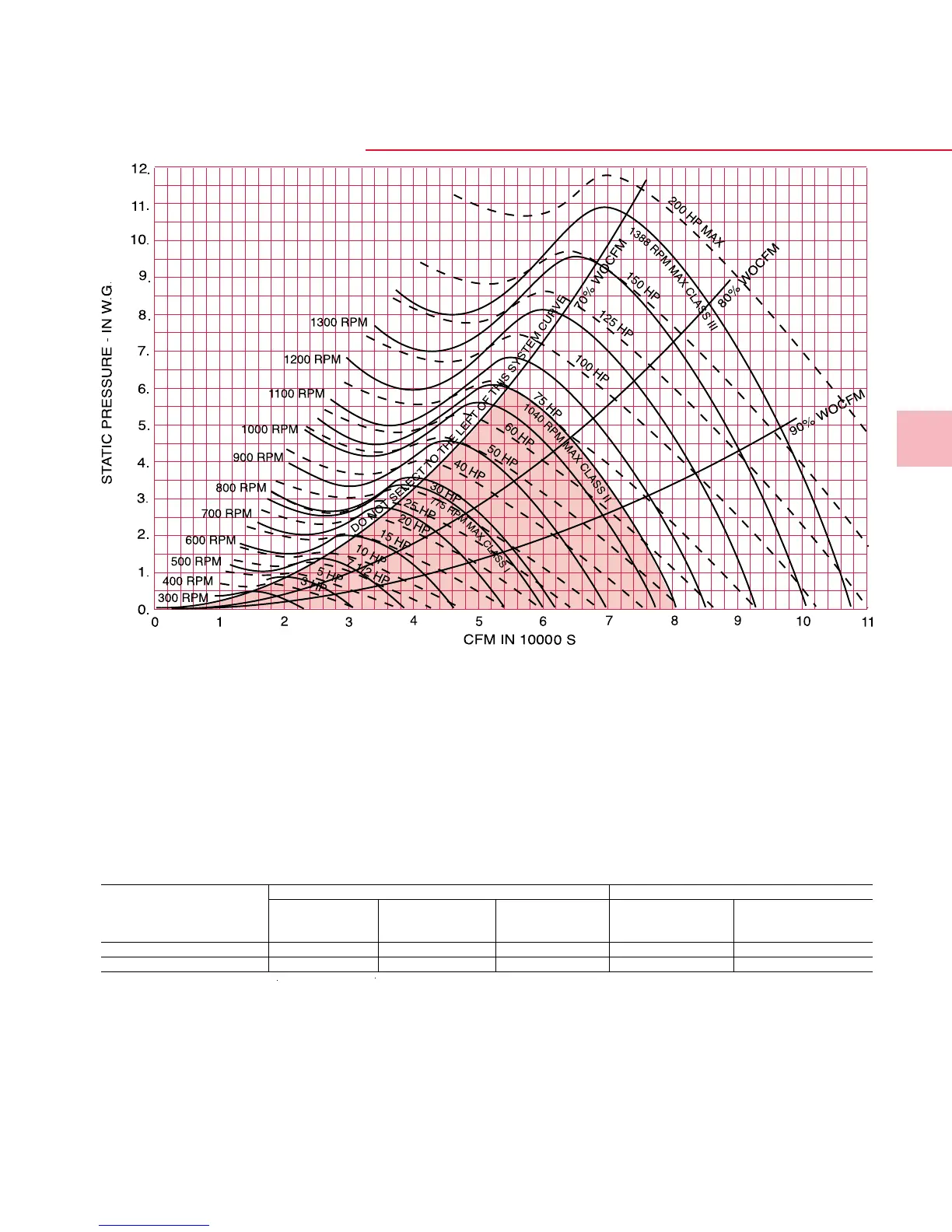

Performance
Data
Q Fan
Size 60
Standard fans can be selected ONLY in the shaded area.
Thrust restrains are to be used with fans Class 3 or motors 40 hp and up.
Super Q fans are NOT available in size 60.
Horizontal fans only, for vertical units contact marketing in Lexington.
Minimum and Maximum Motor HP Ranges
Q Fan Size 60” Super Q Fan Size 60”
Min - Max Min - Max Min - Max Min - Max Min - Max
Motor HP Motor HP Motor HP Motor HP Motor HP
Class 1 Class 2 Class 3 Class 1 Class 2
Arrangement 9 3 - 30 25 - 75 — NA NA
Arrangement 1 ——— NA NA
____
Fan RPM Line
- - - Motor HP Line
