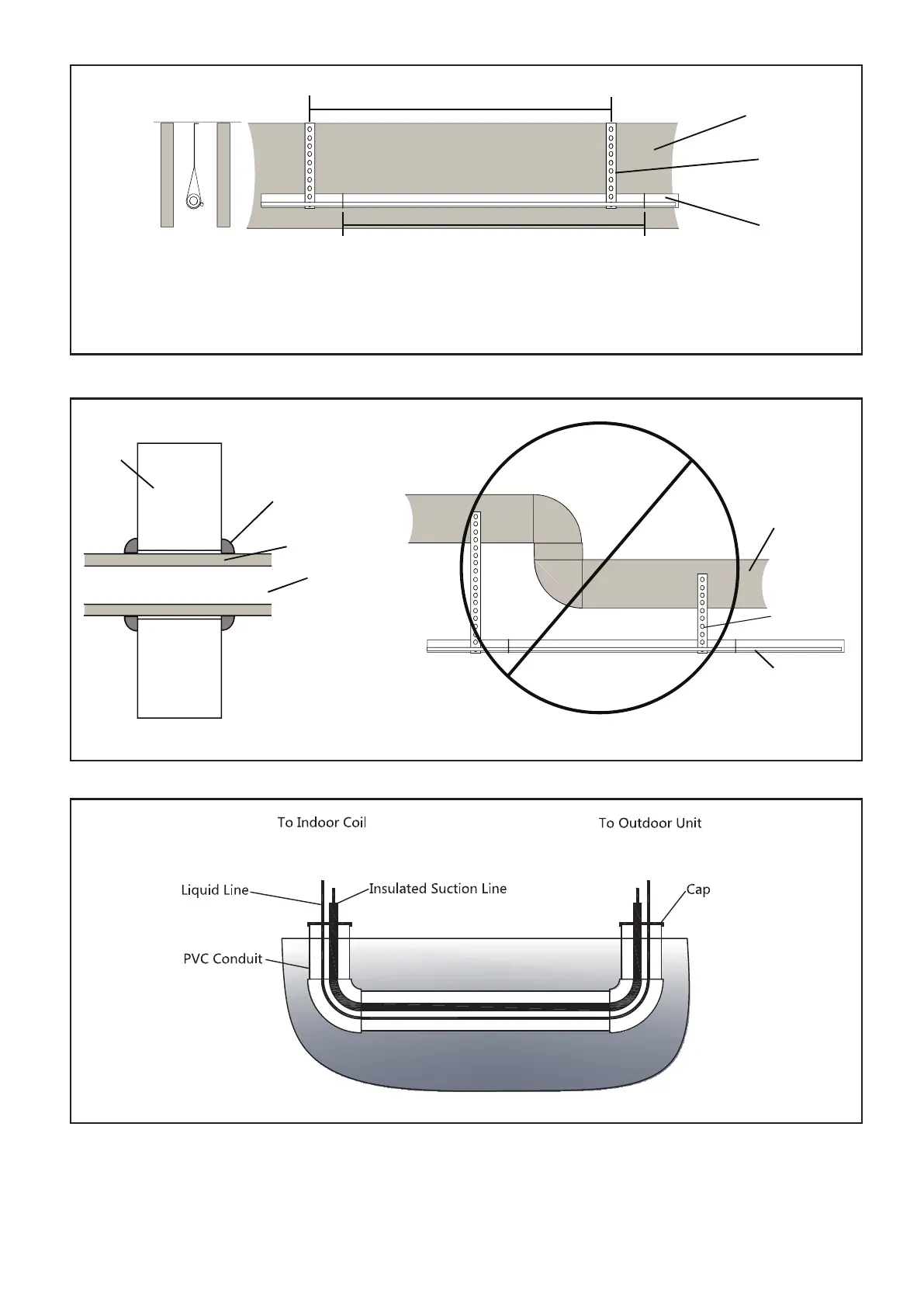

Isolation In Wall Spaces
Side View
Wall
Isolator
Line Set
8 Feet M aximum
8 Feet Maximum
Figure 13
Isolation Through Wall
DO NOT hang line sets from ductwork
Sealant
Insulation
Suction Line
Wall
Ductwork
Is
olator
Line Set
Figure 14
Figure 15
Secure Suction Line using isolators every 8 feet.
Secure Liqu id Line directly to Suction Line using
tape, wire, or other appropriate method every 8 feet.
